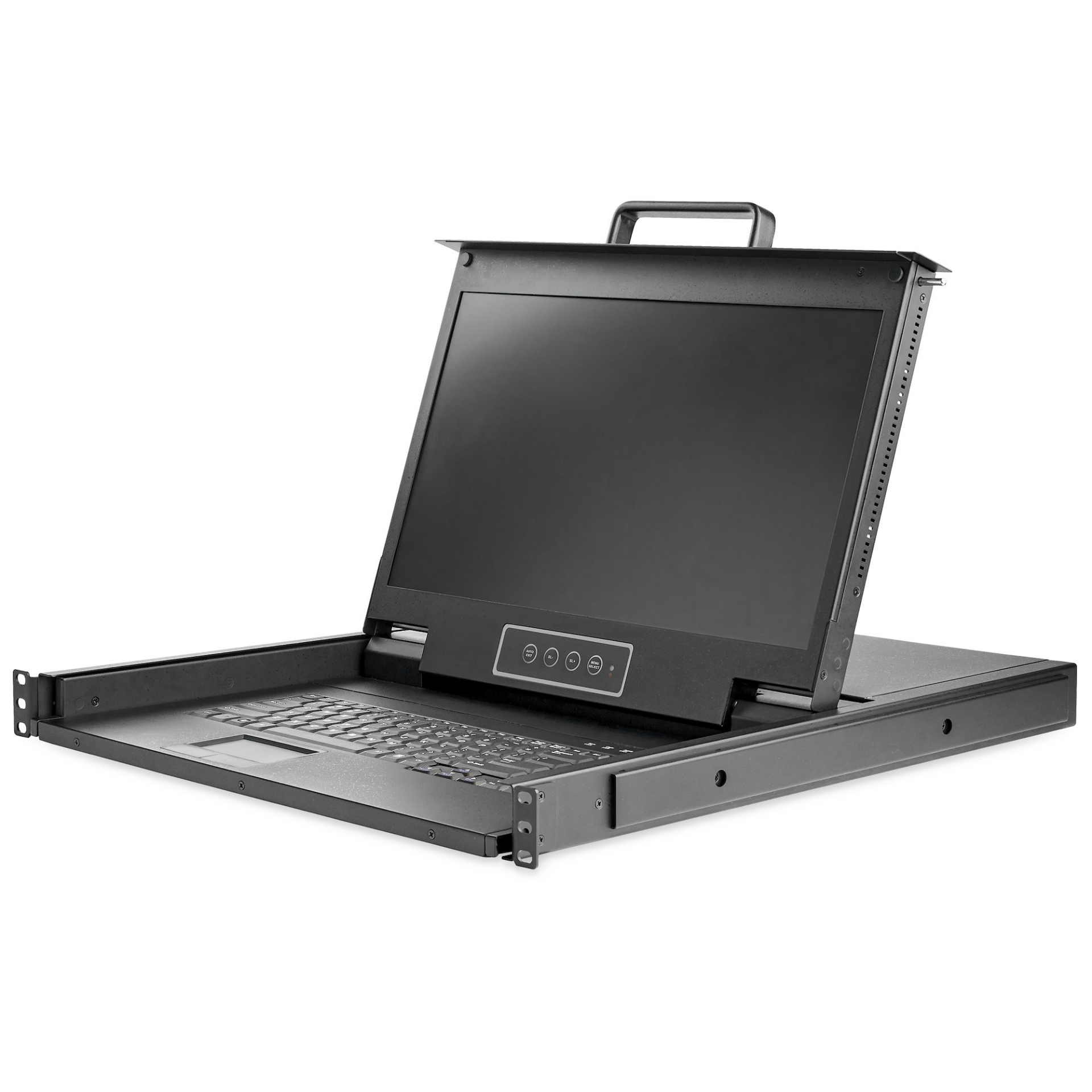

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF. Display diagonal: 43.9 cm (17.3"), Display resolution: 1920 x 1080 pixels, Display: TFT LCD. Video port type: VGA. Certification: CE, FCC, PSE, UL, REACH. Power consumption (typical): 13 W, AC adapter input voltage: 100 - 240 V, Input current: 1.5 A. Width: 483 mm, Height: 565 mm, Depth: 43 mm
Manufacturer: StarTech
SKU: RKCONS17HD
Vendor: Aspects
Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

High-Definition LCD Monitor

The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup

This single-port KVM console comes with everything you need to set up:

• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws

Cost Effective Solution

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€1006.80 incl tax
Lowest price in the last 30 days: $1,006.80
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Control your server or KVM switch from a centralized HD KVM console

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.

High-Definition LCD Monitor

The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.

Clutter-Free Monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Simple Setup

This single-port KVM console comes with everything you need to set up:

• 1 Audio Cable
• 1 Set of KVM Cables (VGA)
• 2 Rear Mounting Brackets
• M5 Cage Nuts and Screws

Cost Effective Solution

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display.

StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Weight & dimensions
Width483 mm
Height565 mm
Depth43 mm
Weight11.2 kg
Mounting depth (min)51 cm
Mounting depth (max)85 cm
Logistics data
Master (outer) case width615 mm
Master (outer) case length765 mm
Master (outer) case height185 mm
Products per master (outer) case1 pc(s)
Packaging data
Package weight16 kg
Package width615 mm
Package depth765 mm
Package height185 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)13 W
AC adapter input voltage100 - 240 V
Input current1.5 A
Certificates
CertificationCE, FCC, PSE, UL, REACH
Technical details
MaterialSteel
Mean time between failures (MTBF)50000 h
Product colourBlack
Operating relative humidity (H-H)10 - 80%
Rack mountingYes
Audio supportNo
Daisy chainNo
IP controlNo
LED indicatorsPower, Status
Cable length1.8 m
Compliance certificatesRoHS
Rack capacity1U
Ports & interfaces
Video port typeVGA
Display
Display diagonal43.9 cm (17.3")
Display resolution1920 x 1080 pixels
DisplayTFT LCD
Display brightness300 cd/m²
Contrast ratio (typical)800:1
Viewing angle, horizontal170°
Viewing angle, vertical170°
Pixel pitch0.1989 x 0.1989 mm
Aspect ratio16:9
Display typeLCD
Display number of colours262144 colours
Colour depth6 bit
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
Quick installation guideYes
Keyboard
Built-in touchpadYes
*
*
*
Products specifications
Weight & dimensions
Width483 mm
Height565 mm
Depth43 mm
Weight11.2 kg
Mounting depth (min)51 cm
Mounting depth (max)85 cm
Logistics data
Master (outer) case width615 mm
Master (outer) case length765 mm
Master (outer) case height185 mm
Products per master (outer) case1 pc(s)
Packaging data
Package weight16 kg
Package width615 mm
Package depth765 mm
Package height185 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)13 W
AC adapter input voltage100 - 240 V
Input current1.5 A
Certificates
CertificationCE, FCC, PSE, UL, REACH
Technical details
MaterialSteel
Mean time between failures (MTBF)50000 h
Product colourBlack
Operating relative humidity (H-H)10 - 80%
Rack mountingYes
Audio supportNo
Daisy chainNo
IP controlNo
LED indicatorsPower, Status
Cable length1.8 m
Compliance certificatesRoHS
Rack capacity1U
Ports & interfaces
Video port typeVGA
Display
Display diagonal43.9 cm (17.3")
Display resolution1920 x 1080 pixels
DisplayTFT LCD
Display brightness300 cd/m²
Contrast ratio (typical)800:1
Viewing angle, horizontal170°
Viewing angle, vertical170°
Pixel pitch0.1989 x 0.1989 mm
Aspect ratio16:9
Display typeLCD
Display number of colours262144 colours
Colour depth6 bit
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
Quick installation guideYes
Keyboard
Built-in touchpadYes
