Sorry - this product is no longer available

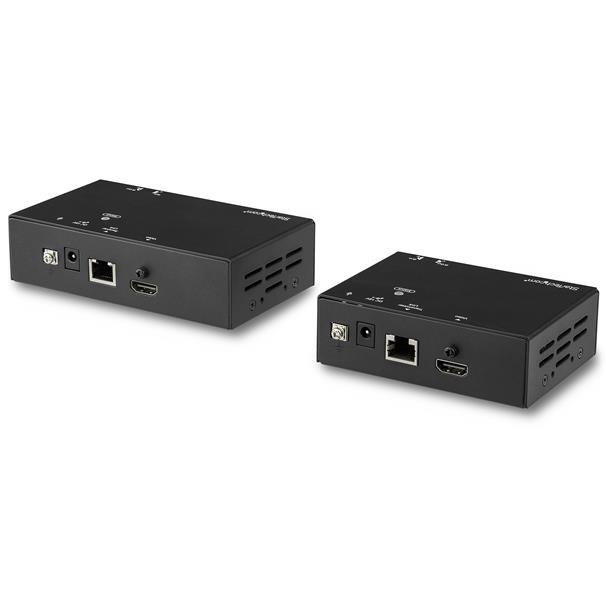

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.)

StarTech.com HDMI Over CAT6 Extender - Power Over Cable - Up to 70 m (230 ft.). Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, Operating voltage: 18 V, Input current: 0.6 A. Width: 76 mm, Depth: 293 mm, Height: 26 mm. Package width: 206 mm, Package depth: 280 mm, Package height: 62 mm
Manufacturer: StarTech
SKU: ST121HDBT20S
Vendor: Aspects
Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 35 m (115 ft.) and 1080p 60Hz at 70 m (230 ft.)

This HDMI® over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 70 m (230 ft.) away.

Get 4K at 60Hz from 35 m (115 ft.) away

This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source.

With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

Simplify your setup

The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€291.97 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Extend HDMI over CAT5e/CAT6 cabling to a remote location, with support for 4K 60Hz at 35 m (115 ft.) and 1080p 60Hz at 70 m (230 ft.)

This HDMI® over CAT6 extender transmits your HDMI audio/video signal to a remote location up to 70 m (230 ft.) away.

Get 4K at 60Hz from 35 m (115 ft.) away

This HDMI over CAT6 extender maintains your Ultra HD 4K picture quality, even at 35 m (115 ft.) away from your video source. If you're not running 4K video, this extender supports High-Definition 1080p 60Hz and lower resolutions at even greater distances, up to 70 m (230 ft.) from your HDMI source.

With full support for your HDMI 2.0 equipment, including 4K resolution at 60Hz, this extender can transmit at a bandwidth of up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail. For smoother video and color transitions, the extender offers 4:4:4 chroma subsampling via visually lossless compression, meaning every pixel gets its own unique color.

With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.

Simplify your setup

The HDMI Extender Over CAT6 offers a hassle-free solution for your digital signage project. The extender only requires a single CAT5e or CAT6 cable, so you can extend an HDMI signal using your building's existing infrastructure. Plus, this HDMI extender supports Power Over Cable (POC), which means you'll only need one power adapter connected to either your transmitter or receiver. Mounting hardware is also included for discreet, professional installation.

The ST121HDBT20S is TAA compliant and backed by a 2-year StarTech.com warranty with free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
LED indicatorsStatus
Supported video modes720p, 1080p
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
MaterialAluminium
Daisy chainNo
Rubber feetYes
Product colourBlack
CertificationCE, FCC, TAA, REACH
Weight & dimensions
Width76 mm
Depth293 mm
Height26 mm
Weight1.6 kg
Logistics data
Master (outer) case width323 mm
Master (outer) case length410 mm
Master (outer) case height275 mm
Products per master (outer) case6 pc(s)
Packaging data
Package width206 mm
Package depth280 mm
Package height62 mm
Package weight800 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Power
AC input voltage100 - 240 V
Operating voltage18 V
Input current0.6 A
Output current1 A
External power adapterYes
Power plug typeType M
Technical details
Compliance certificatesRoHS
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Remote (IR) input2
Remote (IR) output2
DC-in jackYes
Packaging content
AC adapter includedYes
Included power plug typesANZ, EU, JP, NA, UK
Quick start guideYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes
*
*
*
Products specifications
Features
TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
LED indicatorsStatus
Supported video modes720p, 1080p
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
MaterialAluminium
Daisy chainNo
Rubber feetYes
Product colourBlack
CertificationCE, FCC, TAA, REACH
Weight & dimensions
Width76 mm
Depth293 mm
Height26 mm
Weight1.6 kg
Logistics data
Master (outer) case width323 mm
Master (outer) case length410 mm
Master (outer) case height275 mm
Products per master (outer) case6 pc(s)
Packaging data
Package width206 mm
Package depth280 mm
Package height62 mm
Package weight800 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Power
AC input voltage100 - 240 V
Operating voltage18 V
Input current0.6 A
Output current1 A
External power adapterYes
Power plug typeType M
Technical details
Compliance certificatesRoHS
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs1
Remote (IR) input2
Remote (IR) output2
DC-in jackYes
Packaging content
AC adapter includedYes
Included power plug typesANZ, EU, JP, NA, UK
Quick start guideYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes
