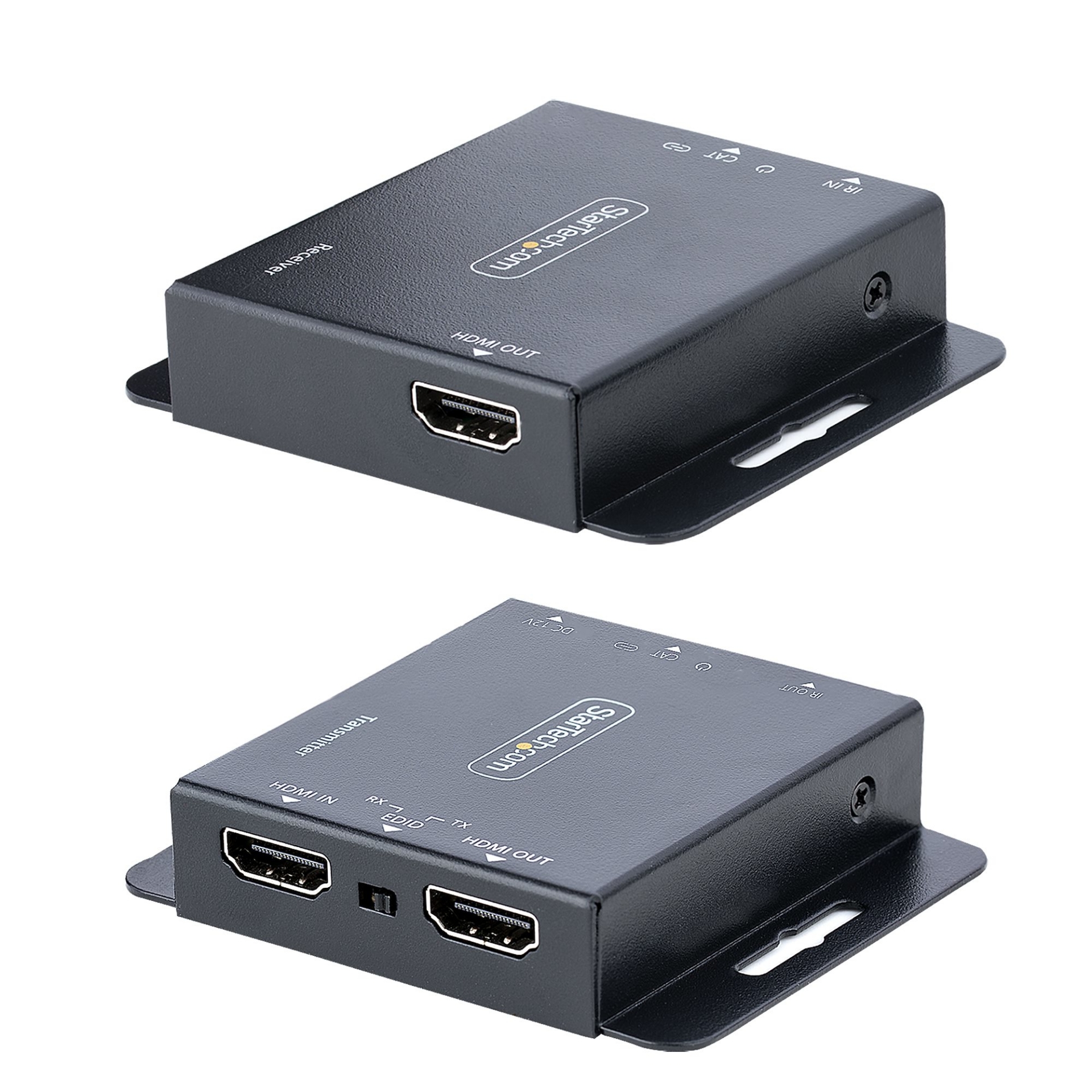

StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control

Be the first to review this product
StarTech.com 4K HDMI Extender over CAT6/CAT5 Ethernet Cable, 4K 30Hz or 1080p 60Hz Video Extender, HDMI over Ethernet Cable, HDMI Transmitter and Receiver Kit, IR Remote Control. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e, Cat6. Connectivity technology: Wired. AC input voltage: 100 - 240 V, Operating voltage: 12 V, Input current: 0.3 A. Width: 69 mm, Depth: 57 mm, Height: 17 mm. Package width: 200 mm, Package depth: 116 mm, Package height: 77 mm
Manufacturer: StarTech
SKU: EXTEND-HDMI-4K40C6P1
Vendor: Aspects
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.

4K Picture Quality

This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.

Simplify your setup

With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.

Easy Installation

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.

EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€119.46 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
4K 30Hz 130ft | 1080p 230ft | IR Extension | Power over Cable

This HDMI® Extender over CAT6 lets you transmit a 4K 30Hz HDMI® audio video signal up to 130ft (40m), or 230ft (70m) for 1080p resolutions. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.

4K Picture Quality

This HDMI extender supports 7.1ch audio and resolutions of up to 4K at 30Hz (3840 x 2160) over a single CAT6/5e cable. The UHD HDMI Extender supports HDMI 1.4 and 4:4:4 chroma subsampling, which ensures a crystal-clear picture.

Simplify your setup

With support for Power over Cable (PoC), only one power, connected to the transmitter, is required to power both units of the transmitter and receiver kit. IR extension, using the included IR Blaster and Receiver, makes controlling a source device from a remote location easy.

Easy Installation

The 4K HDMI Extender over Ethernet cable has an HDMI output on the transmitter unit allowing the solution to be cascaded to other video extenders or for use to a local display. Plug-and-play installation with no additional software or drivers required. The metal housing and built-on mounting brackets allow for professional installation options, ideal for digital signage, boardrooms, and tradeshow applications.

EXTEND-HDMI-4K40C6P1 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
TypeAV transmitter & receiver
Maximum resolution3840 x 2160 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance70 m
Maximum refresh rate60 Hz
Audio output channels7.1 channels
LED indicatorsLink, Power
Bandwidth10.2 Gbit/s
HDCPYes
MaterialMetal
Rack mountingNo
Daisy chainYes
HDCP version1.4
Product colourBlack
Weight & dimensions
Width69 mm
Depth57 mm
Height17 mm
Weight130 g
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width410 mm
Master (outer) case length420 mm
Master (outer) case height370 mm
Products per master (outer) case30 pc(s)
Packaging data
Package width200 mm
Package depth116 mm
Package height77 mm
Package weight500 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Power
AC input voltage100 - 240 V
Operating voltage12 V
Input current0.3 A
Output current1 A
Power consumption (typical)0.1 W
External power adapterYes
Power plug typeType M
Technical details
Compliance certificatesCE, RoHS
Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2
Remote (IR) input1
Remote (IR) output1
DC-in jackYes
Packaging content
AC adapter includedYes
IR blaster includedYes
IR receiver includedYes
*
*
*
