Sorry - this product is no longer available

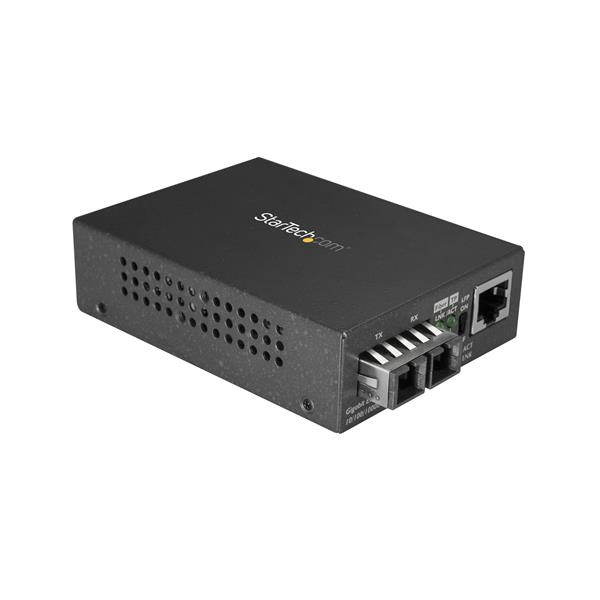

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-TX, 1000Base-T, Converter output interface: 100Base-LX. Maximum transfer distance: 10000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Link, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 100 - 240 V, Input current: 0.5 A, Output voltage: 5 V
Manufacturer: StarTech
SKU: MCMGBSCSM10
Vendor: Aspects
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€90.19 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber

This fiber media converter converts and extends a Gigabit Ethernet (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.

Extend your GbE network cost-effectively

The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
InternalNo
LED indicatorsActivity, Link, Power
Product colourBlack
Weight & dimensions
Width105 mm
Depth70 mm
Height26 mm
Weight196 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width138 mm
Package depth285 mm
Package height66 mm
Package weight560 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%
Power
Input voltage100 - 240 V
Input current0.5 A
Output voltage5 V
Output current2.6 A
External power adapterYes
Power plug typeType N
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface10Base-T, 100Base-TX, 1000Base-T
Converter output interface100Base-LX
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Jumbo frames supportYes
Jumbo frames9000
Auto MDI/MDI-XYes
Store-and-forwardYes
Duplex systemFull
Performance
Maximum transfer distance10000 m
Wavelength1310 nm
Wavelength-division multiplexing (WDM)No
Fiber mode structureSingle-mode
Mean time between failures (MTBF)50000 h
Packaging content
AC adapter includedYes
Quick installation guideYes
*
*
*
Products specifications
Features
InternalNo
LED indicatorsActivity, Link, Power
Product colourBlack
Weight & dimensions
Width105 mm
Depth70 mm
Height26 mm
Weight196 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width138 mm
Package depth285 mm
Package height66 mm
Package weight560 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%
Power
Input voltage100 - 240 V
Input current0.5 A
Output voltage5 V
Output current2.6 A
External power adapterYes
Power plug typeType N
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface10Base-T, 100Base-TX, 1000Base-T
Converter output interface100Base-LX
Networking standardsIEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Jumbo frames supportYes
Jumbo frames9000
Auto MDI/MDI-XYes
Store-and-forwardYes
Duplex systemFull
Performance
Maximum transfer distance10000 m
Wavelength1310 nm
Wavelength-division multiplexing (WDM)No
Fiber mode structureSingle-mode
Mean time between failures (MTBF)50000 h
Packaging content
AC adapter includedYes
Quick installation guideYes
