Picture of StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km

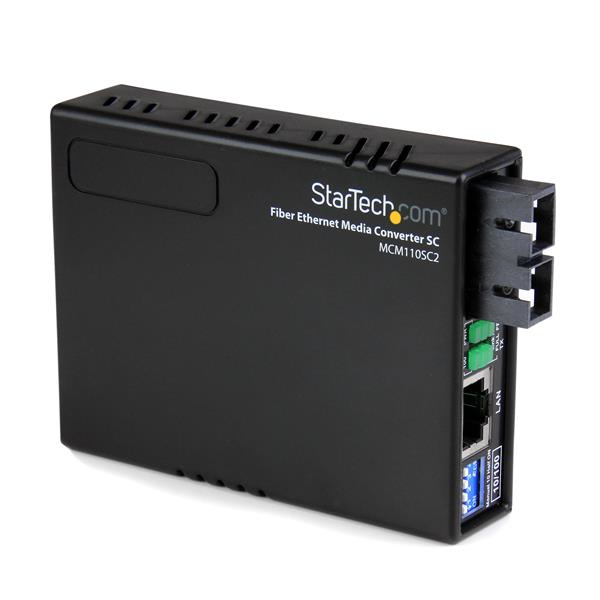

StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km

Name: StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km
SKU: MCM110SC2EU
Price: 51.80 EUR
Availability: InStock

Be the first to review this product

StarTech.com 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100BASE-FX, 100Base-TX, 10Base-T, Networking standards: IEEE 802.1Q, IEEE 802.3, IEEE 802.3u. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: Activity, Link, Power, Product colour: Black, Housing material: Plastic. Fiber optic connector: SC, Connectivity technology: Wired. Input voltage: 230 V, Output voltage: 12 V, Output current: 0.2 A

Manufacturer: StarTech

SKU: MCM110SC2EU

Vendor: Aspects

The MCM110SC2EU 10/100 Multi Mode Fiber Ethernet Media Converter (SC, 2 km) creates a cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals, to extend an Ethernet network connection over an SC-terminated multimode fiber backbone.

The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.

This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage
- Improve network scalability by increasing the distances between network points by up to 2km (Multi-mode)
- Compact, lightweight enclosure is easily mounted or placed into any location with little to no configuration needed
- Provides increased bandwidth and high data throughput by eliminating network bottlenecks and congestion

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€51.80 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Features
Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Housing material	Plastic
Weight & dimensions
Width	75 mm
Depth	95 mm
Height	20 mm
Weight	90.5 g
Logistics data
Harmonized System (HS) code	85176990
Packaging data
Package width	145 mm
Package depth	175 mm
Package height	65 mm
Package weight	300 g
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Power
Input voltage	230 V
Output voltage	12 V
Output current	0.2 A
Power over Ethernet (PoE)	No
Power plug type	Type M
Certificates
Compliance certificates	RoHS
Certification	CE, FCC
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
DC-in jack	Yes
Network
Maximum data transfer rate	100 Mbit/s
Converter input interface	100BASE-FX, 100Base-TX, 10Base-T
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10,100 Mbit/s
Jumbo frames support	Yes
Jumbo frames	9000
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Duplex system	Full, Half
Performance
Maximum transfer distance	2000 m
Wavelength	1310 nm
Wavelength-division multiplexing (WDM)	No
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	65000 h
Packaging content
AC adapter included	Yes
Manual	Yes
