Sorry - this product is no longer available

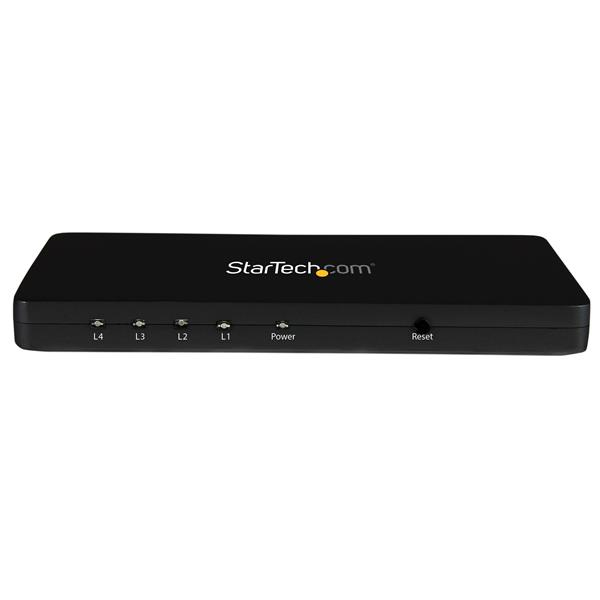

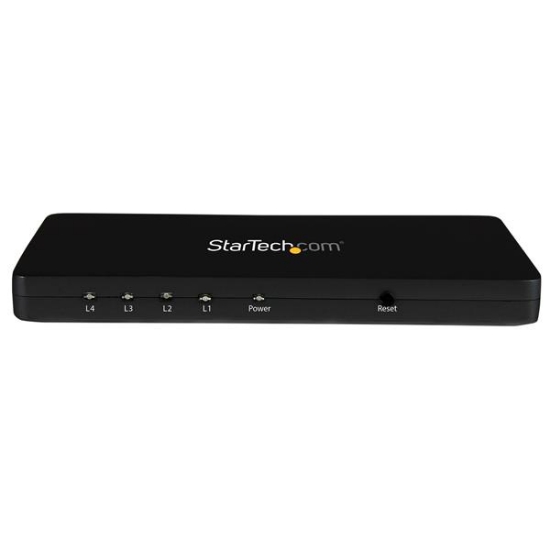

StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz

Be the first to review this product
StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Aluminium. AC input voltage: 100 - 240 V, Input current: 0.35 A, Output voltage: 5 V. Width: 85 mm, Depth: 140 mm, Height: 12 mm. Package width: 300 mm, Package depth: 360 mm, Package height: 95 mm
Manufacturer: StarTech
SKU: ST124HD4K
Vendor: Aspects
Split an HDMI audio/video source on four separate HDMI displays simultaneously, with support for resolutions up to 4K

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€73.60 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Split an HDMI audio/video source on four separate HDMI displays simultaneously, with support for resolutions up to 4K

The ST124HD4K 4-port 4K HDMI splitter lets you share four HDMI displays or projectors with an HDMI-enabled audio / video source devices, such as a computer, Blu-ray player or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
Product colourBlack
Housing materialAluminium
Maximum resolution3840 x 2160 pixels
Maximum operating distance5 m
Maximum refresh rate30 Hz
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes720p, 1080p, 2160p
LED indicatorsActivity, Power
CertificationCE, FCC, REACH
Weight & dimensions
Width85 mm
Depth140 mm
Height12 mm
Weight280 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width300 mm
Package depth360 mm
Package height95 mm
Package weight530 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 90%
Power
AC input voltage100 - 240 V
Input current0.35 A
Output voltage5 V
Output current1 A
Power consumption (typical)5 W
Technical details
Audio supportYes
Supported audio channels7.1
Compliance certificatesRoHS
Ports & interfaces
Video port typeHDMI
Video out4x HDMI
HDMI version1.4
Video ports quantity4
Packaging content
ManualYes
AC adapter includedYes
Included power plug typesAU, EU, NA, UK
*
*
*
Products specifications
Features
Product colourBlack
Housing materialAluminium
Maximum resolution3840 x 2160 pixels
Maximum operating distance5 m
Maximum refresh rate30 Hz
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes720p, 1080p, 2160p
LED indicatorsActivity, Power
CertificationCE, FCC, REACH
Weight & dimensions
Width85 mm
Depth140 mm
Height12 mm
Weight280 g
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package width300 mm
Package depth360 mm
Package height95 mm
Package weight530 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 90%
Power
AC input voltage100 - 240 V
Input current0.35 A
Output voltage5 V
Output current1 A
Power consumption (typical)5 W
Technical details
Audio supportYes
Supported audio channels7.1
Compliance certificatesRoHS
Ports & interfaces
Video port typeHDMI
Video out4x HDMI
HDMI version1.4
Video ports quantity4
Packaging content
ManualYes
AC adapter includedYes
Included power plug typesAU, EU, NA, UK
