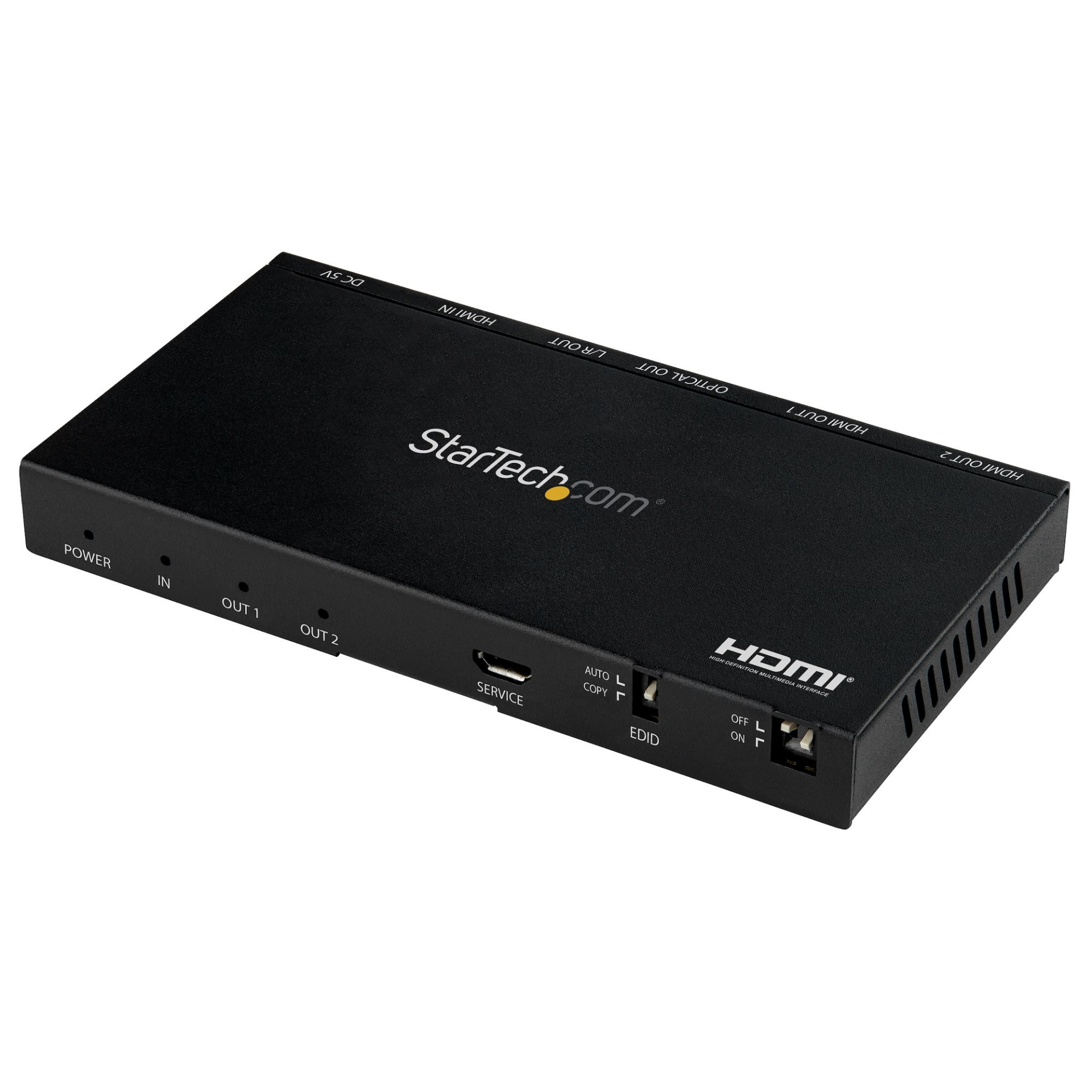

HDMI 2.0 Splitter | HDCP 2.2 | EDID Emulation | 7.1 Surround Sound | 2 Year Warranty
This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports True 4K at 60Hz
This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.
Widely Compatible
The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Width | 115 mm |
| Depth | 205 mm |
| Height | 65 mm |
| Weight | 355 g |
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case length | 425 mm |
| Master (outer) case width | 353 mm |
| Master (outer) case height | 350 mm |
| Package width | 114 mm |
| Package depth | 202 mm |
| Package height | 69 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| AC adapter input voltage | 100 - 240 V |
| Power consumption (typical) | 5 W |
| Certification | CE, FCC, RoHS |
| Compliance certificates | RoHS |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0b |
| Audio output | 3.5 mm |
| Digital audio optical out | 1 |
| Supported audio channels | 7.1 |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum refresh rate | 60 Hz |
