Gigabit Power, 10/100 Simplicity
- Connects up to 10x faster than Fast Ethernet for maximum performance†
- Up to 60% lower power consumption
- Auto power-down mode saves energy when port is unused
- Simple to combine Fast Ethernet and Gigabit devices in your network
- Plug-and-play installation delivers ease of use
Features

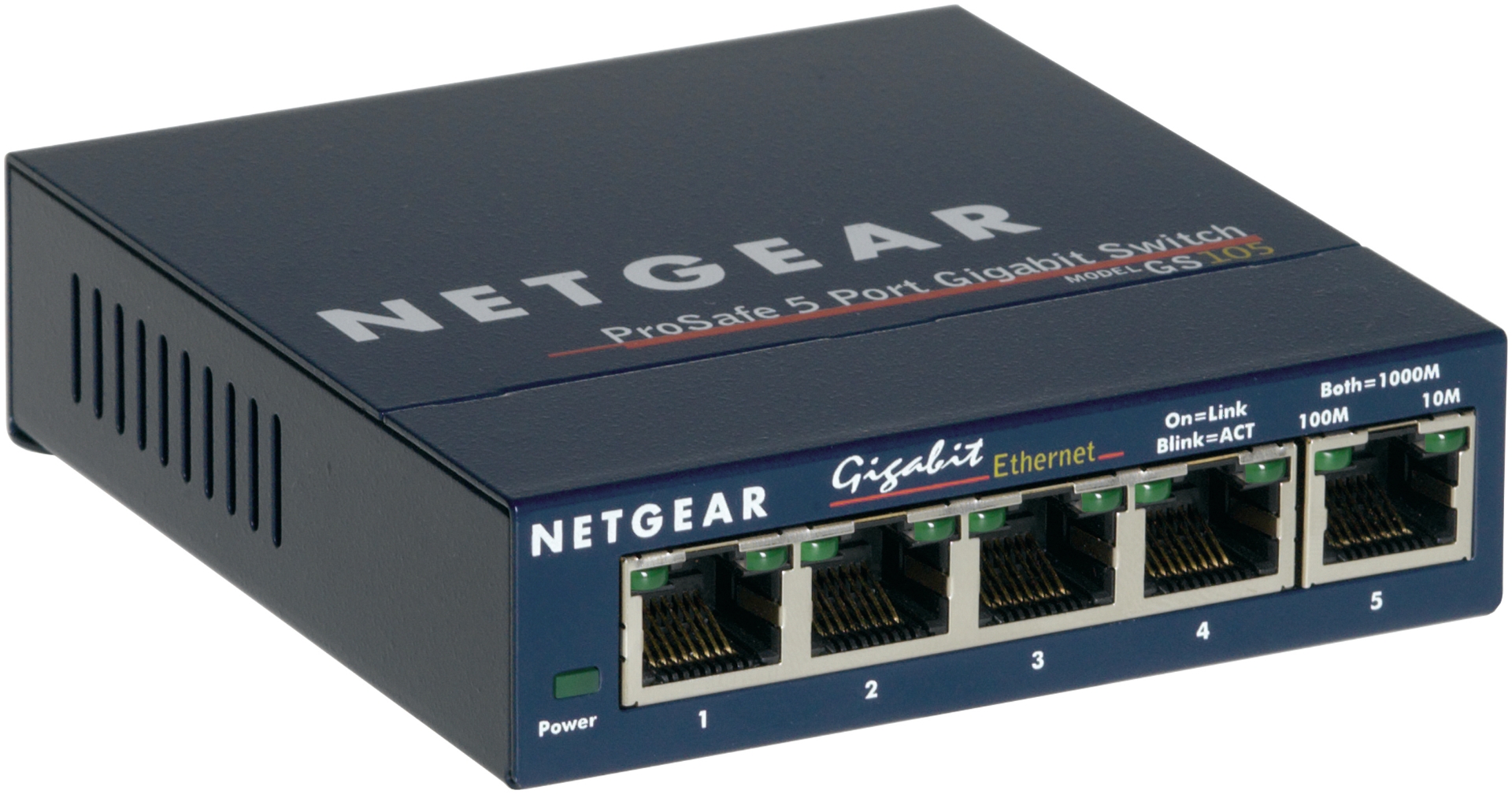

- ProSafe 5- and 8-port Gigabit Desktop Switches connect your network with the dual advantages of performance and convenience
- Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network
- Supports Windows® and Macintosh® platforms
- LEDs make it easy to monitor link, speed, and activity
- AutoUplink™ technology automatically adjusts for two common types of cables
- Compact metal case for desktop or wall mounting
NETGEAR Green
- Up to 60% lower power consumption
- Auto power-down mode saves energy�0;0;0;3; when port is unused
- Packaging manufactured with at least 80% recycled materials
Products specifications
| Width | 94 mm |
| Depth | 100 mm |
| Height | 27 mm |
| Weight | 261 g |
| Dimensions (W x D x H) (imperial) | 94 x 104.1 x 27.9 mm (3.7 x 4.1 x 1.1") |
| Harmonized System (HS) code | 85176990 |
| Included power plug types | EU |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Power source | DC |
| Power supply included | Yes |
| DC input voltage | 12 V |
| Input current | 1 A |
| Power consumption (typical) | 3.5 W |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u |
| 10G support | No |
| Copper ethernet cabling technology | 1000Base-T, 100Base-TX, 10Base-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Stackable | No |
| Product colour | Blue |
| LED indicators | Yes |
| Compatible operating systems | Windows, Linux, Mac OS |
| Buffer size | 128 KB |
| Mean time between failures (MTBF) | 3197945 h |
| Power over Ethernet (PoE) | No |
