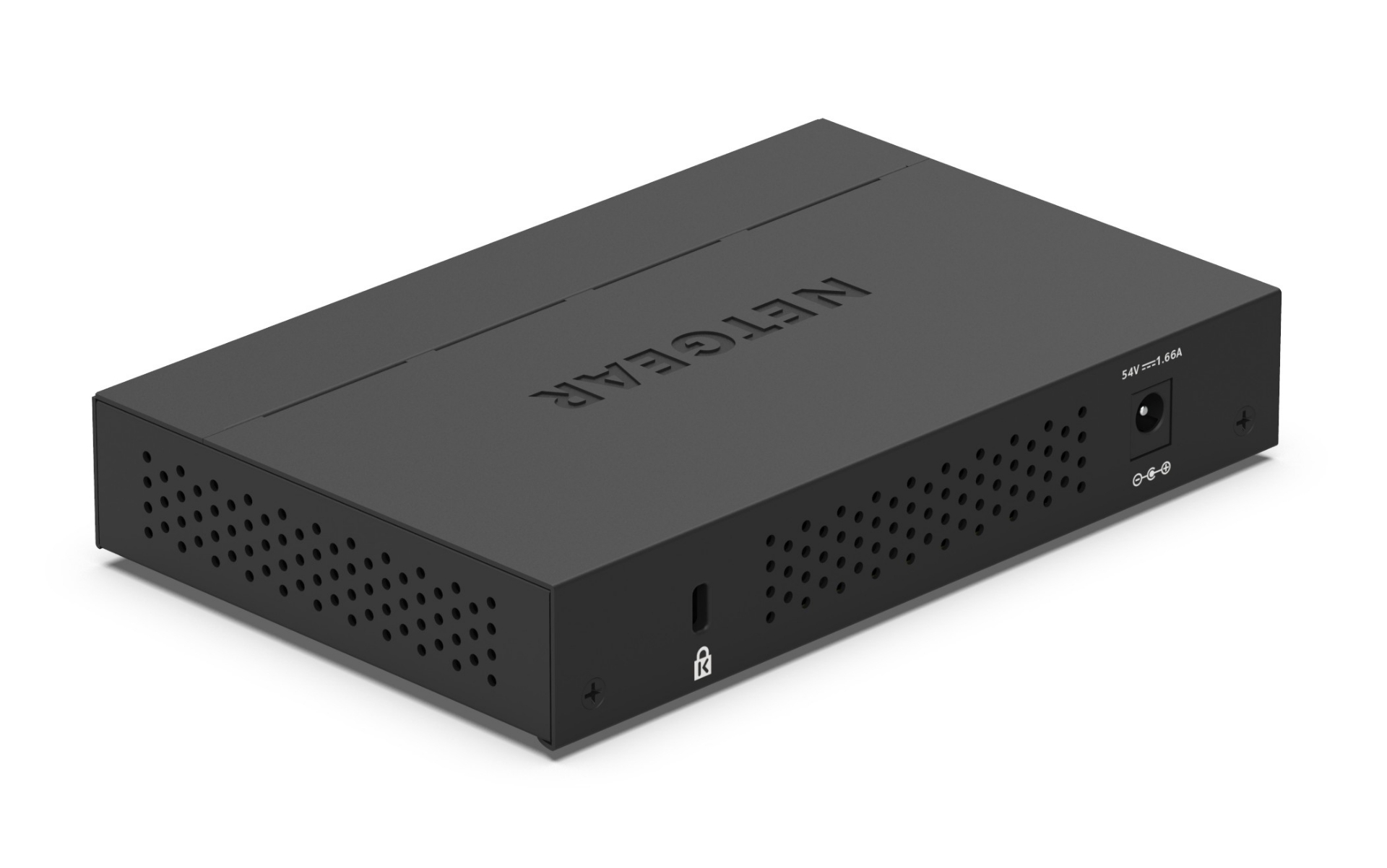

NETGEAR GS305PP Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Be the first to review this product
NETGEAR GS305PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 54 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Manufacturer: Netgear
SKU: GS305PP-300EUS
Vendor: Aspects
Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€105.49 incl tax
Lowest price in the last 30 days: $105.49
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Expanding Wired Connectivity for SOHO Networks

NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
Products specifications
Weight & dimensions
Width158 mm
Depth101 mm
Height29 mm
Weight410 g
Logistics data
Master (outer) case width237 mm
Master (outer) case length469 mm
Master (outer) case height306 mm
Master (outer) case gross weight8.52 kg
Products per master (outer) case6 pc(s)
Packaging data
Package width269 mm
Package depth73 mm
Package height215 mm
Package weight1.3 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Heat dissipation304 BTU/h
Power
Power sourceDC
DC input voltage54 V
Input current1.66 A
Power consumption (typical)2.89 W
Power consumption (max)88.89 W
Certificates
CertificationCE Mark, FCC Part 15 Class B, IC Class B, RCM, CCC, VCCI, CB, CE VD, CCC
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity4
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity5
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Full duplexYes
Auto MDI/MDI-XYes
Auto-sensingYes
Auto-negotiationYes
Cable length detectionYes
Data transmission
Switching capacity10 Gbit/s
Forwarding rate1.448 Mpps
MAC address table2000 entries
Latency (1 Gbps)2.4 µs
Jumbo frames supportYes
Jumbo frames9216
Packet buffer memory128 MB
Design
Rack mountingNo
Product colourBlack
Housing materialMetal
Reset buttonYes
LED indicatorsActivity, Link, PoE, Power
Wall mountableYes
Performance
Mean time between failures (MTBF)6710127 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget83 W
Packaging content
ManualYes
*
*
*
