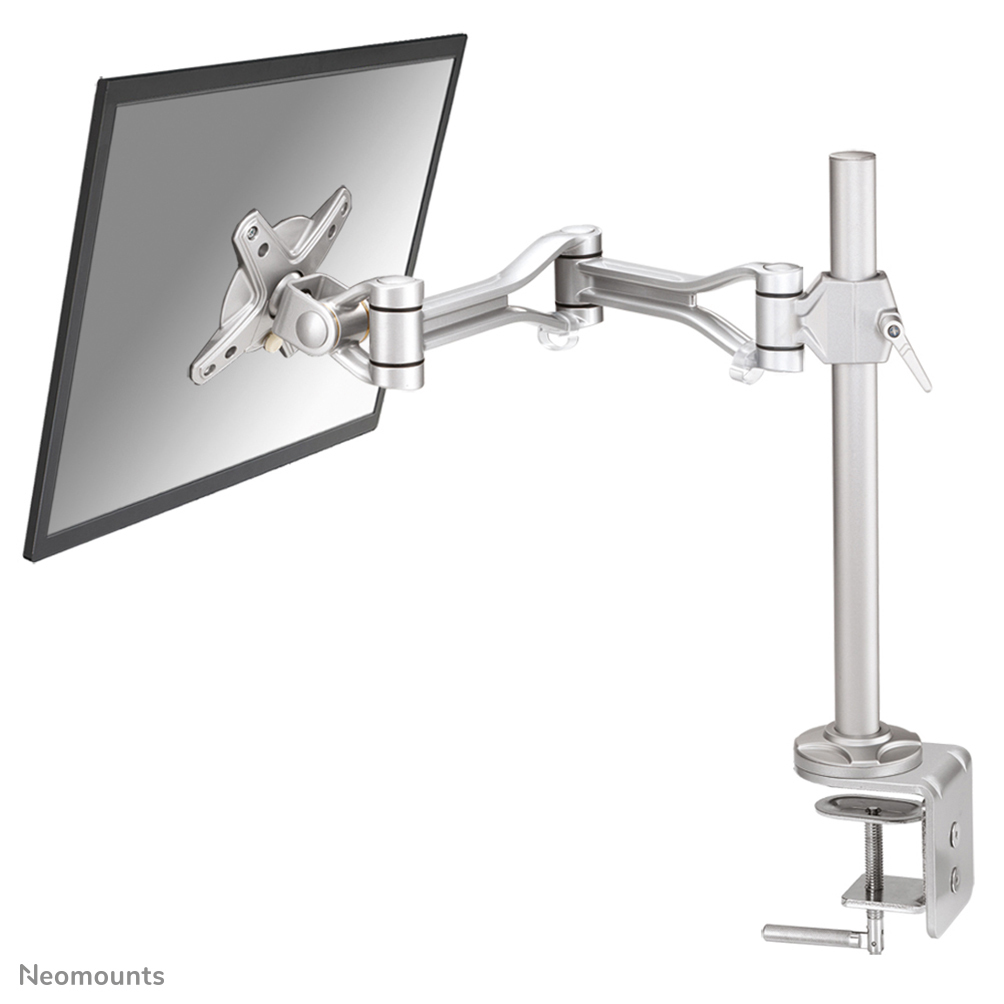

The Neomounts desk mount, model FPMA-D1030 is a tilt-, swivel and rotatable desk mount for flat screens up to 30". This mount is a great choice for space saving placement on desks using a desk clamp.
Neomounts versatile tilt (180°), rotate (180°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 40 centimetres. Depth adjustable from 16 to 55 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts FPMA-D1030 has three pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Height | 400 mm |
| Weight | 4.97 kg |
| Master (outer) case width | 470 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 11 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | Taiwan |
| Master (outer) case net weight | 9.9 kg |
| Harmonized System (HS) code | 83025000 |
| Products per pallet (EU) | 84 pc(s) |
| Package width | 450 mm |
| Package depth | 210 mm |
| Package height | 170 mm |
| Package weight | 4.5 kg |
| Housing material | Aluminium |
| Product colour | Silver |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 400 mm |
| Depth adjustment range | 160 - 550 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 180° |
| Swivelling | Yes |
| Swivel angle | 300° |
| Rotating | Yes |
| Angle of rotation | 180° |
| Maximum weight capacity | 10 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 1 |
| Maximum screen size | 76.2 cm (30") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (max) | 9 cm |
| Distance to the wall (min) | 16 cm |
| Distance to the wall (max) | 55 cm |
