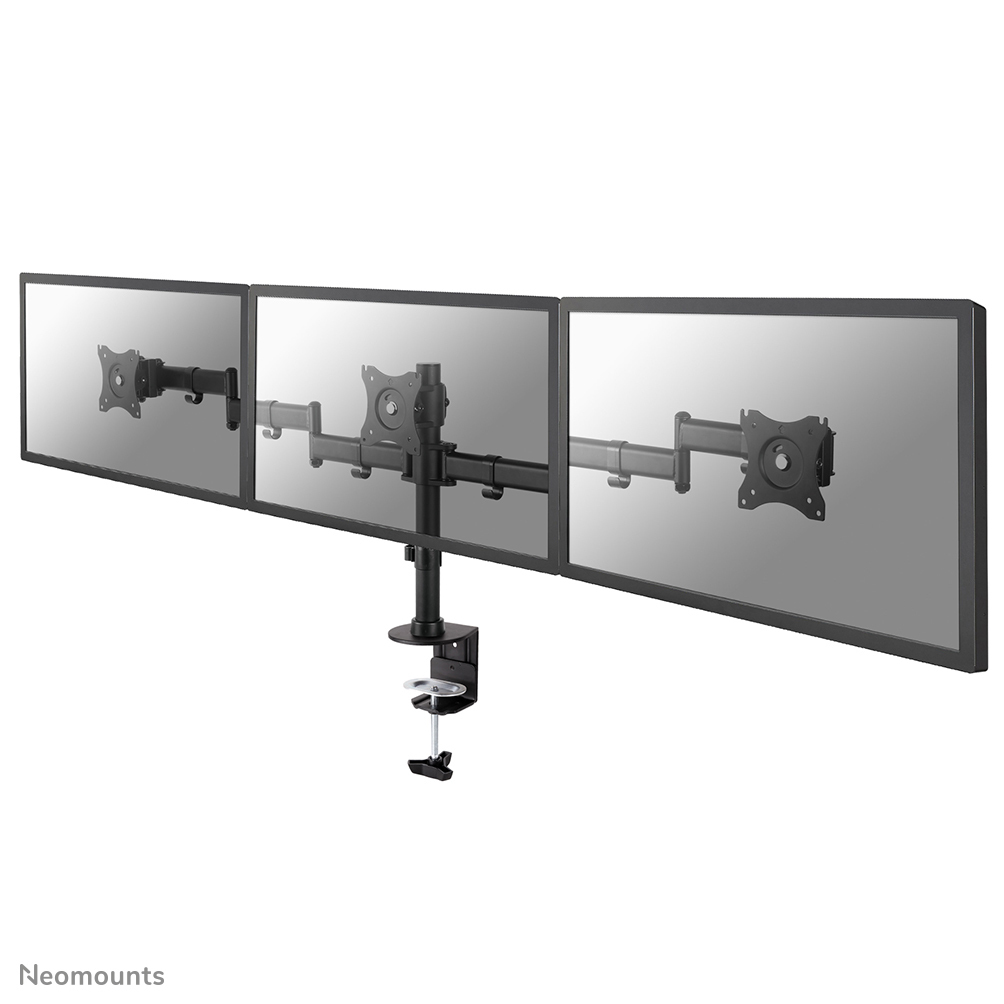

The Neomounts desk mount, model NM-D135D3BLACK is a tilt-, swivel and rotatable desk mount for 3 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.
Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 49,8 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.
Neomounts NM-D135D3BLACK has four pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg per screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Products specifications
| Depth | 729 mm |
| Height | 498 mm |
| Weight | 5.92 kg |
| Master (outer) case width | 630 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 285 mm |
| Master (outer) case gross weight | 15.8 kg |
| Products per master (outer) case | 2 pc(s) |
| Country of origin | China |
| Master (outer) case net weight | 12.8 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 40 pc(s) |
| Package width | 300 mm |
| Package depth | 135 mm |
| Package height | 620 mm |
| Package weight | 6.4 kg |
| Housing material | Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 498 mm |
| Depth adjustment range | 0 - 729 mm |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 90° |
| Swivelling | Yes |
| Swivel angle | 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 3 |
| Maximum weight capacity (per display) | 8 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Grommet |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 9 cm |
| Distance to the wall (min) | 5 cm |
| Distance to the wall (max) | 63 cm |
