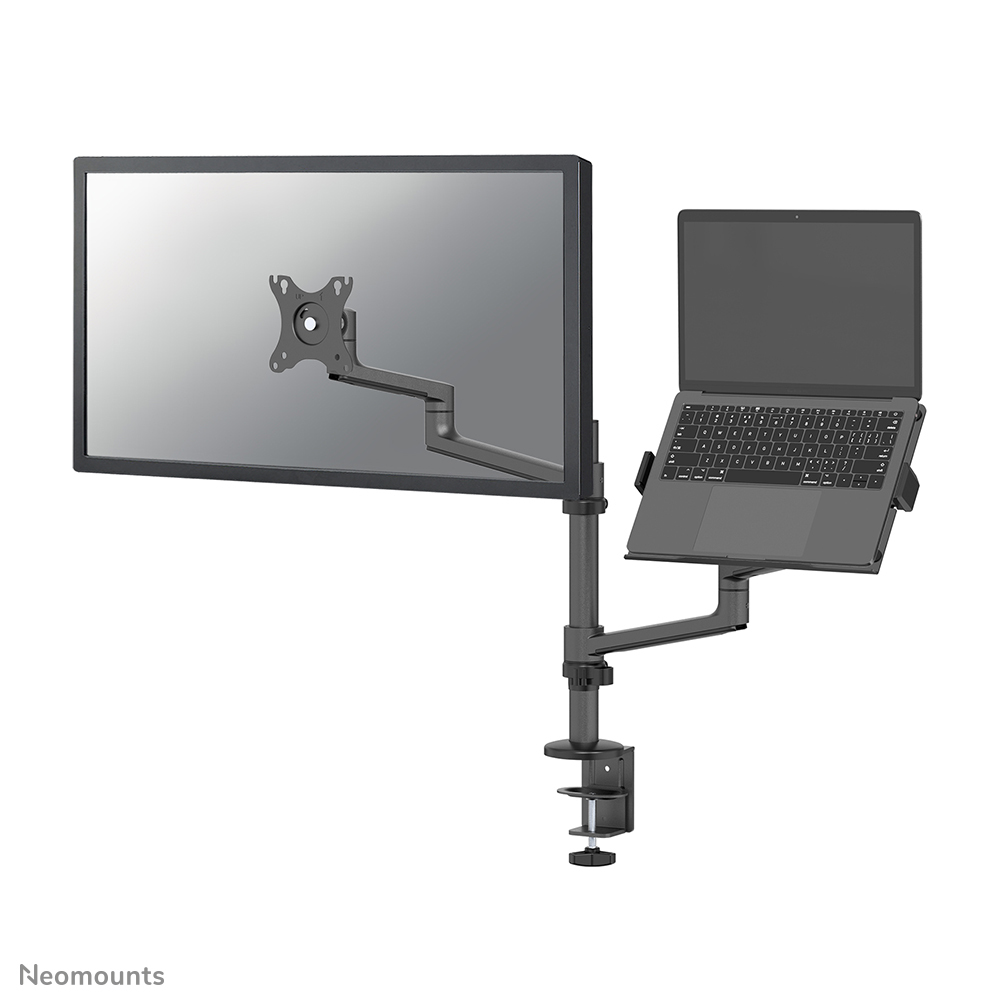

The Neomounts DS20-425BL2 NEXT Lite is a full motion desk mount for screens up to 27" and laptops up to 17,3" with a maximum weight capacity of respectively 8 and 5 kg. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal height and viewing angle for your screen and laptop. Additionally, the mount has manual height and depth adjustment to create the perfect working position.
Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS20-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS20-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.
Products specifications
| Lockable | No |
| Width | 966 mm |
| Depth | 494 mm |
| Height | 611 mm |
| Weight | 4.55 kg |
| Desk thickness (max) | 8 cm |
| Desk thickness (min) | 1 cm |
| Number of displays supported | 1 |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 473 mm |
| Master (outer) case height | 465 mm |
| Master (outer) case gross weight | 17.1 kg |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 13.7 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 63 pc(s) |
| Package net weight | 5.5 kg |
| Package width | 233 mm |
| Package depth | 150 mm |
| Package height | 442 mm |
| Package weight | 5.5 kg |
| Package type | Box |
| Mounting type | Desk |
| Country of origin | China |
| Product type | Laptop & monitor arm |
| Product colour | Black |
| Material | Steel |
| Minimum notebook screen size compatibility | 43.2 cm (17") |
| Maximum notebook screen size compatibility | 68.6 cm (27") |
| Maximum monitor screen size compatibility | 68.6 cm (27") |
| Number of devices supported | 1 |
| Maximum weight capacity | 8 kg |
| Mounting | Clamp/Grommet |
| Adjustable | Yes |
| Height adjustment | Yes |
| Height adjustment range | 275 - 555 mm |
| Width adjustment range | 0 - 332 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 66 - 398 mm |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -30 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Distance to the wall (max) | 49.4 cm |
| Distance to the wall (min) | 16.2 cm |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable management | Yes |
