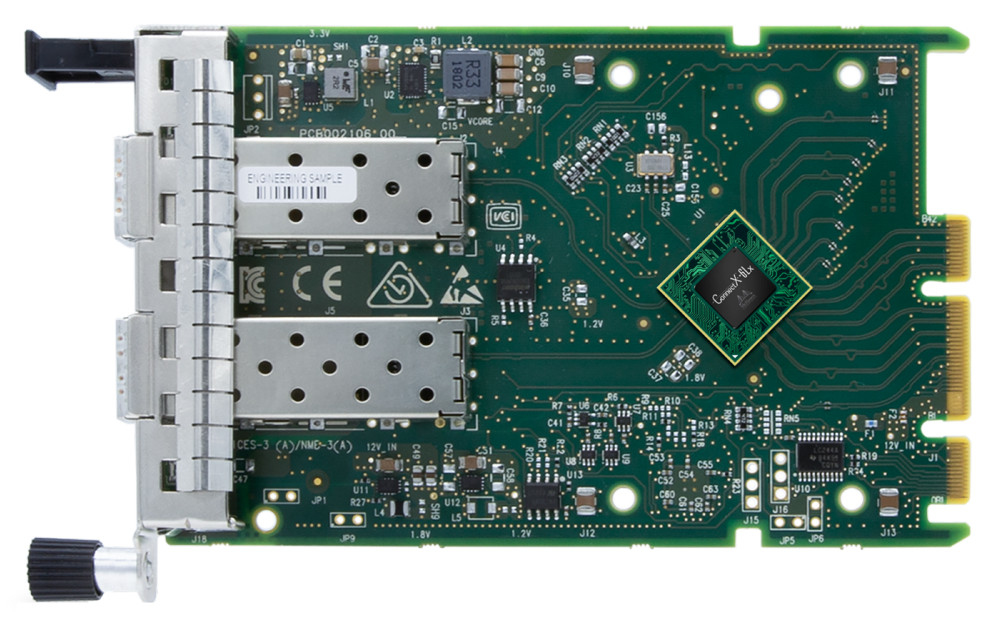

The ThinkSystem Mellanox ConnectX-6 Lx 10/25GbE SFP28 Ethernet Adapters are high performance 25Gb Ethernet network adapters that offer multiple network offloads including RoCE v2, NVMe over Ethernet and Open vSwitch.
This product guide provides essential presales information to understand the adapter and its key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ConnectX-6 Lx adapters and consider their use in IT solutions.
Products specifications
| Width | 76 mm |
| Depth | 115 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI version | 4.0 |
| Maximum data transfer rate | 25000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3by |
| Component for | Server |
| Internal | Yes |
| Certification | CB / cTUVus / CE FCC / VCCI / ICES / RCM RoHS |
