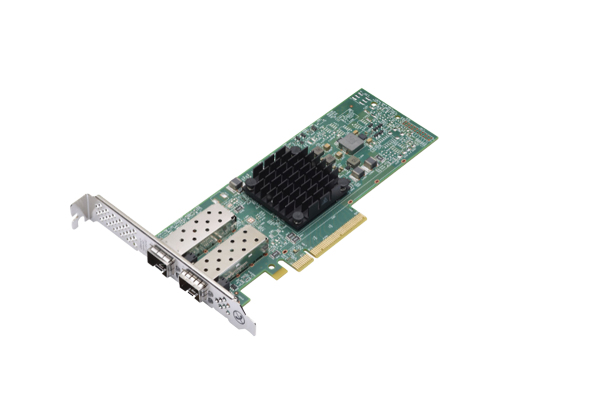

The ThinkSystem Broadcom 57412 and 57414 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters that offers TruFlow intelligent flow processing and support advanced networking technologies including RoCE, SDN, NFV and virtualization. Both 1-port (57412) and 2-port (57414) adapters are offered.
- One Broadcom adapter
- An attached full-height (3U) bracket, and a low-profile (2U) bracket that can be substituted if needed
- Documentation flyer
Products specifications
| Width | 167 mm |
| Height | 63 mm |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI version | 4.0 |
| Maximum data transfer rate | 25000 Mbit/s |
| Component for | Server |
| Product colour | Black, Green, Stainless steel |
| Internal | Yes |
| Compatible products | SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 (7D2Y / 7D2X) SR665 (7D2W / 7D2V) SR850 V2 (7D31 / 7D32) SR860 V2 (7Z59 / 7Z60) |
| Compatible operating systems | VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0 VMware vSphere Hypervisor (ESXi) 7.0 U1 VMware vSphere Hypervisor (ESXi) 7.0 U2 VMware vSphere Hypervisor (ESXi) 7.0 U3 VMware vSphere Hypervisor (ESXi) 8.0 |
