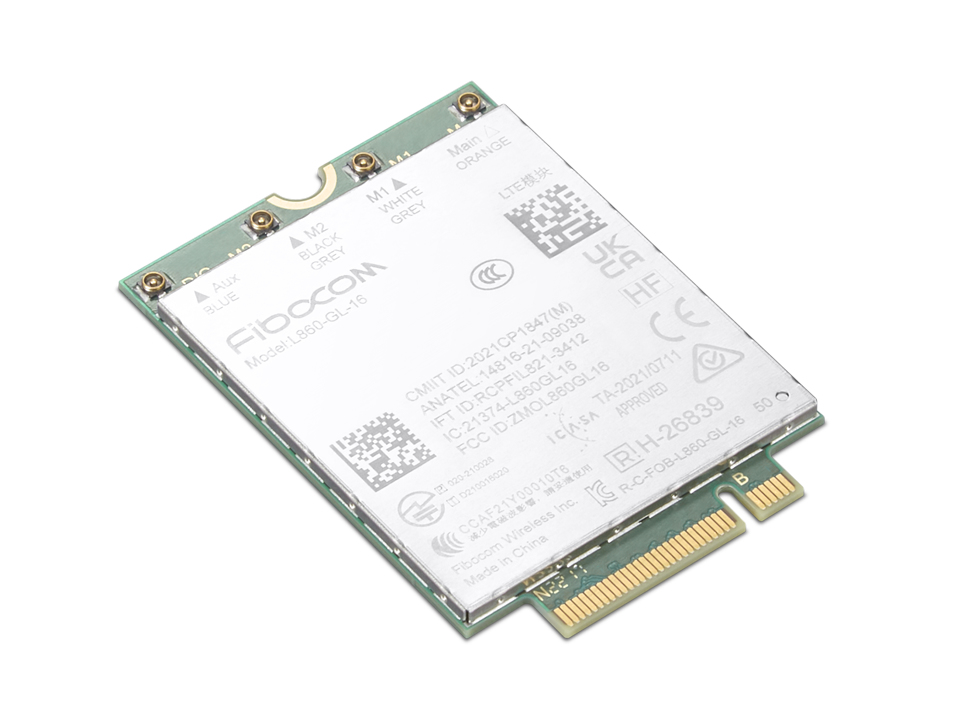

ThinkPad Fibocom L860-GL-16 4G LTE CAT16 M.2 WWAN Module is a wireless communication module with receive diversity. It helps provide data connectivity and network with PCIe Gen2 M.2 interface. With downlink speed up to 1Gbps and uplink speed up to 150 Mbps, the 4G LTE CAT16 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Products specifications
| Width | 30 mm |
| Depth | 42 mm |
| Height | 2.3 mm |
| Weight | 6.2 g |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 30 g |
| Operating temperature (T-T) | -10 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Connectivity technology | Wireless |
| Host interface | M.2 |
| Interface | WWAN |
| Maximum data transfer rate | 1000 Mbit/s |
| 3G standards | HSPA+, WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| Mobile network generation | 4G |
| MU-MIMO | Yes |
| Component for | Laptop |
| Internal | Yes |
| Antenna design | Internal |
| Certification | CE for EU KCC for Korea IFT for Mexico NTC for Philippines ICASA for South Africa NCC for Taiwan. |
| Windows operating systems supported | Windows 11 |
