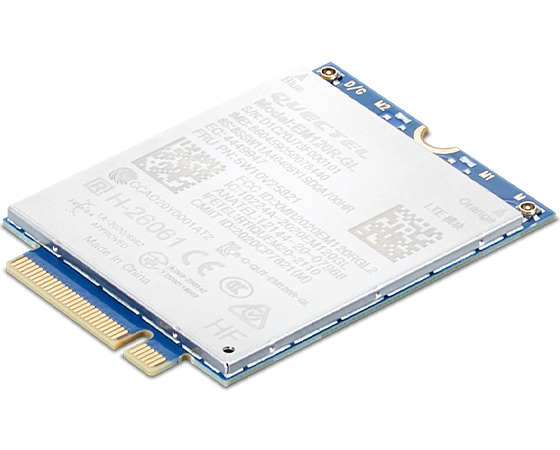

ThinkPad Quectel SDX24 EM120R-GL CAT12 WWAN Module I is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCI Express M.2 interface. With downlink speed of up to 600 Mbps and uplink speed of up to 150 Mbps, the CAT12 WWAN module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
Products specifications
| Width | 42 mm |
| Depth | 30 mm |
| Height | 2.3 mm |
| Weight | 6.8 g |
| Harmonized System (HS) code | 85176990 |
| Package width | 53 mm |
| Package depth | 144 mm |
| Package height | 177 mm |
| Package weight | 70 g |
| Operating temperature (T-T) | -25 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Connectivity technology | Wired |
| Host interface | M.2 |
| Interface | WWAN |
| Maximum data transfer rate | 600 Mbit/s |
| Component for | Laptop |
| Internal | Yes |
| Certification | CE,FCC,ANATEL,TELEC&JATE,RCM SDoC,KC,NCC,IC, ICASA, IFETEL |
