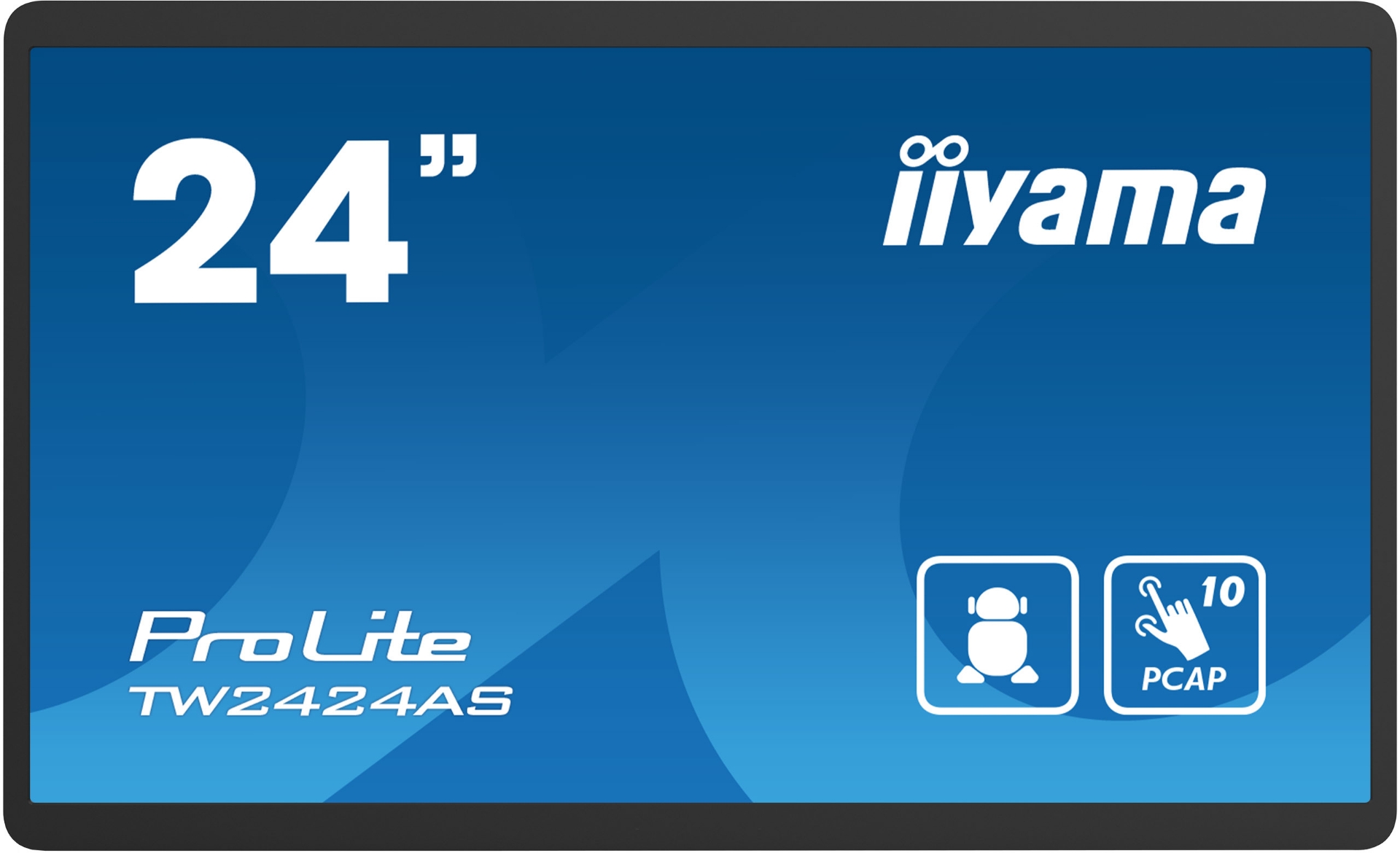

The ProLite TW2424AS-B1 interactive Touchpanel-PC is a perfect choice for high-use environments. The IPS panel, integrated in a slim and elegant bezel, delivers both excellent colour performance with wide viewing angles and noticeably sharper images. The In-cell 10tp PCAP touch technology ensures a fluid and natural touch experience. This monitor can operate in landscape, portrait and face-up orientation in 24/7 operating time. Thanks to the pre-installed Android 12 operating system, it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
Products specifications
| Base colour | Black |
| Base material | Metal |
| Suitable for indoor use | Yes |
| Display width | 549.5 mm |
| Display depth | 28 mm |
| Display height | 336 mm |
| Display weight | 4.23 kg |
| Quick start guide | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Power supply type | Internal |
| Bluetooth Low Energy (BLE) | Yes |
| Plug and Play | Yes |
| Package width | 580 mm |
| Package depth | 126 mm |
| Package height | 375 mm |
| Package weight | 6.15 kg |
| Power consumption (typical) | 19 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| OPS slot | 1 |
| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| USB port | Yes |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Anti-glare screen | Yes |
| Purpose | Commercial |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Panel type | IPS |
| LED backlighting type | Direct-LED |
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 14 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.275 x 0.275 mm |
| Active display area (W x H) | 527 x 296.5 mm |
| Display diagonal (metric) | 60.5 cm |
| Panel life | 50000 h |
| Horizontal scan range | 31 - 83 kHz |
| Surface hardness | 3H |
| Remote control included | Yes |
| Batteries included | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Cables included | HDMI, Power, USB |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 5 W |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3399 |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 12 |
