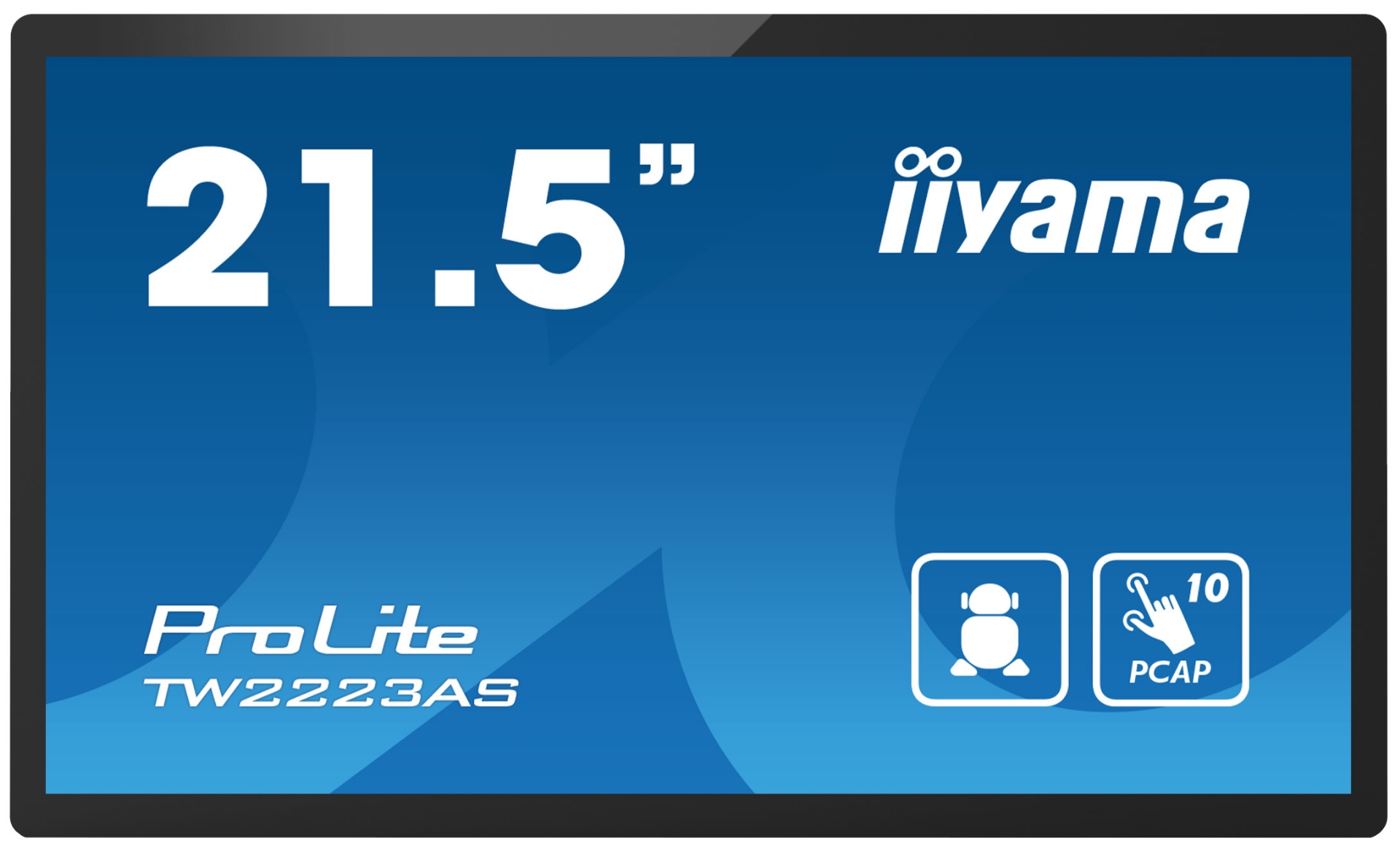

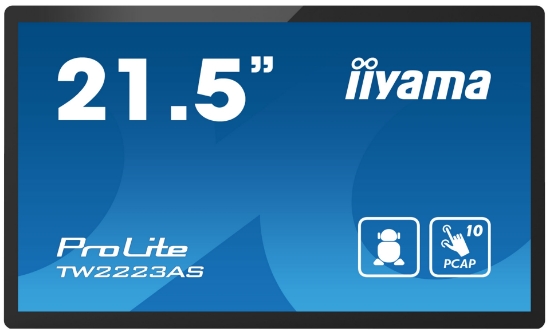

The ProLite TW2223AS-B2 interactive Touch Panel PC with an elegant edge-to-edge glass design is a perfect choice for high-use environments. This monitor can operate 24/7 in landscape, portrait and face-up orientation. Thanks to the pre-installed Android 12 operating system it is possible to easily customize the monitor by installing applications directly to it. In combination with the 32GB storage, Wi-Fi connection, LAN (RJ45) and Bluetooth connectors, it makes the monitor especially suited for POS systems or information points in retail shops to educate customers about your products, as well as virtually limitless smart home applications.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
Products specifications
| Display width | 504.5 mm |
| Display depth | 32 mm |
| Display height | 302 mm |
| Display weight | 3.61 kg |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Package width | 640 mm |
| Package depth | 121 mm |
| Package height | 410 mm |
| Package weight | 5.98 kg |
| Power consumption (typical) | 23 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Audio out (mini jack) | 1 |
| HDMI ports quantity | 1 |
| USB port | Yes |
| USB ports quantity | 5 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Panel type | VA |
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 400 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 18 ms |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Active display area (W x H) | 478 x 269.5 mm |
| Display diagonal (metric) | 54.6 cm |
| Horizontal scan range | 30 - 84 kHz |
| Surface hardness | 6H |
| Glass thickness | 2.9 mm |
| Cables included | AC |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 4 W |
| Computer system | Yes |
| Built-in processor | Yes |
| Processor family | ARM Rockchip |
| Processor frequency | 1.8 GHz |
| Processor cores | 2 |
| Internal memory | 4 GB |
| On-board graphics card model | A72 + A53 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android 12 |
