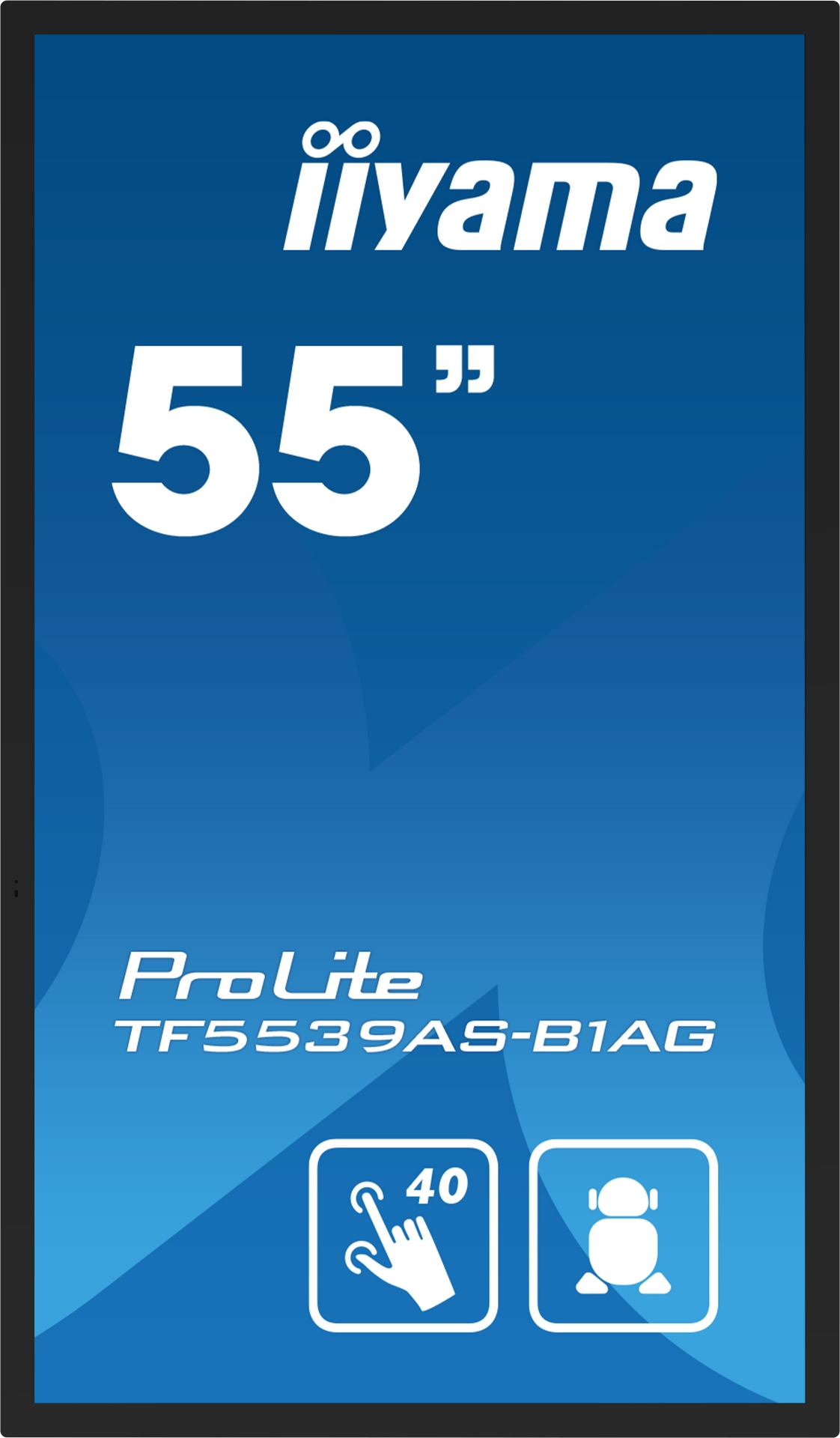

iiyama TF5539AS-B1AG Signage Display Digital signage flat panel 138.7 cm (54.6") LED 500 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7

iiyama TF5539AS-B1AG. Product design: Digital signage flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Manufacturer: Iiyama
SKU: TF5539AS-B1AG
Vendor: Aspects
55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before.

For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets (OMK4-2).

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€2036.15 incl tax
Lowest price in the last 30 days: $2,036.15
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
55" All-in-One PCAP Interactive Display inspired by technology and designed for creative spaces and sharing
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.

The refined edge-to-edge glass design of the TF5539AS-B1AG lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.

The on-board iiSignage² CMS (Content Management System) gives you total control of your messaging and advertising, remotely and safely. The EShare App enables you to bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wireless easier than ever before.

For ease of integration, the TF5539AS-B1AG can be equipped with optional external mounting brackets (OMK4-2).

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.
Products specifications
Weight & dimensions
Display width1274 mm
Display depth65.2 mm
Display height744.8 mm
Display weight39.6 kg
Packaging data
Package width1428 mm
Package depth185 mm
Package height894 mm
Package volume47200 cm³
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)139 W
Power consumption (standby)0.5 W
Power consumption (off)0.3 W
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours78 kWh
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Energy efficiency scaleA to G
Certificates
CertificationTCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Ports & interfaces
HDMI ports quantity2
HDMI version2.0
DVI portNo
DisplayPorts quantity1
DisplayPort version1.2
USB portYes
USB ports quantity3
USB connector typeUSB Type-A, USB Type-B
USB 2.0 Type-B ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
RS-232CYes
Design
Product designDigital signage flat panel
Placement supportedIndoor
OrientationHorizontal/Vertical
Product colourBlack
Screen shapeFlat
VESA mountingYes
Panel mounting interface400 x 400 mm
Bezel width (bottom)3 cm
Bezel width (side)3 cm
Bezel width (top)3 cm
Performance
PurposeUniversal
On Screen Display (OSD)Yes
Number of OSD languages13
On Screen Display (OSD) languagesCzech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Operating hours (hours/days)24/7
HDCPYes
International Protection (IP) codeIP54
HDCP version2.2
Mean time between failures (MTBF)50000 h
Display
Panel typeIPS
LED backlightYes
Display diagonal138.7 cm (54.6")
Display technologyLED
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
TouchscreenYes
Number of simultaneous touchpoints40
Multi-touchYes
Native aspect ratio16:9
Response time8 ms
Contrast ratio (typical)1200:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.07 billion colours
Pixel pitch0.315 x 0.315 mm
Active display area (W x H)1209.6 x 680.4 mm
Display diagonal (metric)139 cm
Horizontal scan range28 - 160 kHz
Native refresh rate60 Hz
Haze rate25%
Surface hardness3H
Glass thickness3 mm
Packaging content
Remote control includedYes
Batteries includedYes
Cables includedAC, DisplayPort, HDMI, USB
Audio
Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power20 W
Computer system
Computer systemYes
Built-in processorYes
Processor manufacturerARM
Processor architectureARM Cortex-A53+Cortex-A73
Internal memory4 GB
Internal storage capacity32 GB
Operating system installedAndroid
Operating system version11
*
*
*
Products specifications
Weight & dimensions
Display width1274 mm
Display depth65.2 mm
Display height744.8 mm
Display weight39.6 kg
Packaging data
Package width1428 mm
Package depth185 mm
Package height894 mm
Package volume47200 cm³
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Power
Power consumption (typical)139 W
Power consumption (standby)0.5 W
Power consumption (off)0.3 W
Energy efficiency class (SDR)F
Energy consumption (SDR) per 1000 hours78 kWh
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Energy efficiency scaleA to G
Certificates
CertificationTCO Certified, CB, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Ports & interfaces
HDMI ports quantity2
HDMI version2.0
DVI portNo
DisplayPorts quantity1
DisplayPort version1.2
USB portYes
USB ports quantity3
USB connector typeUSB Type-A, USB Type-B
USB 2.0 Type-B ports quantity1
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
RS-232CYes
Design
Product designDigital signage flat panel
Placement supportedIndoor
OrientationHorizontal/Vertical
Product colourBlack
Screen shapeFlat
VESA mountingYes
Panel mounting interface400 x 400 mm
Bezel width (bottom)3 cm
Bezel width (side)3 cm
Bezel width (top)3 cm
Performance
PurposeUniversal
On Screen Display (OSD)Yes
Number of OSD languages13
On Screen Display (OSD) languagesCzech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Polish, Russian, Slovenian
Operating hours (hours/days)24/7
HDCPYes
International Protection (IP) codeIP54
HDCP version2.2
Mean time between failures (MTBF)50000 h
Display
Panel typeIPS
LED backlightYes
Display diagonal138.7 cm (54.6")
Display technologyLED
Display resolution3840 x 2160 pixels
Display brightness500 cd/m²
HD type4K Ultra HD
TouchscreenYes
Number of simultaneous touchpoints40
Multi-touchYes
Native aspect ratio16:9
Response time8 ms
Contrast ratio (typical)1200:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.07 billion colours
Pixel pitch0.315 x 0.315 mm
Active display area (W x H)1209.6 x 680.4 mm
Display diagonal (metric)139 cm
Horizontal scan range28 - 160 kHz
Native refresh rate60 Hz
Haze rate25%
Surface hardness3H
Glass thickness3 mm
Packaging content
Remote control includedYes
Batteries includedYes
Cables includedAC, DisplayPort, HDMI, USB
Audio
Built-in speaker(s)Yes
Number of built-in speakers2
RMS rated power20 W
Computer system
Computer systemYes
Built-in processorYes
Processor manufacturerARM
Processor architectureARM Cortex-A53+Cortex-A73
Internal memory4 GB
Internal storage capacity32 GB
Operating system installedAndroid
Operating system version11
