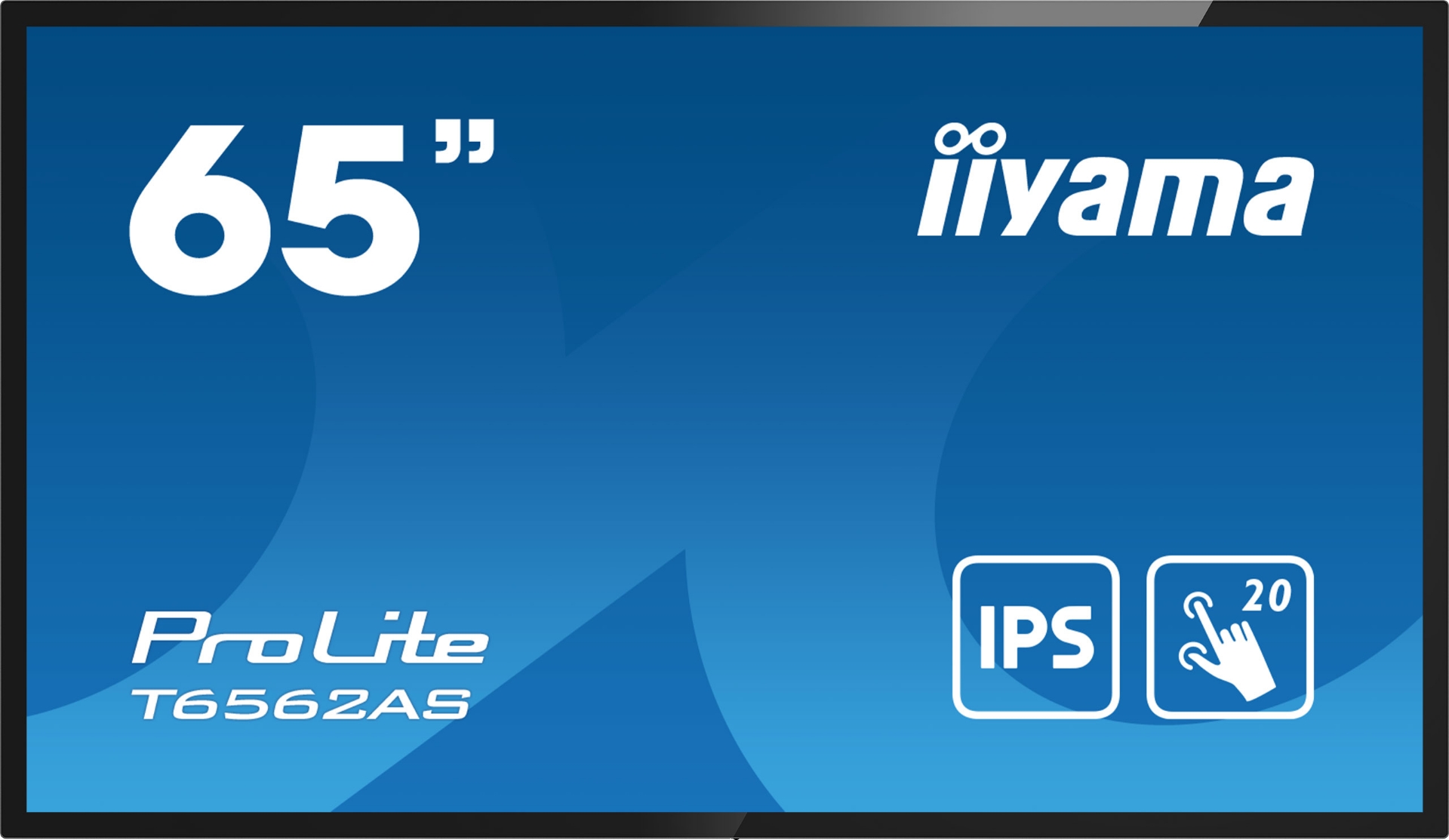

PROLITE T6562AS-B1
All-in-one PCAP Interactive Display inspired by technology and designed for creative spaces and sharing.
Enjoy an all-in-one interactive display that combines the best in PCAP Touchscreen technology, offering the versatility and freedom of Android OS, easily customized to your needs by installing applications directly to it. Offering a powerful, yet flexible user experience, fostering creative communication with the benefits of a secure and controllable Touchscreen.
The refined design of the T6562AS-B1 lends itself for integration into a large variety of environments where polished design and functionality are needed, like Huddle spaces in the modern office space, Retail shops and Kiosks.
RETAIL INSTALLATIONS
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make the 62 Series displays one of the most adaptable Touchscreens solutions around.
HUDDLE SPACES
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.
SIGNAL FAILOVER
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.
ANDROID OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Products specifications
| Width | 1485 mm |
| Depth | 71.8 mm |
| Height | 860 mm |
| Weight | 38.4 kg |
| Package width | 1649 mm |
| Package depth | 223 mm |
| Package height | 1021 mm |
| Package weight | 46 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Power consumption (typical) | 165 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Sustainability certificates | ErP |
| Pallet net height | 13 cm |
| Pallet net length | 114 cm |
| Pallet net width | 166 cm |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| HDMI ports quantity | 3 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| RS-232C | Yes |
| Product design | Interactive flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 400 mm |
| Purpose | Universal |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Japanese, Polish, Russian |
| Operating hours (hours/days) | 24/7 |
| HDCP | Yes |
| HDCP version | 2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Display diagonal | 163.8 cm (64.5") |
| Display technology | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 20 |
| Multi-touch | Yes |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.372 x 0.372 mm |
| Active display area (W x H) | 1422.4 x 802.6 mm |
| Display diagonal (metric) | 164 cm |
| Horizontal scan range | 30 - 135 kHz |
| RGB colour space | NTSC |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232, USB |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Computer system | Yes |
| Built-in processor | Yes |
| Internal memory | 2 GB |
| On-board graphics card model | ARM Mali-G51 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android 8.0 |
