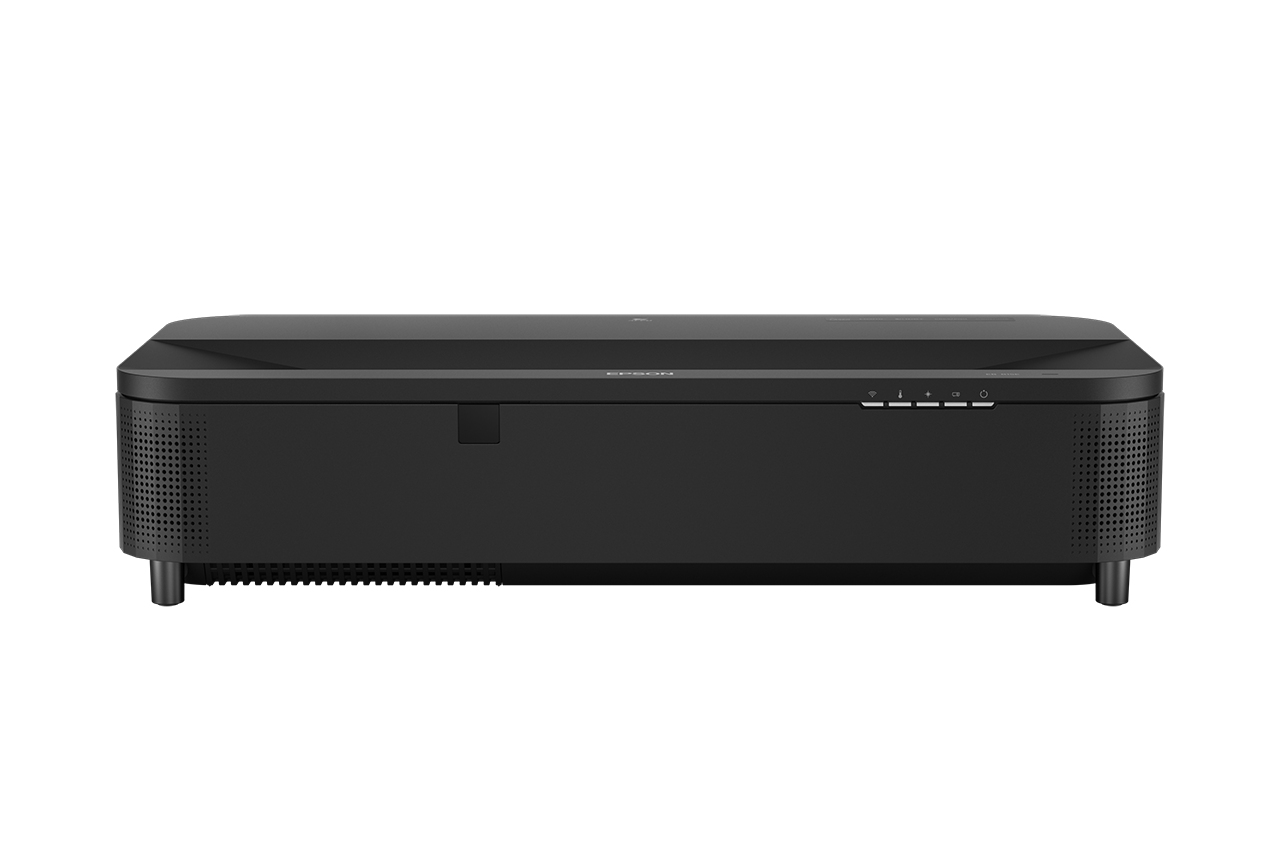

EB-815E, Epson’s first 4KE super-ultra-short-throw laser display designed for businesses, hybrid working and immersive spaces
The EB-815E can be placed just centimetres away from a wall to create bright 4KE images up to 160”. It projects content in stunning clarity and offers a low cost, energy efficient large display solution with a convenient and quick set up.
Products specifications
| Interactive | No |
| Noise level (economic mode) | 26 dB |
| Noise level | 35 dB |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG) |
| Password protection | Yes |
| Width | 695 mm |
| Depth | 341 mm |
| Height | 156 mm |
| Weight | 12.5 kg |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Power source | AC |
| Power consumption (typical) | 290 W |
| Power consumption (max) | 380 W |
| Power consumption (economy mode) | 192 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Service port type | USB Type-B |
| USB 2.0 ports quantity | 2 |
| Serial interface type | RS-232C |
| HDMI ports quantity | 3 |
| DVI port | No |
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Miracast | Yes |
| Market positioning | Business |
| Product type | Ultra short throw projector |
| Product colour | Black |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in display | No |
| Remote control included | Yes |
| Batteries included | Yes |
| Built-in speaker(s) | No |
| Card reader integrated | No |
| Focus | Manual |
| Fixed focal length | 2.3 mm |
| F-number (relative aperture) | 1.8 |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.16 - 0.40:1 |
| Smart projector | No |
| Screen size compatibility | 2032 - 4064 mm (80 - 160") |
| Projector brightness | 5000 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 25000000:1 |
| Native aspect ratio | 16:9 |
| Projector brightness (economic mode) | 3500 ANSI lumens |
| Matrix size | 1.57 cm (0.62") |
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Natural, Presentation |
