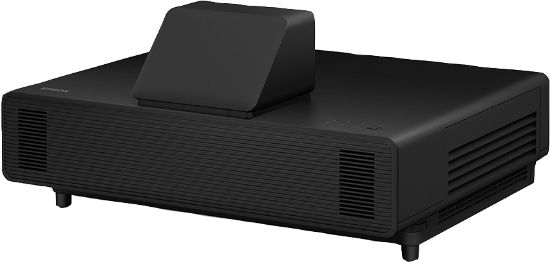

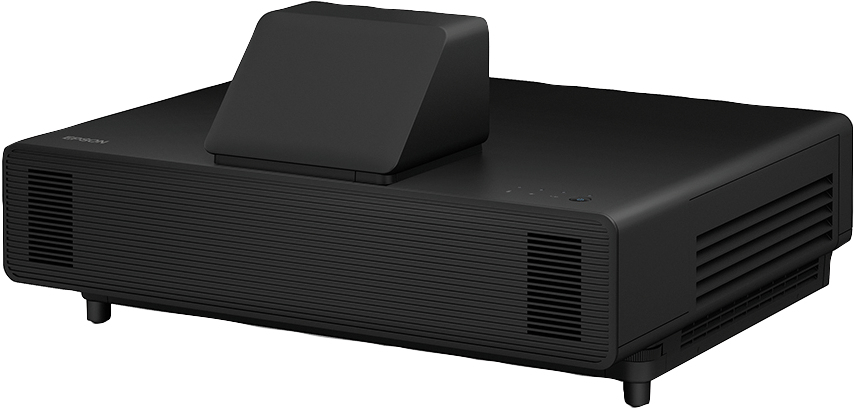

Epson EB-805F Ultra short throw projector 5000 ANSI lumens 3LCD 1080p (1920x1080) Black

Epson EB-805F. Projector brightness: 5000 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920x1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Fixed focal length: 3.9 mm, Zoom type: Auto. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection. Serial interface type: RS-232C, HDMI connector type: Full-size
Manufacturer: Epson
SKU: V11H923640
Vendor: Aspects
EB-805F
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€2955.63 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
EB-805F
This laser display solution brings informative signage to life and produces scalable projections of up to 130 inches. It brings a fresh dimension to signage with borderless images and projection onto ultra-wide surfaces, including glass and curved walls. The EB-805F features Full HD 1080p image quality and delivers powerful and informative displays for retail, hospitality and visitor attractions.

Innovative and cost effective
Epson's advanced laser technology is robust and reliable, providing a fit-and-forget digital signage solution. It offers bright and vivid colours in a cost-effective solution that's capable of large display sizes.

Large and scalable images
The EB-805F enables scalable display sizes of up to 130 inches, in Full HD resolution with 5,000 lumen brightness and 3LCD technology for bright colours and high display quality even in bright spaces.

Versatile and easy to install
This sleek, stylish and bright display solution offers the flexibility to fulfil the most exacting brief, and the versatility to work in tight spaces. It can be mounted on the wall, ceiling, floor, or even hidden away to create added mystery. Its ultra-short-throw design enables projection of large images from a short distance. A white version is also available.

Flexible playback options
Content can be played directly from a USB stick, including: playlists, videos, and signage content using the built-in content playback feature and Epson Projector Content Manager software. Users can benefit from multi-projector and daisy-chain support for built-in edge blending, or illuminate an entire wall with one huge image. Also, the split screen feature allows users to connect multiple input sources to display different content sources simultaneously.
Products specifications
Features
Noise level (economic mode)27 dB
Noise level36 dB
Country of originChina
Password protectionYes
Weight & dimensions
Width458 mm
Depth375 mm
Height210 mm
Weight9.4 kg
Package width535 mm
Package depth595 mm
Package height350 mm
Package weight13.2 kg
Other features
Supported network protocolsHTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Logistics data
Quantity per pack1 pc(s)
Products per pallet12 pc(s)
Pallet gross weight0 g
Products per pallet (UK)12 pc(s)
Pallet weight (UK)0 g
Harmonized System (HS) code85286200
Operational conditions
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Power
Power sourceAC
Power consumption (typical)366 W
Power consumption (standby)0.5 W
Power consumption (economy mode)262 W
AC input voltage220-240 V
AC input frequency50 - 60 Hz
Technical details
Sustainability certificatesTCO
Ports & interfaces
HDMI connector typeFull-size
USB 2.0 ports quantity2
USB 2.0 Type-B ports quantity1
Audio (L/R) in3
Audio (L/R) out1
Serial interface typeRS-232C
VGA (D-Sub) ports quantity2
HDMI ports quantity4
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Product typeUltra short throw projector
Product colourBlack
PlacementCeiling, Desktop, Wall
Cable lock slotYes
Cable lock slot typeKensington
Packaging content
Remote control includedYes
Batteries includedYes
Cables includedAC
Warranty cardYes
WLAN adapter includedYes
Bundled softwareInhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Multimedia
Built-in speaker(s)Yes
RMS rated power8 W
Software
Software supportvia: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Lens system
FocusManual
Fixed focal length3.9 mm
Zoom typeAuto
Zoom ratio1.35:1
Throw ratio0.27 - 0.37:1
Projector
Screen size compatibility1651 - 3302 mm (65 - 130")
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.8 m
Projector brightness5000 ANSI lumens
Projection technology3LCD
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)2500000:1
Native aspect ratio16:9
Number of colours1.07 billion colours
Projector brightness (economic mode)3500 ANSI lumens
Vertical scan range192 - 240 Hz
Keystone correction, horizontal-3 - 3°
Keystone correction, vertical-3 - 3°
Matrix size1.57 cm (0.62")
White light output5000 ANSI lumens
Colour light output5000 ANSI lumens
Heat dissipation1244 BTU/h
Light source
Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h
Video
Full HDYes
Video processing10 bit
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
*
*
*
Products specifications
Features
Noise level (economic mode)27 dB
Noise level36 dB
Country of originChina
Password protectionYes
Weight & dimensions
Width458 mm
Depth375 mm
Height210 mm
Weight9.4 kg
Package width535 mm
Package depth595 mm
Package height350 mm
Package weight13.2 kg
Other features
Supported network protocolsHTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Logistics data
Quantity per pack1 pc(s)
Products per pallet12 pc(s)
Pallet gross weight0 g
Products per pallet (UK)12 pc(s)
Pallet weight (UK)0 g
Harmonized System (HS) code85286200
Operational conditions
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)20 - 80%
Storage relative humidity (H-H)10 - 90%
Power
Power sourceAC
Power consumption (typical)366 W
Power consumption (standby)0.5 W
Power consumption (economy mode)262 W
AC input voltage220-240 V
AC input frequency50 - 60 Hz
Technical details
Sustainability certificatesTCO
Ports & interfaces
HDMI connector typeFull-size
USB 2.0 ports quantity2
USB 2.0 Type-B ports quantity1
Audio (L/R) in3
Audio (L/R) out1
Serial interface typeRS-232C
VGA (D-Sub) ports quantity2
HDMI ports quantity4
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Design
Product typeUltra short throw projector
Product colourBlack
PlacementCeiling, Desktop, Wall
Cable lock slotYes
Cable lock slot typeKensington
Packaging content
Remote control includedYes
Batteries includedYes
Cables includedAC
Warranty cardYes
WLAN adapter includedYes
Bundled softwareInhalt DIY-App, EasyMP Multi PC Projection, Epson Projektor Content Manager, Epson Projektor Management
Multimedia
Built-in speaker(s)Yes
RMS rated power8 W
Software
Software supportvia: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Lens system
FocusManual
Fixed focal length3.9 mm
Zoom typeAuto
Zoom ratio1.35:1
Throw ratio0.27 - 0.37:1
Projector
Screen size compatibility1651 - 3302 mm (65 - 130")
Projection distance (wide)0 - 0.4 m
Projection distance (tele)0 - 0.8 m
Projector brightness5000 ANSI lumens
Projection technology3LCD
Projector native resolution1080p (1920x1080)
Contrast ratio (typical)2500000:1
Native aspect ratio16:9
Number of colours1.07 billion colours
Projector brightness (economic mode)3500 ANSI lumens
Vertical scan range192 - 240 Hz
Keystone correction, horizontal-3 - 3°
Keystone correction, vertical-3 - 3°
Matrix size1.57 cm (0.62")
White light output5000 ANSI lumens
Colour light output5000 ANSI lumens
Heat dissipation1244 BTU/h
Light source
Light source typeLaser
Service life of light source20000 h
Service life of light source (economic mode)30000 h
Video
Full HDYes
Video processing10 bit
Video colour modesBlackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode, Multi-projection
