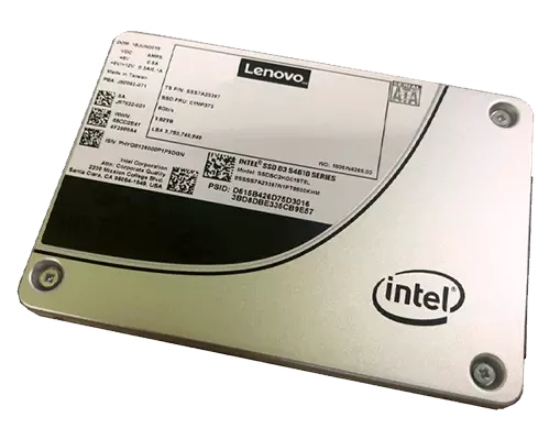

The Intel S4610 Mainstream SATA solid-state drives (SSDs) for Lenovo servers are advanced data center SSDs optimized for mixed read-write performance, endurance and strong data protection. The drives are available in either 2.5-inch or 3.5-inch drive form factor.
This product guide provides essential presales information to understand the S4610 SSD offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4610 SSDs and consider their use in IT solutions.
Products specifications
| SSD capacity | 1.92 TB |
| SSD form factor | 3.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 96000 IOPS |
| Random write (4KB) | 42000 IOPS |
| Random latency - read (up to) | 103 µs |
| Random latency - write (up to) | 54 µs |
| Read latency | 36 µs |
| Write latency | 37 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Width | 257 mm |
| Depth | 193 mm |
| Height | 95 mm |
| Weight | 484 g |
| Endurance rating | 10.5 PB |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 95 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Non-operating vibration | 3.13 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3050 m |
