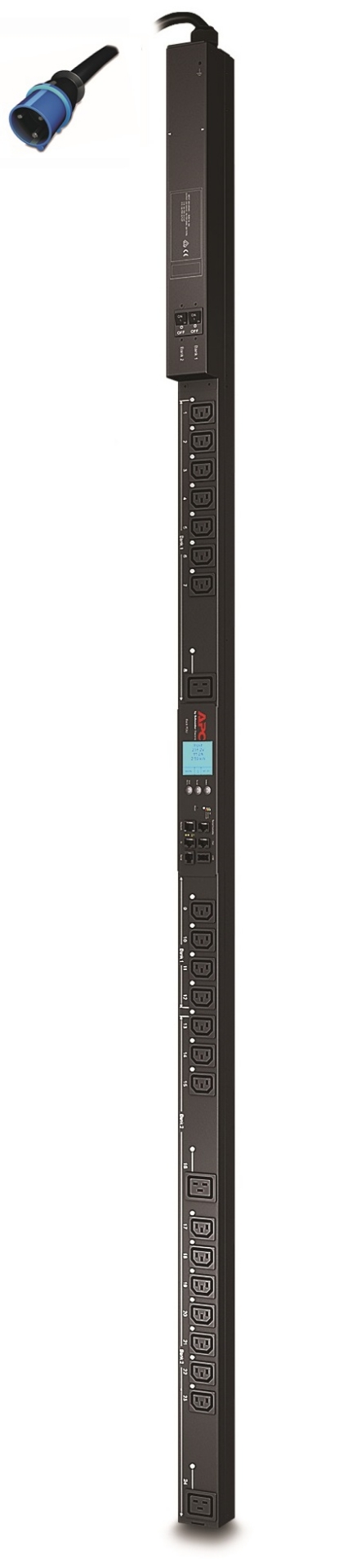

Picture of APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

Sorry - this product is no longer available

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19

Name: APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19
SKU: AP8653
Price: 1843.57 EUR
Availability: OutOfStock

Be the first to review this product

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 32A, 230V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Outlet control: Lock-out, Recycle, Turn off, Turn on. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz

Manufacturer: Apc

SKU: AP8653

Vendor: Aspects

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€1843.57 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Features
Cable length	3 m
Weight & dimensions
Width	56 mm
Depth	51 mm
Height	1829 mm
Weight	8.23 kg
Logistics data
Total carbon footprint (kg of CO2e)	8595.81
Packaging data
Package weight	10.5 kg
Package width	162 mm
Package depth	118 mm
Package height	2038 mm
Operational conditions
Operating temperature (T-T)	-5 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 15000 m
Power
Nominal input voltage	230 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Load capacity	7680 VA
Maximum input current per phase	32 A
Maximum total current draw per phase	32 A
Power protection features	Overload
Maximum power	7680 W
Certificates
Compliance certificates	RoHS
Certification	EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
Monitoring	Current, Power, Voltage
Outlet control	Lock-out, Recycle, Turn off, Turn on
Ports & interfaces
AC outlets quantity	24 AC outlet(s)
Power plug	IEC309
AC outlet types	C13 coupler, C19 coupler
Design
PDU types	Metered, Metered-by-outlet, Switched
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
