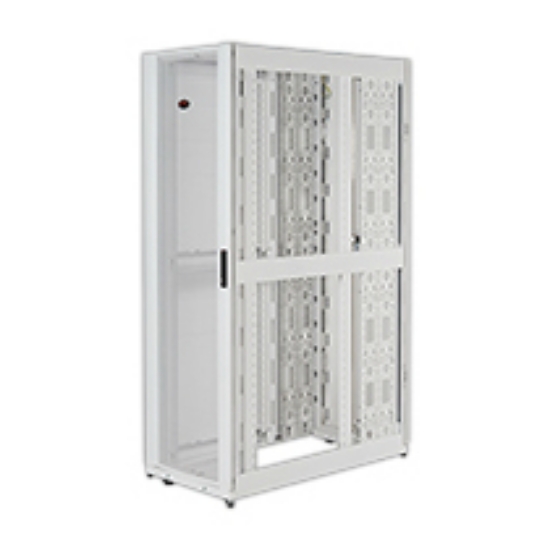

Split rear doors improve access and serviceability to rear of rack mounted equipment. The split rear doors help to maximize floor space. Only 11 inches (279 mm) of clearance is required behind the enclosures to allow for door swing. Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600mm centers or 24in centers depending upon the floor layout. Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench. Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside.
Products specifications
| Rack capacity | 42U |
| Type | Freestanding rack |
| Maximum weight capacity | 1704 kg |
| Product colour | White |
| Material | Steel |
| Side panels included | Yes |
| Certification | UL 2416, UL 60950-1 |
| Size (imperial) | 48.3 cm (19") |
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 125.1 kg |
| Mounting depth (max) | 91.5 cm |
| Harmonized System (HS) code | 85381000 |
| Package width | 752 mm |
| Package depth | 1219 mm |
| Package height | 2118 mm |
| Package weight | 144.6 kg |
| Total carbon footprint (kg of CO2e) | 438.61 |
