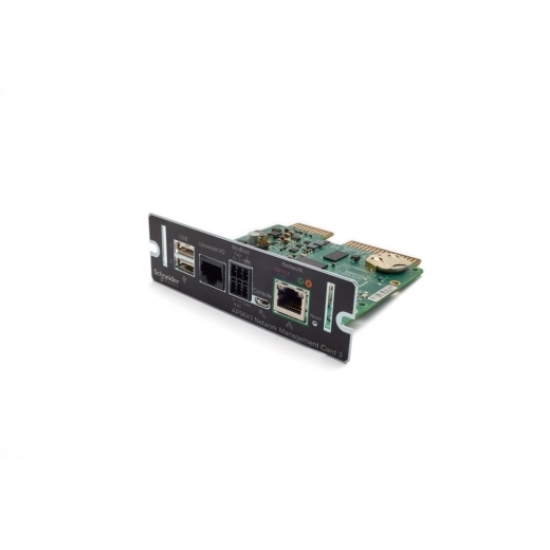

This APC UPS Network Management Card enables remote environmental monitoring and control of individual Single Phase and Three Phase APC UPS via secure network browsers or external command line interfaces. The NMC with temperature sensor is connected to the UPS via a web browser, command line interface, or SNMP. The flash upgradeable firmware installs maintenance releases of firmware remotely using FTP. The Network Management Card provides multiple-user access, pre-loaded multiple language support, advanced security protection, and data and event log space. The NMC card with PowerChute Network Shutdown provides unattended, graceful shutdown of physical servers, virtual machines, and HCI clusters. The network card supports user-selectable password with strong password rules and a reset password mechanism.
Products specifications
Width 121 mm Depth 108 mm Height 38 mm Weight 140 g Harmonized System (HS) code 85176990 Package width 235 mm Package depth 159 mm Package height 51 mm Package weight 910 g Total carbon footprint (kg of CO2e) 195.08 Connectivity technology Wireless Ethernet LAN (RJ-45) ports 1 USB ports quantity 2 Networking standards IEEE 802.1x Ethernet LAN Yes Ethernet interface type Gigabit Ethernet Ethernet LAN data rates 10,100,1000 Mbit/s Cabling technology 10/100/1000BaseT(X) Wi-Fi Yes Security algorithms HTTPS, SSH, TLS IPv6 routes 1 Product colour Black Internal Yes Cables included USB Manual Yes
