Sorry - this product is no longer available

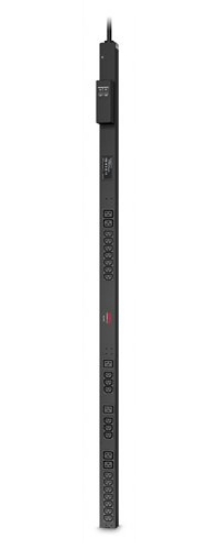

APC AP6009A power distribution unit (PDU) 26 AC outlet(s) Black

Be the first to review this product
APC AP6009A. PDU types: Basic, Mounting: Vertical, Product colour: Black. AC outlets quantity: 26 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, EAC, IRAM, VDE, REACH
Manufacturer: Apc
SKU: AP6009A
Vendor: Aspects
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€645.96 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Products specifications
Features
Cable length3.05 m
Weight & dimensions
Width56 mm
Depth43 mm
Height1626 mm
Weight6.18 kg
Packaging data
Package weight8 kg
Package width226 mm
Package depth135 mm
Package height1875 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Power protection featuresOverload
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IRAM, VDE, REACH
Ports & interfaces
AC outlets quantity26 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Design
PDU typesBasic
MountingVertical
Product colourBlack
*
*
*
Products specifications
Features
Cable length3.05 m
Weight & dimensions
Width56 mm
Depth43 mm
Height1626 mm
Weight6.18 kg
Packaging data
Package weight8 kg
Package width226 mm
Package depth135 mm
Package height1875 mm
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-15 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Power
Nominal input voltage230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Power protection featuresOverload
Certificates
Compliance certificatesRoHS
CertificationCE, EAC, IRAM, VDE, REACH
Ports & interfaces
AC outlets quantity26 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Design
PDU typesBasic
MountingVertical
Product colourBlack
