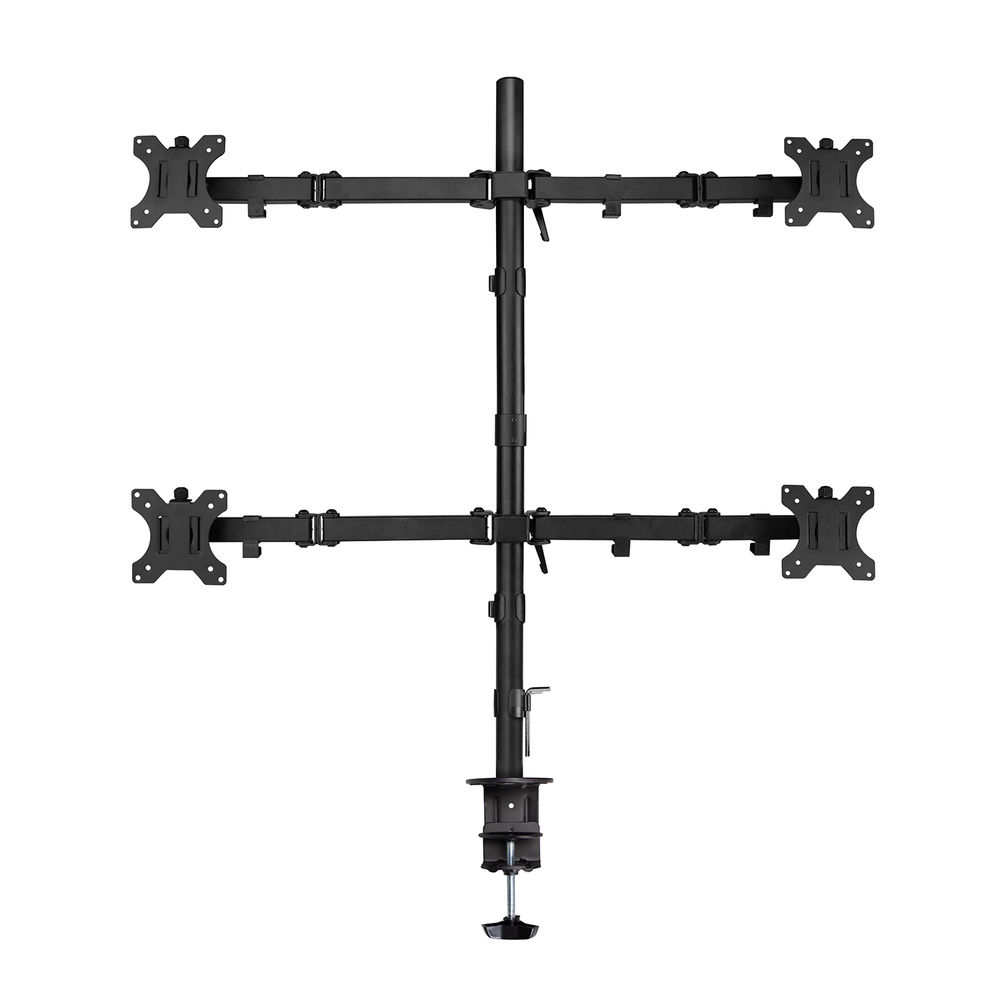

Create an ergonomic and space-saving work environment by using the full metal AC8304 Desk Mount for 4 monitors. Place four screens to your ideal height and viewing angle for a better posture and thus avoid back, neck and shoulder complaints. The AC8304 Quad Desk Mount is suitable for screens up to 32 inch and 8kg and is easy to attach to your desk via a clamp mount or grommet mount.
Reduce the risk of back, neck and shoulder strain
The AC8304 is easy adjustable in height and depth without tools by its convenient lever screw system. Tilt, swivel and rotate your screens to create an ideal ergonomic work space to reduce the risk of neck, back and shoulder complaints. Cables are kept out of sight thanks to the cable management system.
With convenient monitor mounting system
Adjust the 4 monitors to your wishes by setting the ideal viewing distance. The desk mount is suitable for four screens up to 32 inch with a maximum weight up to 8kg each. The AC8304 is fitted with VESA 75x75 mm and 100x100 mm. The easy mounting system makes it possible to attach four monitors to the desk mount all by yourself. All mounting gear for both the clamp and grommet mount is enclosed.
Products specifications
| Harmonized System (HS) code | 85299097 |
| Quantity per pack | 1 pc(s) |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 880 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 100 - 400 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -90 - 90° |
| Swivel angle | 360° |
| Angle of rotation | 360° |
| Number of pivot points | 3 |
| Cable management | Yes |
| Maximum weight capacity | 8 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 4 |
| Maximum screen size | 81.3 cm (32") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
