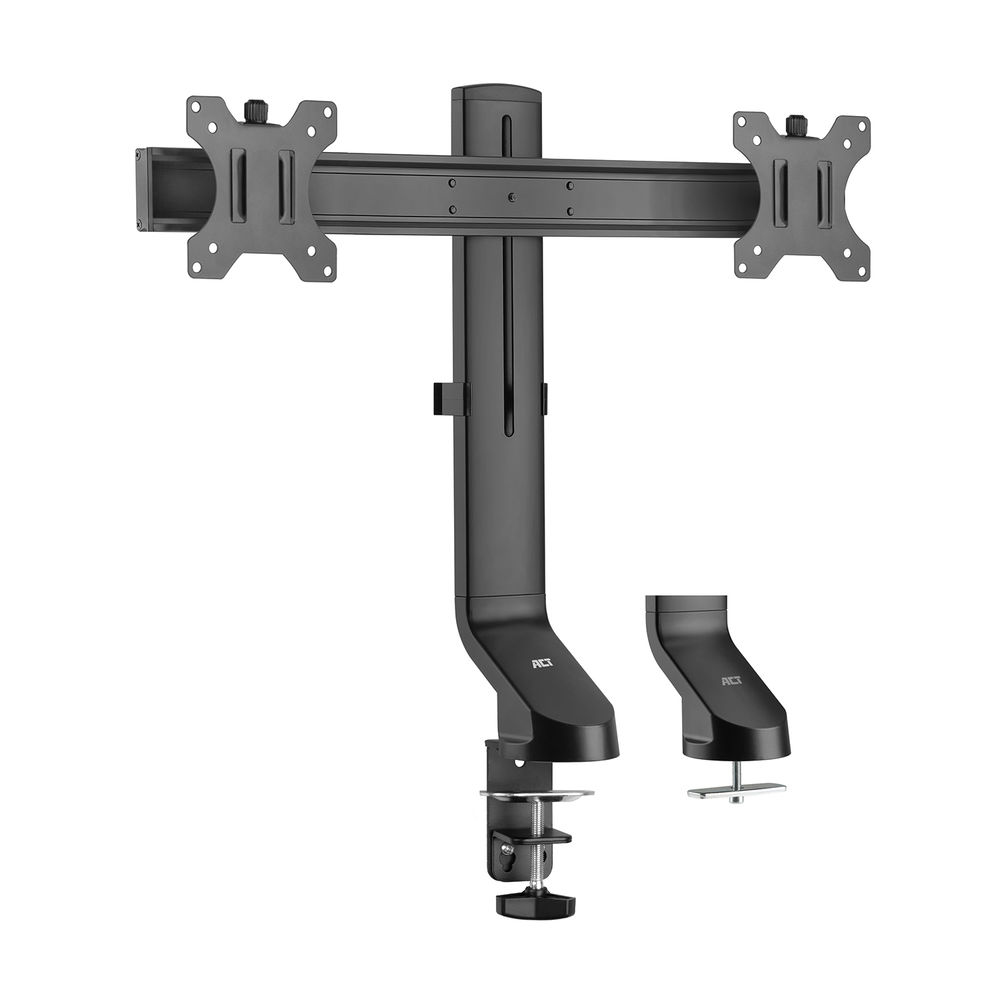

The AC8322 Monitor Desk Mount with Crossbar creates an ergonomic and space-saving work environment. Attach the monitor mount easily to or through a desk (max. table thickness 88mm). Attach two screens up to 27” to the AC8322 effortlessly via the easy screen mounting system. The viewing height of the screens can be easily adjusted without tools with the thumb screw system. Alter the monitors with the flexible screen adjustments: tilt, rotate and swivel.
Ideal for flexible workspaces
The AC8322 Monitor Desk Mount is ideal for use at flexible workspaces. The mount is easy adjustable in height without any tools. Just use the thumb screw for adjusting the height. Tilt, swivel and rotate your screen to create an ideal ergonomic work space and reduce the risk of neck, back and shoulder complaints. Cables are kept out of sight with the cable management system.
Space-saving crossbar design
The AC8322 enables you to mount two monitors side-by-side. You will create extra work space on your desk as the distance from the monitor to the wall is only 14cm.
Convenient monitor mounting system
The easy mounting system makes it possible to attach the monitors to the desk mount all by yourself. The mount has VESA 75x75 and 100x100. The AC8322 comes with all mounting gear for both the clamp and grommet mount. The desk mount is suitable for tables with a maximum thickness of 88mm.
Products specifications
| Quantity per pack | 1 pc(s) |
| Package width | 747 mm |
| Package depth | 100 mm |
| Package height | 195 mm |
| Package weight | 4.4 kg |
| Package type | Box |
| Housing material | Aluminium, Plastic, Steel |
| Product colour | Black |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 200 - 400 mm |
| Adjustable depth | Yes |
| Depth adjustment range | 110 - 110 mm |
| Tilt adjustment | Yes |
| Tilt angle range | -15 - 15° |
| Swivel angle | 30° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Maximum weight capacity | 14 kg |
| Minimum screen size | 25.4 cm (10") |
| Number of displays supported | 2 |
| Maximum weight capacity (per display) | 7 kg |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp/Bolt-through |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (max) | 8.8 cm |
| Clamp mount desk thickness (max) | 4 cm |
