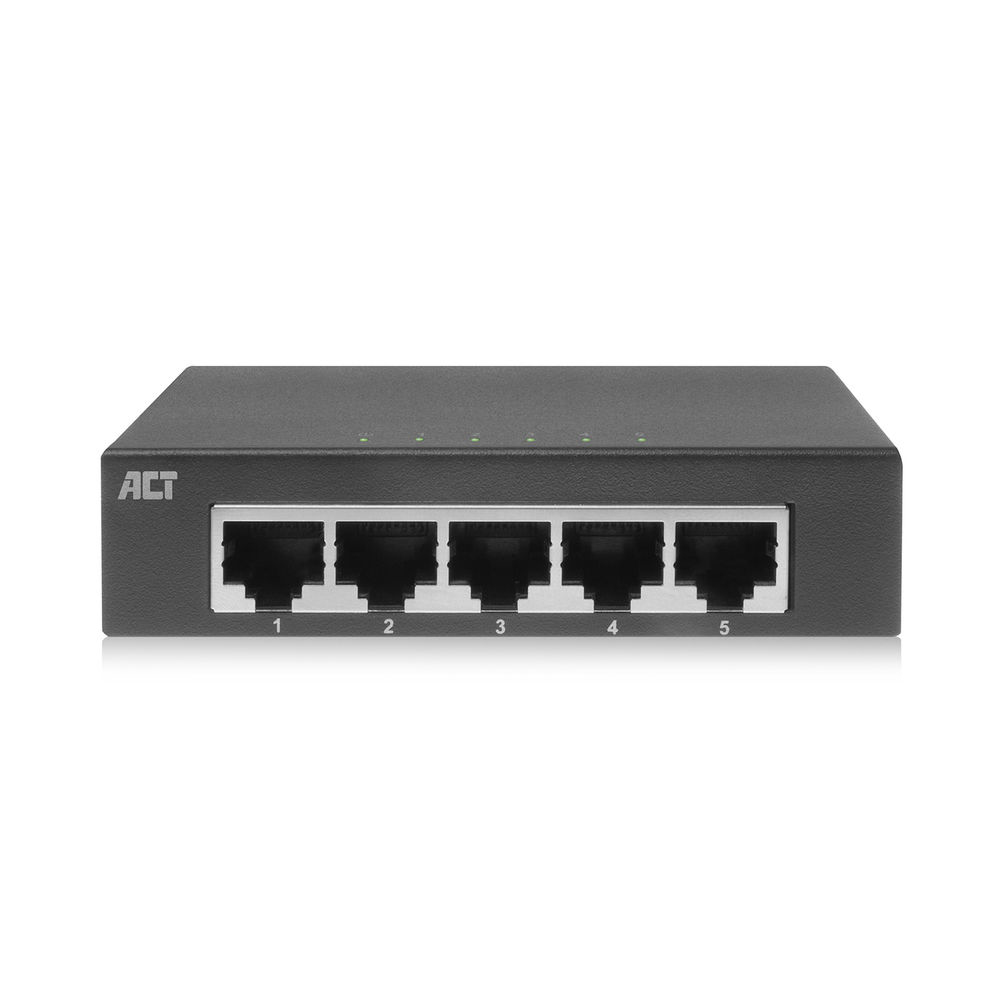

The ACT AC4415 5-Port Gigabit Ethernet Switch allows one to set up a network easy and fast. The gigabit Ethernet switch is suitable for desk and wall mounting. The solid metal fanless design ensures better heat dissipation and prevents excess noise. The AC4415 has additional features such as auto-negotiation and automatic cross-over detection. The status LEDs are showing the power, link and activity status.
5-Port gigabit Ethernet switch
The Ethernet switch has 5 independent 10/100/1000Mbps ports supporting full-wire speed transmissions in half or full duplex modes.
Solid metal and fan less design
The solid metal housing of the gigabit Ethernet switch ensures better heat dissipation. The switch is extremely quiet because of the fanless design.
Suitable for wall and desk mounting
The switch has dedicated mounting holes for wall and desk mounting.
Auto-negotiation function
The gigabit Ethernet switch achieves optimal performance thanks to the auto-negotiation function. The switch communicates with the connected devices and chooses automatically the correct speed.
Automatic cross-over detection
Cross-over detection ensures that users can connect the switch to another switch without using a crossover cable.
Status LEDs
The AC4415 is equipped with integrated status LEDs on each port that show link and activity.
Products specifications
| Width | 100 mm |
| Depth | 64 mm |
| Height | 24 mm |
| Power source | DC |
| Power supply included | Yes |
| Input current | 1 A |
| Input voltage | 5 V |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 10G support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Full duplex | Yes |
| Half duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Rack mounting | No |
| Stackable | No |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Power over Ethernet (PoE) | No |
