True WiFi 6

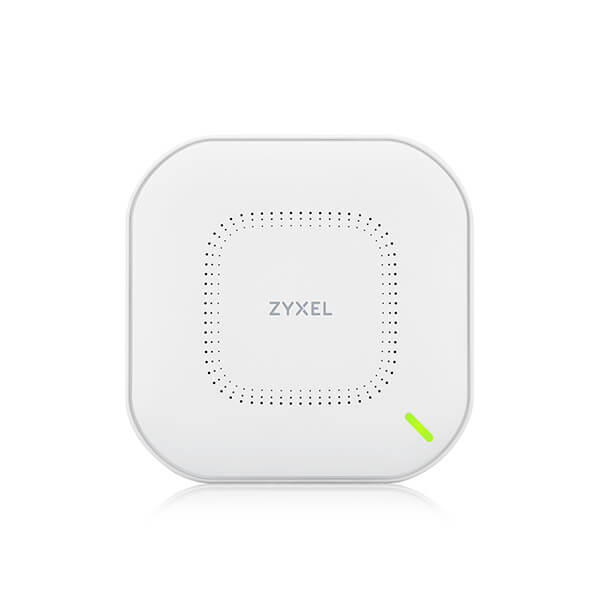

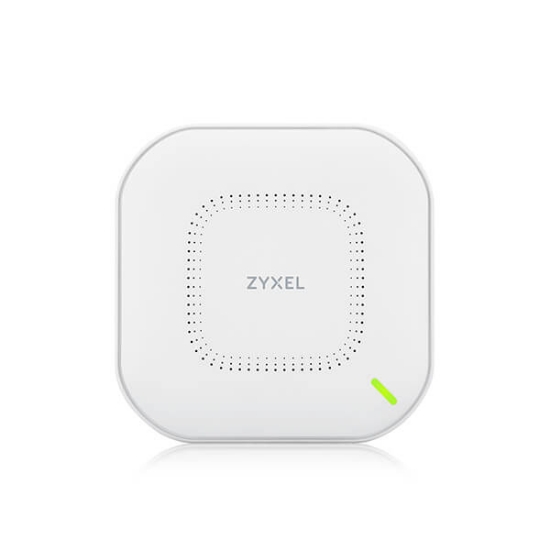

The WAX510D is truly the next generation of wireless (WiFi 6) AP, especially for businesses looking to strike the right balance between performance and budget. Its built-in 2nd Generation WiFi 6 (Qualcomm 802.11ax 2.0) chipset allows the access point to take advantage of the full range of WiFi 6 technologies including uplink OFDMA and MU-MIMO, which can’t be found in the earlier releases of 802.11ax products. The WAX510D boasts an impressive quad-core processor with 2 network accumulators to guarantee that a smooth and consistently fast service is provided to each client at all times.
Mount wherever you want without compromise
An access point that fits your need
We understand that mounting an access point to the ceiling isn’t always possible due to the challenging environments like warehouses, historical buildings or stylish hotels were the aesthetics of the building are a priority. The WAX510D is equipped with a dual-optimized antenna that is selectable, allowing the access point to be mounted on the wall or on the ceiling without compromising on performance and coverage.
The smartest choice
The WAX510D is not only efficient at delivering impressive high speeds with smooth and consistent delivery to wireless clients, but also it’s efficient on power. The WAX510D can deliver its impressive performance while keeping the consumption of PoE within the PoE+ standard, so that you can enjoy the latest WiFi 6 technology offering without the need to invest in upgrading your traditional switching architecture.
Manage it your way!
As it comes with support for NebulaFlex Pro, Zyxel’s scalable, cloud-based management system, the WAX510D can be managed via NCC (Nebula control Center), on-premises controller or simply operate alone (controller less). You can choose the way that is best suited to your needs.
Products specifications
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1775 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 39 mm |
| Weight | 453 g |
| Harmonized System (HS) code | 85176990 |
| Package width | 229 mm |
| Package depth | 215 mm |
| Package height | 64 mm |
| Package weight | 770 g |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 1.5 A |
| Power consumption (typical) | 17 W |
| Certification | FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438 |
| Web-based management | Yes |
| Placement | Ceiling, Wall |
| Product colour | White |
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK |
| Antenna type | Internal |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
