Plug and play connectivity

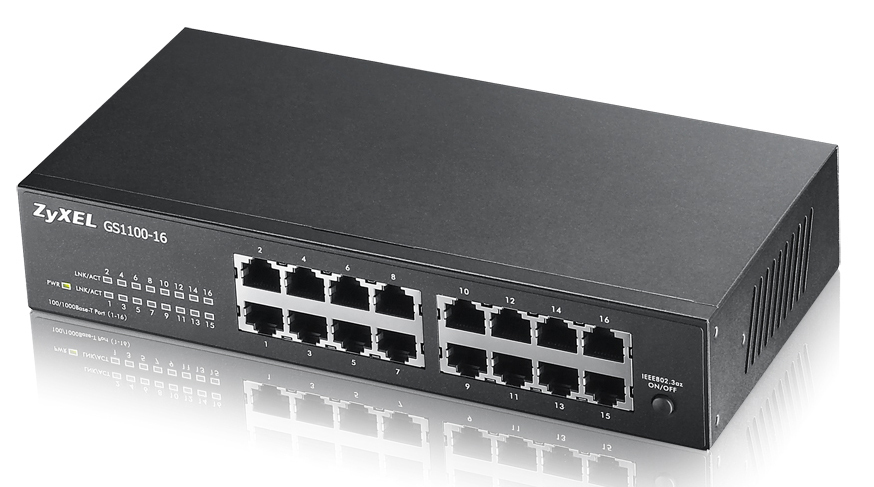

Simply unbox the GS1100 unmanaged switch, you can enjoy instant plug-n-play Gigabit connectivity without any additional settings required with auto-negotiation and auto MDI/MDI-X. Supporting 802.1p prioritization and jumbo frame, the switch ensures smooth voice and video traffic for your office network.
Whisper quiet operation
The GS1100 Series has fanless design that ensures silent operation in small or quiet office environments. The GS1100-10HP PoE model is specifically designed with an external power adapter that eliminates the need for an additional fan to cool down the device, making it perfect for quiet PoE deployments.
Energy saving
The GS1100 features Energy Efficient Ethernet(IEEE 802.3az) which automatically detects network traffic and adjusts power consumption dynamically. Zyxel’s green features also adjust power consumption by detecting the link status and cable length reducing business operating expenses.
Products specifications
| Width | 215 mm |
| Depth | 133 mm |
| Height | 42 mm |
| Weight | 900 g |
| Harmonized System (HS) code | 85176990 |
| Package type | Box |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Heat dissipation | 32.86 BTU/h |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 10 W |
| Certification | LVD, BSMI RoHS, REACH |
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Active link detection | Yes |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.8 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 0.5 MB |
| Rack mounting | Yes |
| LED indicators | Activity, Link, Power |
| Wall mountable | Yes |
| Electromagnetic compatibility | CE, FCC, RCM, ICES-003, BSMI |
| Fanless | Yes |
| Mean time between failures (MTBF) | 1156942 h |
| Power over Ethernet (PoE) | No |
| Cables included | AC |
| Rack mount kit | Yes |
