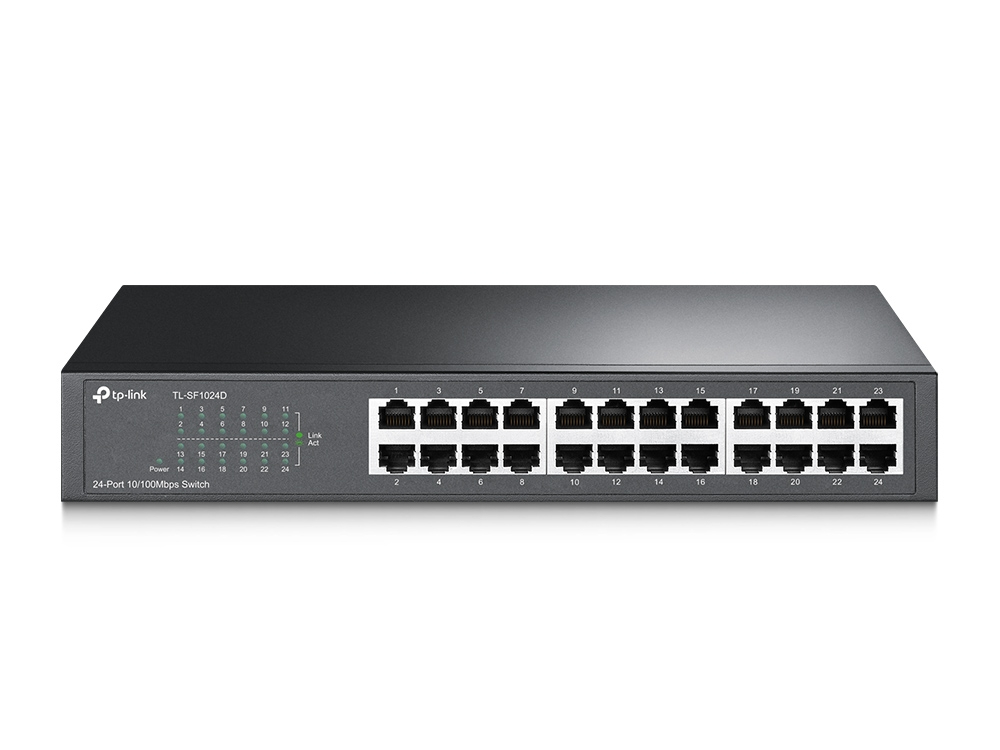

TP-Link TL-SF1024D network switch Unmanaged Fast Ethernet (10/100) Grey

TP-Link TL-SF1024D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting
Manufacturer: TP-Link
SKU: TL-SF1024D
Vendor: Aspects
What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€46.87 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save the power consumption and most of the packaging material can be recycled, making it an eco-friendly solution for your business network.

What This Product Does
The 24-Port 10/100Mbps Switch TL-SF1024D provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly
Products specifications
Weight & dimensions
Width294 mm
Depth180 mm
Height44 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package typeBox
Package width250 mm
Package depth400 mm
Package height80 mm
Package weight2 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation10.88 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)3.53 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity24
Power connectorAC-in jack
Network
Networking standardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10GBASE-T, 100BASE-TX
Cable types supportedCat3, Cat5e, Cat4, Cat5
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100 Mbit/s
Data transmission
Switching capacity4.8 Gbit/s
Throughput3.57 Mpps
Forwarding rate3.57 Mpps
MAC address table8000 entries
Store-and-forwardYes
Packet buffer memory2 MB
Design
Rack mountingYes
StackableNo
Product colourGrey
Housing materialMetal
LED indicatorsYes
Performance
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedAC
User guideYes
Rack mount kitYes
Sustainability
Sustainability complianceYes
Protocols
Supported network protocolsCSMA/CD, TCP/IP
*
*
*
Products specifications
Weight & dimensions
Width294 mm
Depth180 mm
Height44 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
Package typeBox
Package width250 mm
Package depth400 mm
Package height80 mm
Package weight2 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation10.88 BTU/h
Power
Power sourceAC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (typical)3.53 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Fast Ethernet (copper) ports quantity24
Power connectorAC-in jack
Network
Networking standardsIEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10GBASE-T, 100BASE-TX
Cable types supportedCat3, Cat5e, Cat4, Cat5
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100 Mbit/s
Data transmission
Switching capacity4.8 Gbit/s
Throughput3.57 Mpps
Forwarding rate3.57 Mpps
MAC address table8000 entries
Store-and-forwardYes
Packet buffer memory2 MB
Design
Rack mountingYes
StackableNo
Product colourGrey
Housing materialMetal
LED indicatorsYes
Performance
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedAC
User guideYes
Rack mount kitYes
Sustainability
Sustainability complianceYes
Protocols
Supported network protocolsCSMA/CD, TCP/IP
