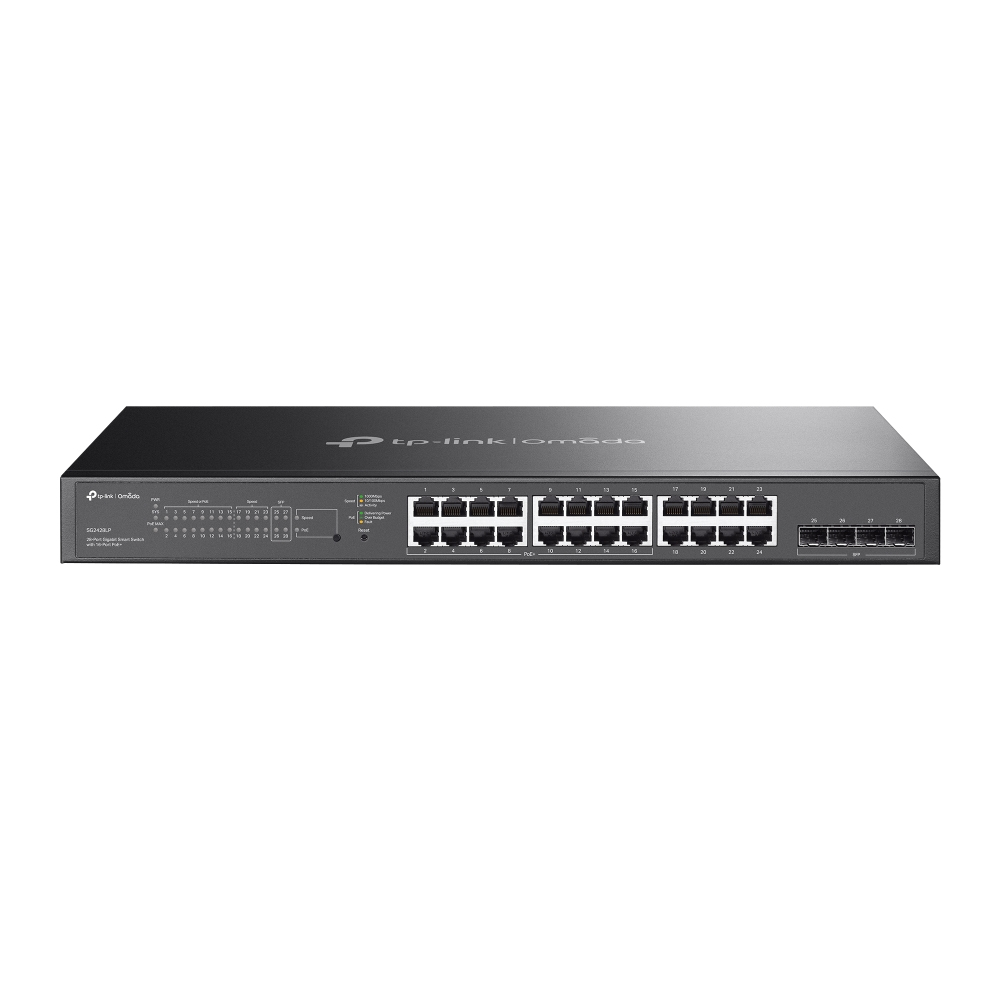

TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

Be the first to review this product
TP-Link Omada 28-Port Gigabit Smart Switch with 16-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. MAC address table: 8000 entries, Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power over Ethernet (PoE). Rack mounting
Manufacturer: TP-Link
SKU: SG2428LP
Vendor: Aspects
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€269.48 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
- 24× Gigabit Ports (16× PoE+), 4× Gigabit SFP Slots
- 150 W Total PoE Budget
- Fanless Design for Silent Operation
- Zero-Touch Provisioning
- Centralized Management
- Omada App
- Static Routing
- Traffic Separation

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers
Products specifications
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation628 BTU/h
Power
Power sourceAC/PoE
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)184.7 W
Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Network
Networking standardsIEEE 802.3af, IEEE 802.3at
10G supportNo
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Design
Rack mountingYes
Product colourGrey
LED indicatorsYes
Performance
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget150 W
Security
DHCP featuresDHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Password protectionYes
Multicast features
Multicast supportYes
*
*
*
Products specifications
Weight & dimensions
Width440 mm
Depth220 mm
Height44 mm
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation628 BTU/h
Power
Power sourceAC/PoE
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power consumption (max)184.7 W
Management features
Switch typeManaged
Switch layerL2/L2+
Quality of Service (QoS) supportYes
Web-based managementYes
Cloud-managedYes
ARP inspectionYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity4
Network
Networking standardsIEEE 802.3af, IEEE 802.3at
10G supportNo
Flow control supportYes
Link aggregationYes
Spanning tree protocolYes
Auto-negotiationYes
VLAN supportYes
Virtual LAN featuresMAC address-based VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs4000
Data transmission
Switching capacity56 Gbit/s
Forwarding rate41.66 Mpps
MAC address table8000 entries
Jumbo frames supportYes
Jumbo frames9000
Packet buffer memory4.1 MB
Design
Rack mountingYes
Product colourGrey
LED indicatorsYes
Performance
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget150 W
Security
DHCP featuresDHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
MAC address filteringYes
Password protectionYes
Multicast features
Multicast supportYes
