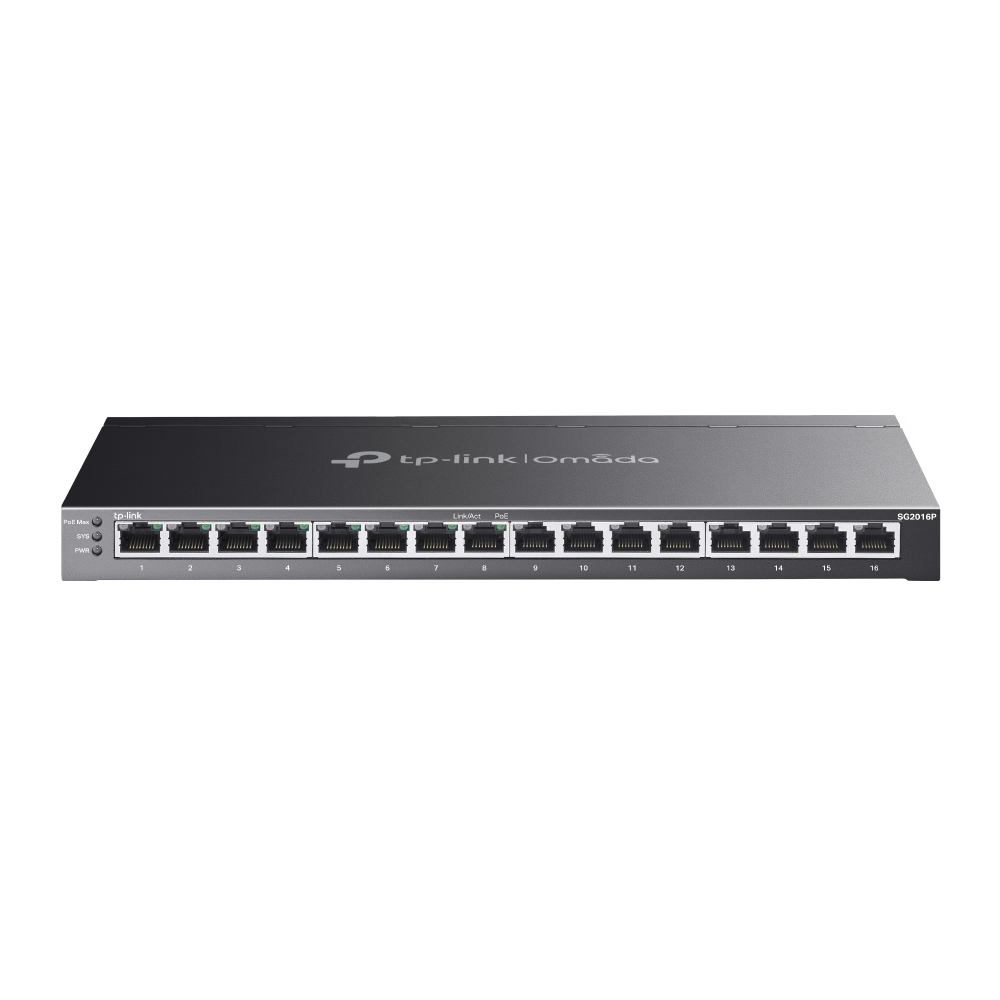

Picture of TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+

Name: TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+
SKU: TL-SG2016P
Price: 192.11 EUR
Availability: InStock

Be the first to review this product

TP-Link Omada 16-Port Gigabit Smart Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE.... DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Rack mounting

Manufacturer: TP-Link

SKU: TL-SG2016P

Vendor: Aspects

TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€192.11 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Weight & dimensions
Width	286 mm
Depth	111.7 mm
Height	25.4 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	499.98 BTU/h
Power
Power source	DC/PoE
DC input voltage	53.5 V
Power consumption (max)	146.5 W
Certificates
Certification	CE, FCC, RoHS
Management features
Switch type	Managed
Switch layer	L2/L2+
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack
Network
Networking standards	IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Auto MDI/MDI-X	Yes
Spanning tree protocol	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto-negotiation	Yes
VLAN support	Yes
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	32 Gbit/s
Forwarding rate	23.81 Mpps
MAC address table	8000 entries
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	4.1 MB
Design
Rack mounting	Yes
Product colour	Black
LED indicators	PoE, Power, System
Performance
Firmware upgradeable	Yes
Fanless	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	8
Total Power over Ethernet (PoE) budget	120 W
Packaging content
Cables included	AC
Manual	Yes
Security
DHCP features	DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
MAC address filtering	Yes
SSH/SSL support	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Queue scheduling algorithms	SP, Weighted Round Robin (WRR)
MAC address entries	Dynamic MAC address entries, Static MAC address entries
Protocols
Supported network protocols	ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
GARP VLAN Registration Protocol (GVRP)	Yes
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	MLD v1, MLD v2
