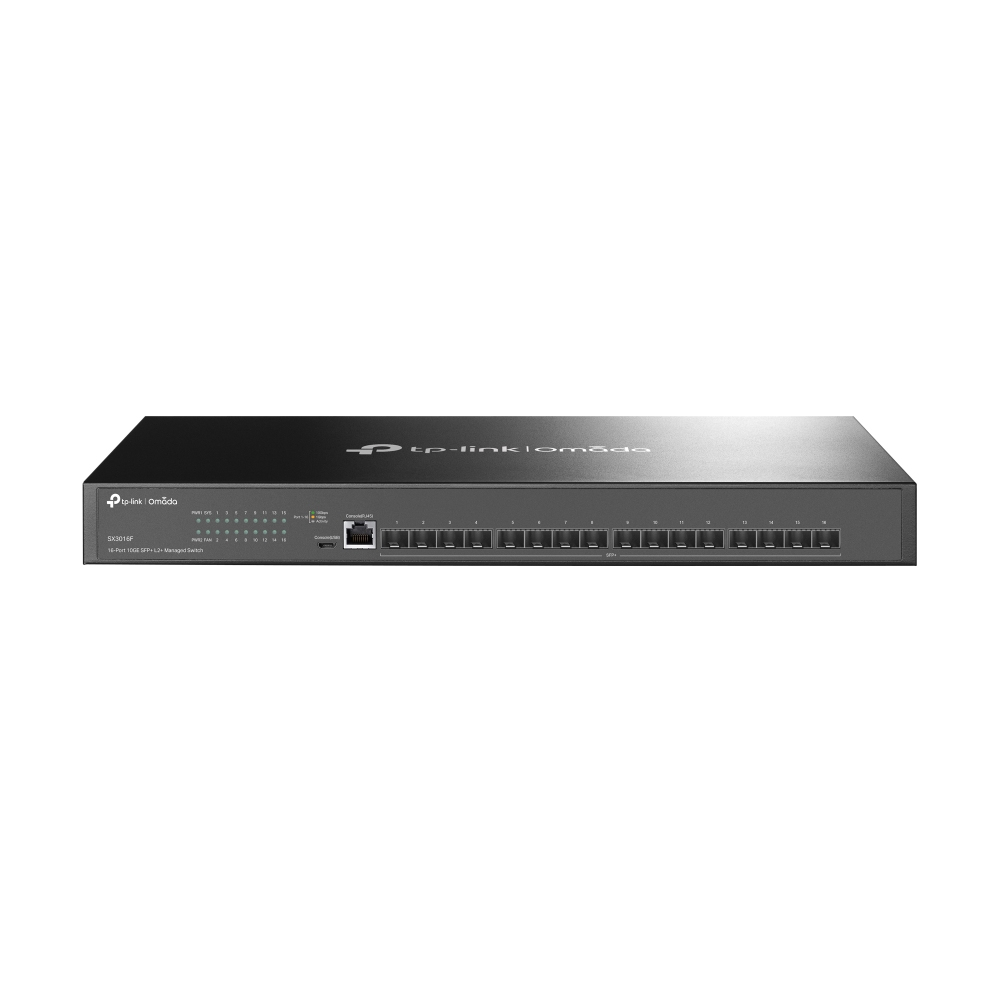

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch

Name: TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch
SKU: TL-SX3016F
Price: 528.82 EUR
Availability: OutOfStock

Be the first to review this product

TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... Power connector: DC-in jack. Rack mounting

Manufacturer: TP-Link

SKU: TL-SX3016F

Vendor: Aspects

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€528.82 incl tax

increase decrease

Overview
Specifications
Contact Us

Products specifications

Weight & dimensions
Width	440 mm
Depth	220 mm
Height	44 mm
Packaging data
Package type	Box
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	111.71 BTU/h
Power
Power source	AC
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (max)	32.74 W
Certificates
Certification	CE, FCC, RoHS
Management features
Switch type	Managed
Switch layer	L2+/L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
Cloud-managed	Yes
Traffic classification	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Ports & interfaces
Basic switching RJ-45 Ethernet ports type	No
SFP+ module slots quantity	16
Console port	RJ-45/Micro-USB
Power connector	DC-in jack
Network
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x
10G support	Yes
Port mirroring	Yes
IP routing	Yes
Flow control support	Yes
Link aggregation	Yes
Broadcast storm control	Yes
Rate limiting	Yes
Spanning tree protocol	Yes
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Virtual LAN features	Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4000
Data transmission
Switching capacity	320 Gbit/s
Forwarding rate	238.08 Mpps
MAC address table	32000 entries
Number of queues	8
Static route	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Packet buffer memory	24 MB
Design
Rack mounting	Yes
Product colour	Black
LED indicators	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Packaging content
Cables included	AC
Quick start guide	Yes
Manual	Yes
Rack mount kit	Yes
Security
DHCP features	DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Access Control List (ACL)	Yes
IGMP snooping	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
Static port security	Yes
SSH/SSL support	Yes
Loop protection	Yes
BPDU filtering/protection	Yes
IP-MAC-Port binding	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
IPv4 & IPv6 features	IPv6 Telnet, IPv6 ping, IPv6 tracert
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Y
