Tiny Size. Powerful Connection

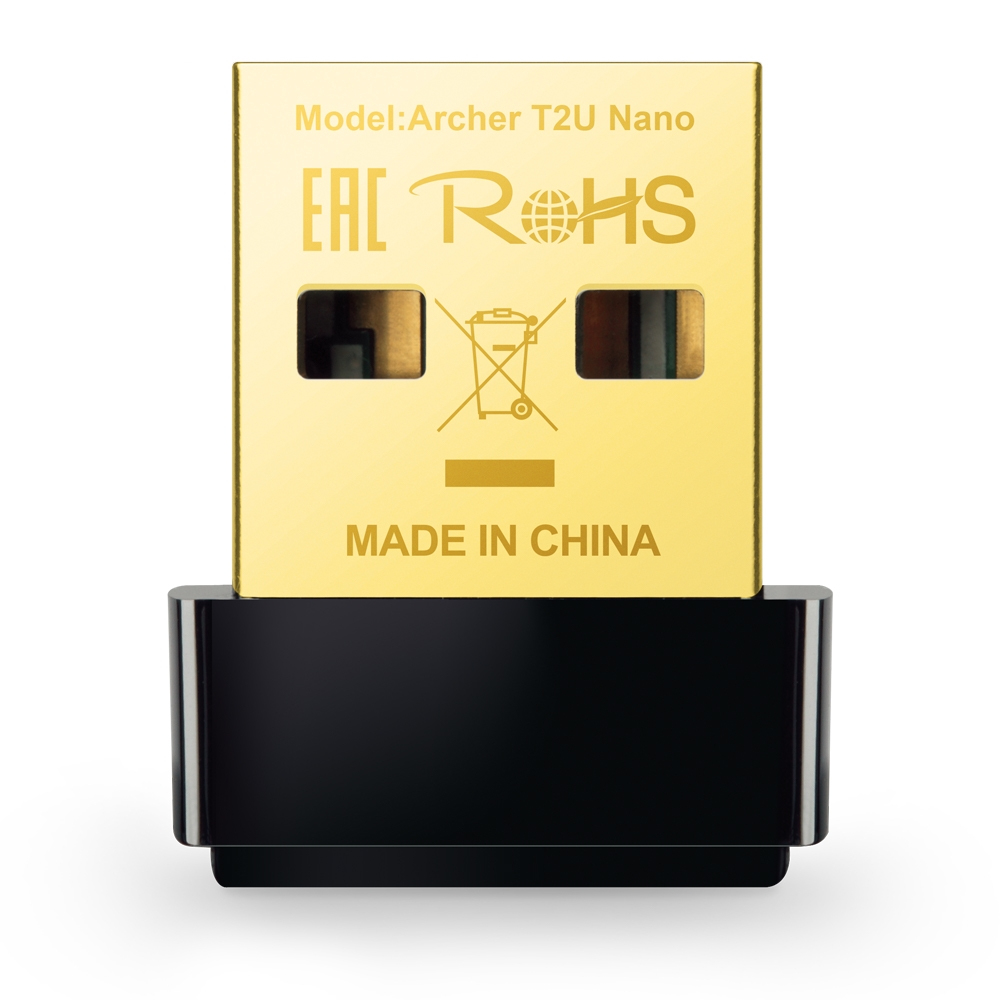

AC600 Nano Wireless USB Adapter
Archer T2U Nano
High-Speed Dual Band Adapter for Better Connections
The Archer T2U Nano receives WiFi signals on two separate bands. 256QAM technology increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps for 33% faster performance. 433 Mbps on 5 GHz is perfect for HD video streaming and lag-free online gaming, while 200 Mbps on 2.4 GHz is perfect for web surfing with legacy devices.
Miniature Design -
Plug it in and forget it
With its miniature size and sleek design, users can insert the nano adapter into any USB port and leave it in there, making it perfect for home or travel use
WiFi Roaming
Some public WiFi networks require you to go through the hassle of constantly selecting and connecting to different networks as you move around.
Connect automatically to the nearest WiFi network with the Archer T2U Nano’s WiFi Roaming for an uninterrupted network no matter where you go.
Products specifications
| Width | 15 mm |
| Depth | 7.1 mm |
| Height | 18.6 mm |
| Harmonized System (HS) code | 85176990 |
| Package width | 138 mm |
| Package depth | 128 mm |
| Package height | 30 mm |
| Package weight | 90 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| USB powered | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | WLAN |
| USB version | 2.0 |
| Maximum data transfer rate | 433 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,150,200,433 Mbit/s |
| Modulation | 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK |
| Component for | PC/Laptop |
| Product colour | Black |
| Internal | No |
| Antenna | Yes |
| Antenna design | Internal |
| Antenna direction type | Omni-directional |
| Transmitting power (CE) | 20 dBm |
| Transmitting power (FCC) | 20 dBm |
| Operating modes | Infrastructure mode |
| Resource CD | Yes |
| Quick installation guide | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows XP |
| Mac operating systems supported | macOS |
| Sustainability compliance | Yes |
