Stay Fast with WiFi 6 Even in a Crowded Network

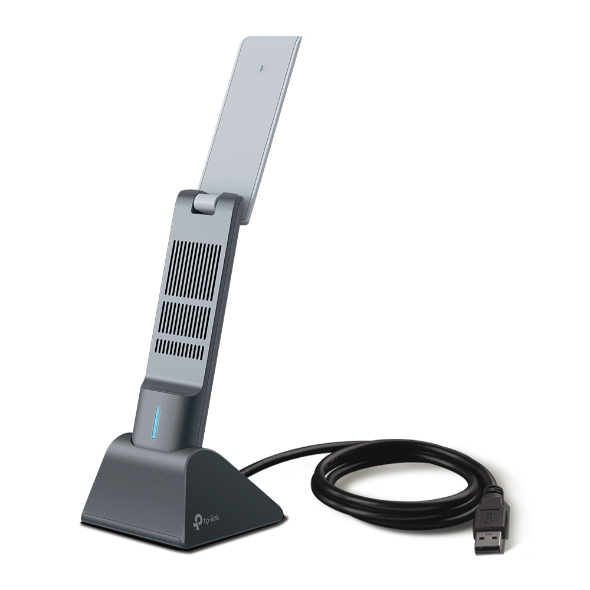

AX1800 High Gain Wireless USB Adapter
Upgrades Your PC with Wi-Fi 6
Forget about buying a new PC. TX20UH delivers powerful dual band WiFi 6 straight to your device for exceptional connectivity and speed up to 1800 Mbps.
Greater Coverage and Stability
The multi-angle adjustable high-gain antennas combine with Beamforming to concentrate WiFi signals towards your router for better reception and reliable connections from far away.
Lower Latency, Higher Efficiency, and Less Congestion
MU-MIMO
Experience flawless streams, gameplay, and uploads while your network simultaneously processes bandwidth for multiple devices.
OFDMA
Working with a compatible router, your PC receives data at the same time as other devices on the same stream. This means next-to-nothing lag for video and games.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer TX20UH ideal for HD streaming, online gaming and large file downloads.
Easy Use with a Flexible Design
A1.2-meter USB 3.0 cable makes it easy to find a spot for the Archer TX20UH in your workspace, and the adapter can be effortlessly attached removed from your computer as needed.
Products specifications
| Width | 30.5 mm |
| Depth | 14.8 mm |
| Height | 111.7 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | WLAN |
| Maximum data transfer rate | 1201 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms | WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Component for | PC |
| Internal | No |
| Antenna | Yes |
| LED indicators | Status |
| Windows operating systems supported | Windows 10, Windows 11 |
