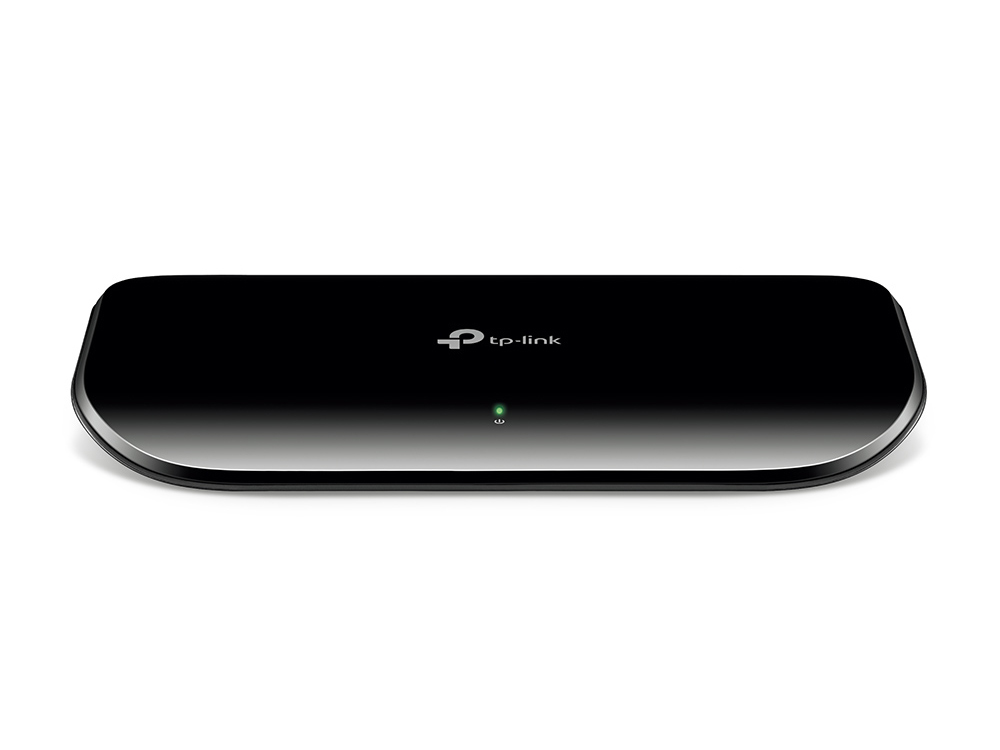

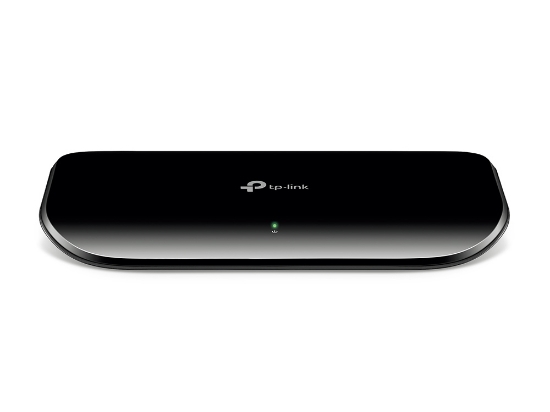

TP-Link 8-Port Gigabit Desktop Network Switch

TP-Link 8-Port Gigabit Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. DC input voltage: 9 V. Power connector: DC-in jack. Wall mountable
Manufacturer: TP-Link
SKU: TL-SG1008D
Vendor: Aspects
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€19.90 incl tax
Lowest price in the last 30 days: $19.90
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save up to 80%* of the power consumption, making it an eco-friendly solution for your home or office network.

Gigabit Switch
Featured with 8 10/100/1000Mbps ports, TL-SG1008D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.

Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1008D 8-Port Gigabit Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1008D can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 80% reduction in power use.

Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Products specifications
Weight & dimensions
Width180 mm
Depth90 mm
Height25.5 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
AC adapter includedYes
Package typeBox
Package width110 mm
Package depth185 mm
Package height85 mm
Package weight300 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation15.8 BTU/h
Power
Power sourceDC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
DC input voltage9 V
Input current0.6 A
Power consumption (max)3.53 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,480,800,1000 Mbit/s
Auto-negotiationYes
Data transmission
Switching capacity16 Gbit/s
MAC address table4000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory2 MB
Design
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Wall mountableYes
Performance
Maximum cable length100 m
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedAC
User guideYes
Sustainability
Sustainability complianceYes
*
*
*
Products specifications
Weight & dimensions
Width180 mm
Depth90 mm
Height25.5 mm
Logistics data
Harmonized System (HS) code85176990
Packaging data
AC adapter includedYes
Package typeBox
Package width110 mm
Package depth185 mm
Package height85 mm
Package weight300 g
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Heat dissipation15.8 BTU/h
Power
Power sourceDC
Power supply includedYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
DC input voltage9 V
Input current0.6 A
Power consumption (max)3.53 W
Certificates
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity8
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supportedCat3, Cat4, Cat5, Cat5e
Flow control supportYes
Auto MDI/MDI-XYes
Ethernet LAN data rates10,100,480,800,1000 Mbit/s
Auto-negotiationYes
Data transmission
Switching capacity16 Gbit/s
MAC address table4000 entries
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames15000
Packet buffer memory2 MB
Design
Rack mountingNo
StackableNo
Product colourBlack
LED indicatorsYes
Wall mountableYes
Performance
Maximum cable length100 m
FanlessYes
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Packaging content
Cables includedAC
User guideYes
Sustainability
Sustainability complianceYes
