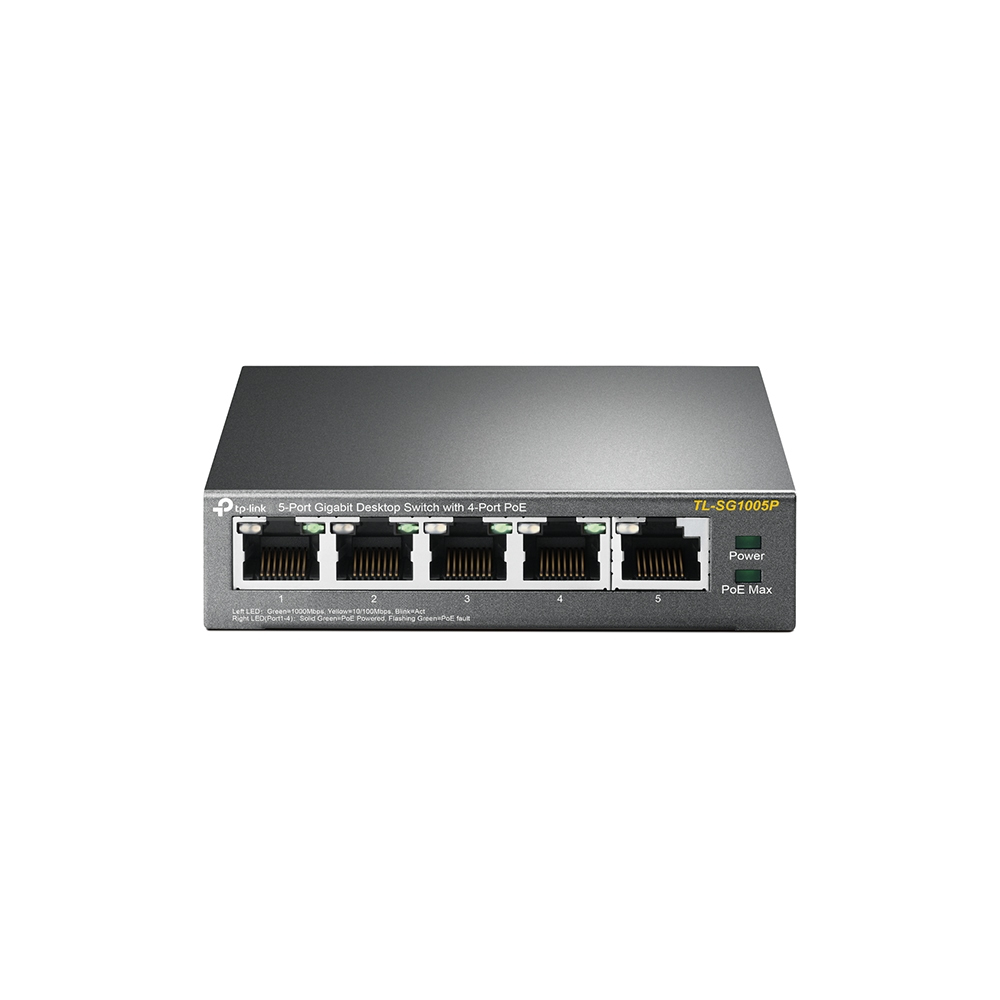

Picture of TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port

Name: TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port
SKU: TL-SG1005P
Price: 38.29 EUR
Availability: InStock

Be the first to review this product

TP-Link 5-Port Gigabit Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 V. Power over Ethernet (PoE)

Manufacturer: TP-Link

SKU: TL-SG1005P

Vendor: Aspects

PoE Switches for Your Ultra Convenience
5-Port Gigabit Desktop Switch with 4-Port PoE

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

✔ Legal warranty via the seller
✔ 30 days to change your mind — free returns
✔ Free delivery from €25

€38.29 incl tax

Lowest price in the last 30 days: $38.29

increase decrease

Overview
Specifications
Contact Us

Products specifications

Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Logistics data
Harmonized System (HS) code	85176990
Packaging data
AC adapter included	Yes
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	800 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	219.87 BTU/h
Power
Power source	DC/PoE
Power supply included	Yes
DC input voltage	48 V
Input current	1.25 A
Power consumption (max)	64.44 W
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Performance
Maximum cable length	100 m
Fanless	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	56 W
Packaging content
User guide	Yes
Sustainability
Sustainability compliance	Yes
Security
IGMP snooping	Yes

Your name *

Your email *

Enquiry *

Products specifications

Weight & dimensions
Width	99.8 mm
Depth	98 mm
Height	25 mm
Logistics data
Harmonized System (HS) code	85176990
Packaging data
AC adapter included	Yes
Package type	Box
Package width	131 mm
Package depth	196 mm
Package height	121 mm
Package weight	800 g
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	219.87 BTU/h
Power
Power source	DC/PoE
Power supply included	Yes
DC input voltage	48 V
Input current	1.25 A
Power consumption (max)	64.44 W
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	5
Network
Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x
10G support	No
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Flow control support	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
MAC address auto-learning supported	Yes
MAC address auto-aging supported	Yes
Data transmission
Switching capacity	10 Gbit/s
Forwarding rate	7.44 Mpps
MAC address table	2000 entries
Store-and-forward	Yes
Design
Rack mounting	No
Stackable	No
Product colour	Black
LED indicators	Yes
Performance
Maximum cable length	100 m
Fanless	Yes
Power over Ethernet (PoE)
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) ports quantity	4
Total Power over Ethernet (PoE) budget	56 W
Packaging content
User guide	Yes
Sustainability
Sustainability compliance	Yes
Security
IGMP snooping	Yes
