Extend and distribute a VGA signal and the accompanying audio to a remote display over Cat5 cable

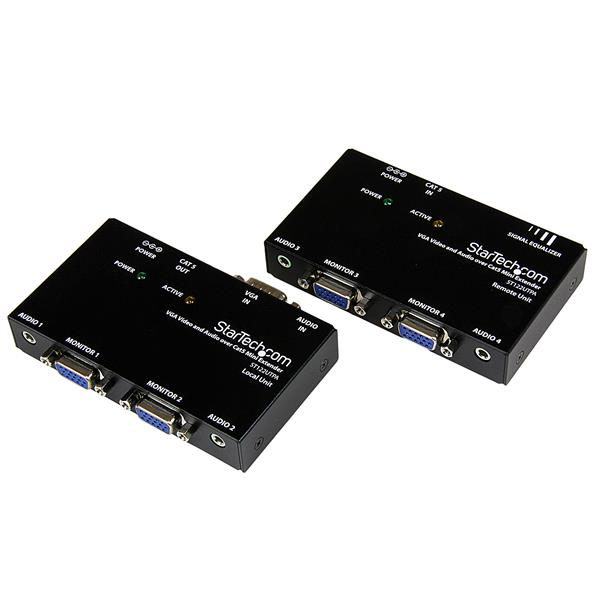

The ST122UTPAEU VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft. The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that''s perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPAEU receiver to install onto walls, desks or cabinets for a tidy setup. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Cat5 extension design allows you to make use of existing Cat 5 or better wiring infrastructure
- Included mounting brackets for mounting onto a wall, desk or cabinet, for a clean and manageable solution
- Extends the connection distance of VGA displays by up to 500 feet (150 meters) offering flexibility in the placement of your equipment
Products specifications
| Product colour | Black |
| Maximum resolution | 1024 x 768 pixels |
| Maximum operating distance | 150 m |
| Certification | CE, FCC, RoSH |
| Harmonized System (HS) code | 85176990 |
| Package width | 92 mm |
| Package height | 188 mm |
| Video port type | VGA |
| Video out | 2x VGA |
| Video ports quantity | 2 |
| Connector(s) | 2 x DB15 HD F, 1 x- RJ45 F, 2 x 3.5 mm Stereo F |
