Sorry - this product is no longer available

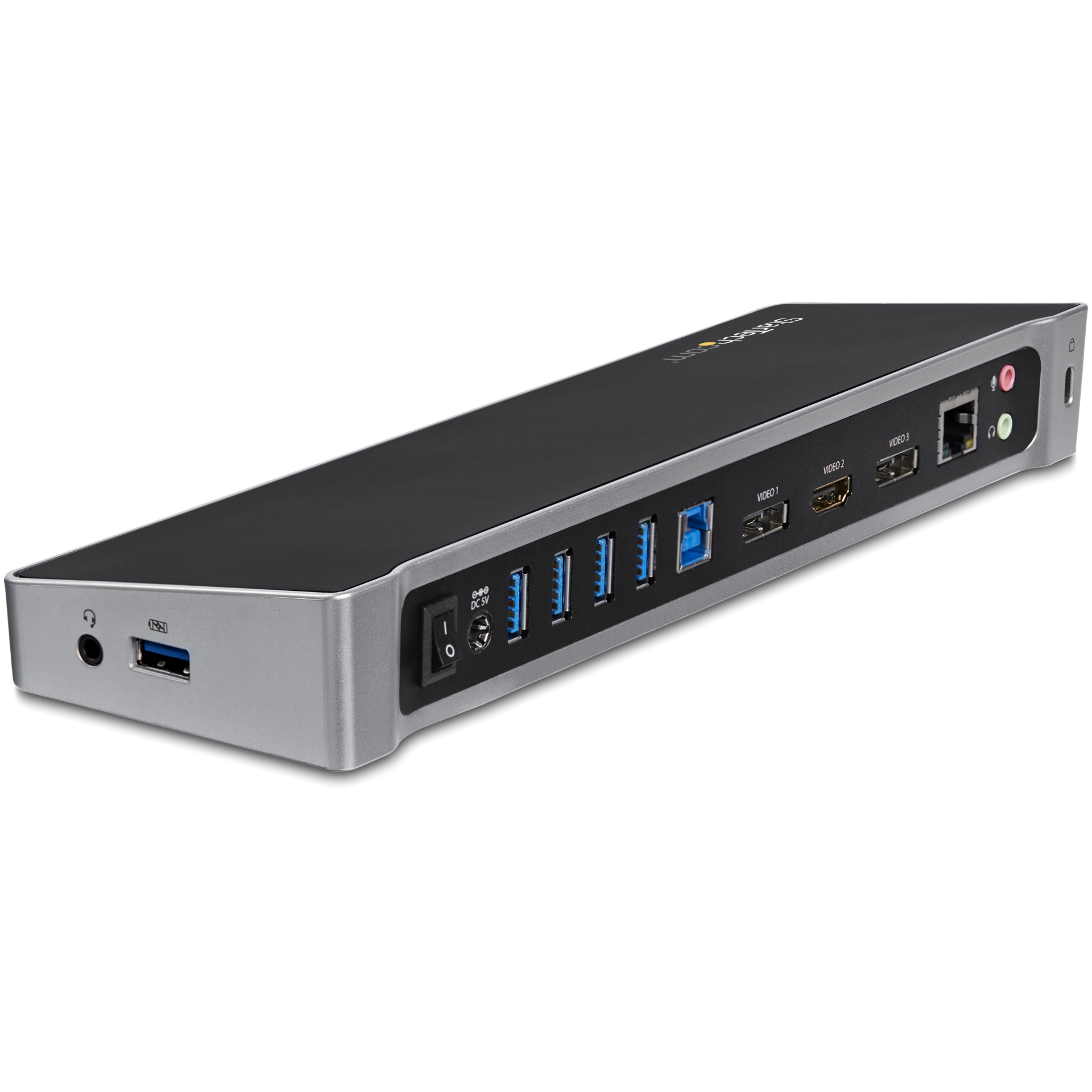

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort

StarTech.com Triple-Monitor USB 3.0 Docking Station - 1x HDMI - 2x DisplayPort. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 100-240 V, Input current: 1.5 A, Output voltage: 5 V. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura, Other operating systems supported: ChromeOS
Manufacturer: StarTech
SKU: USB3DOCKH2DP
Vendor: Aspects
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
  • Legal warranty via the seller
  • 30 days to change your mind — free returns
  • Free delivery from €25
€120.54 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Port Replicator | Mac & Windows® | 4K DP | 5 USB ports | TAA Compliant

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Triple Display Flexibility

The USB 3.0 docking station adds triple-monitor support to your workstation, with resolution support up to 4K (3840 x 2160p) on one display and 2048x1152 on the other two. With more screens, combined with high resolution, the dock maximizes your screen real estate so you can simultaneously access multiple applications and compose on one display while referencing material on the other. You can also use your laptop screen for four displays in total, making it easy to manage several programs at once and avoid the nuisance of minimizing or rearranging windows.

Powerful Connections and Fast Device Charging

To support all of your USB peripherals, the docking station provides five USB 3.0 ports. The side-facing USB port is a USB fast-charge port (USB Battery Charging Specification 1.2), so you can charge your mobile devices faster than from standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need to stay productive.

The TAA compliant USB3DOCKH2DP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Weight & dimensions
Width82 mm
Depth270 mm
Height34 mm
Weight376 g
Other features
ChipsetDisplayLink - DL-5910, VLI - VL812
Number of microphone inputs1
USB data transfer rates5000 Mbit/s
Logistics data
Products per master (outer) case10 pc(s)
Master (outer) case width363 mm
Master (outer) case length373 mm
Master (outer) case height395 mm
Harmonized System (HS) code84733020
Packaging data
Package width296 mm
Package depth164 mm
Package height71 mm
Package weight1.03 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)0 - 90%
Power
AC input voltage100-240 V
Input current1.5 A
Output voltage5 V
Output current6.5 A
Power consumption (typical)32.5 W
Power plug typeType N
Compatible power plug typesAU, EU, UK, US
Technical details
Compliance certificatesRoHS
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portYes
Headphone outputs2
Headphone connectivity3.5 mm
USB connector typeUSB Type-A
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Cable lock slotYes
Product colourBlack, Silver
LED indicatorsActivity, Link
UASP supportYes
Housing materialPlastic
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink, TAA, REACH
Packaging content
Cables includedUSB
AC adapter includedYes
ManualYes
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
*
*
*
Products specifications
Weight & dimensions
Width82 mm
Depth270 mm
Height34 mm
Weight376 g
Other features
ChipsetDisplayLink - DL-5910, VLI - VL812
Number of microphone inputs1
USB data transfer rates5000 Mbit/s
Logistics data
Products per master (outer) case10 pc(s)
Master (outer) case width363 mm
Master (outer) case length373 mm
Master (outer) case height395 mm
Harmonized System (HS) code84733020
Packaging data
Package width296 mm
Package depth164 mm
Package height71 mm
Package weight1.03 kg
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)0 - 90%
Power
AC input voltage100-240 V
Input current1.5 A
Output voltage5 V
Output current6.5 A
Power consumption (typical)32.5 W
Power plug typeType N
Compatible power plug typesAU, EU, UK, US
Technical details
Compliance certificatesRoHS
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portYes
Headphone outputs2
Headphone connectivity3.5 mm
USB connector typeUSB Type-A
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Wake-on-LAN readyYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5 Gbit/s
Maximum digital resolution3840 x 2160 pixels
Cable lock slotYes
Product colourBlack, Silver
LED indicatorsActivity, Link
UASP supportYes
Housing materialPlastic
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink, TAA, REACH
Packaging content
Cables includedUSB
AC adapter includedYes
ManualYes
Software
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
