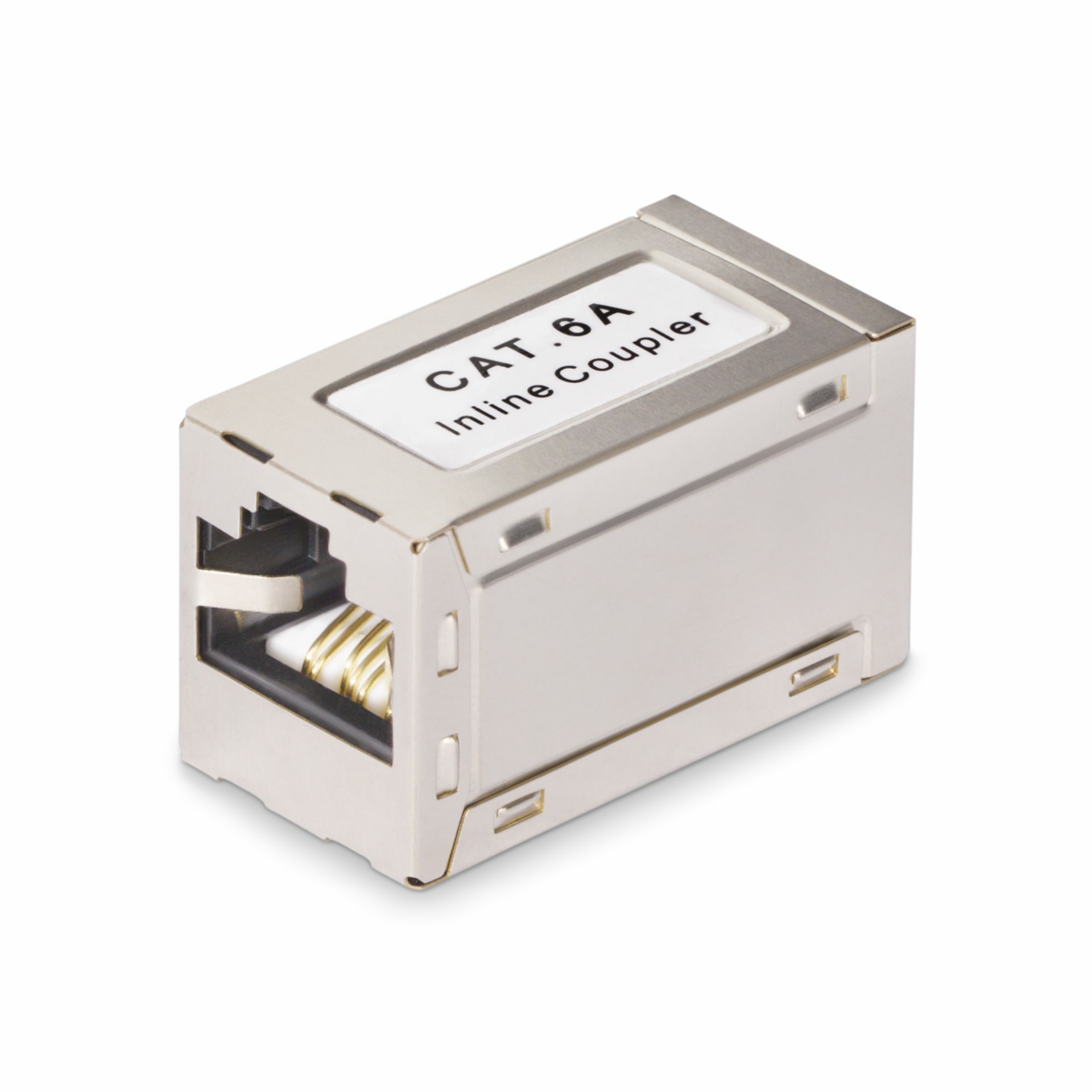

Join two shielded RJ45 Cat6a cables using this Inline Coupler
Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.
Wide Compatibility
The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.
Durable Construction
The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.
The StarTech.com Advantage
Products specifications
| Width | 16 mm |
| Depth | 31 mm |
| Height | 20 mm |
| Package width | 125 mm |
| Package depth | 90 mm |
| Package height | 2 mm |
| Package weight | 10 g |
| Operating temperature (T-T) | -20 - 65 °C |
| Storage temperature (T-T) | -25 - 75 °C |
| Relative humidity | 30 - 70% |
| Compliance certificates | CE |
| Certification | TIA/EIA-T568B |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Female |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| Product colour | Silver |
| Housing material | Acrylonitrile butadiene styrene (ABS), Metal |
| Data transfer rate | 10 Gbit/s |
| Sustainability compliance | Yes |
