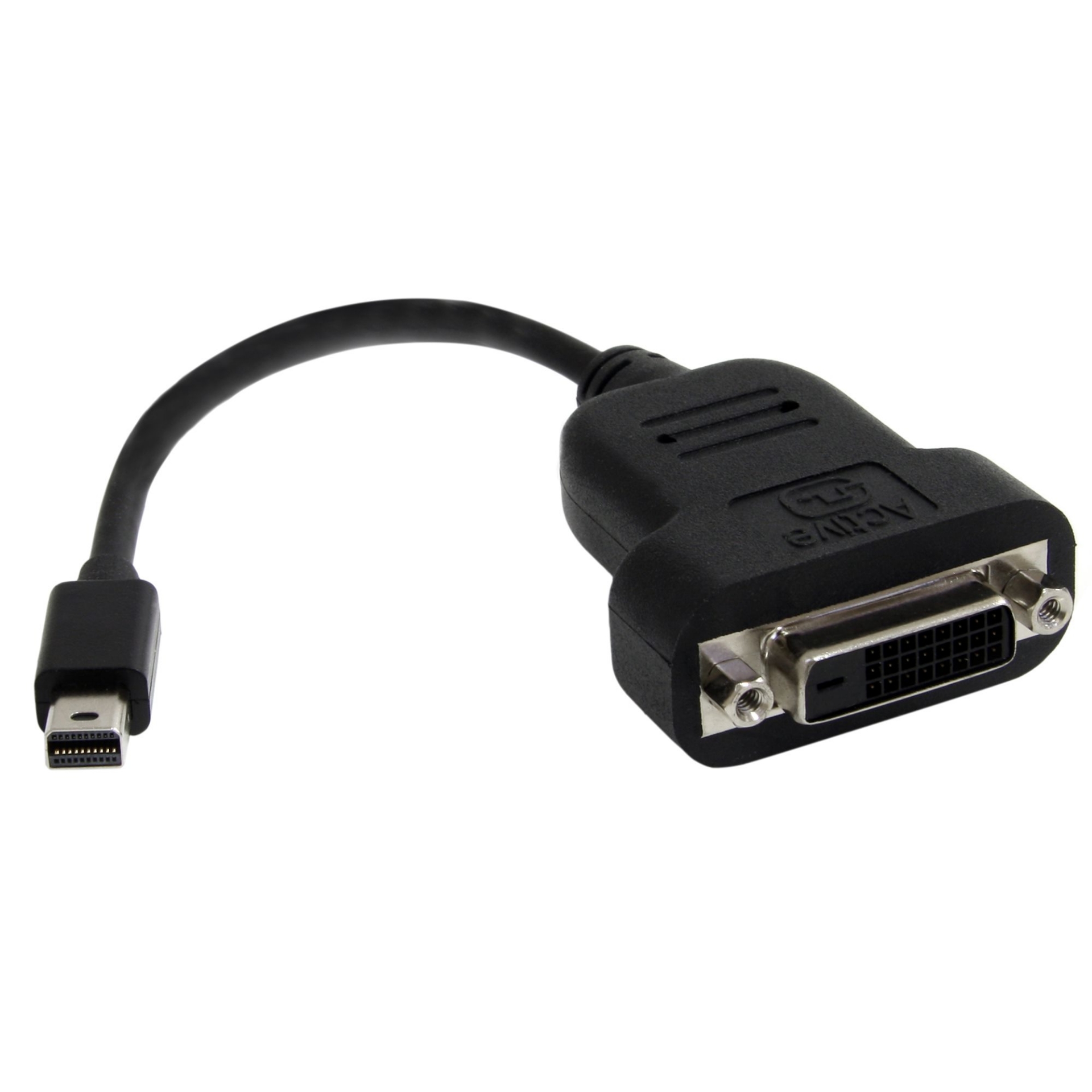

StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link

Be the first to review this product
StarTech.com Mini DisplayPort to DVI Adapter - Active Mini DisplayPort to DVI-D Adapter Converter - 1080p Video - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor Dongle, mDP to DVI Single-Link. Cable length: 0.12 m, Connector 1: Mini DisplayPort, Connector 2: DVI-D. Compliance certificates: CE, RoHS. Weight: 38 g, Width: 44 mm, Depth: 200 mm. Package width: 200 mm, Package depth: 220 mm, Package height: 19 mm. Quantity per pack: 1 pc(s)
Manufacturer: StarTech
SKU: MDP2DVIS
Vendor: Aspects
Connect a DVI monitor to a single-mode DisplayPort output from your computer

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€26.32 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Connect a DVI monitor to a single-mode DisplayPort output from your computer

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

The StarTech.com Advantage
Products specifications
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Cable length0.12 m
Connector 1Mini DisplayPort
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderFemale
HDCPYes
HDCP version1.3
DisplayPort version1.2
Dual Link DVINo
Maximum resolution1920 x 1200 pixels
Maximum refresh rate60 Hz
Product colourBlack
Jacket materialLow smoke zero halogen (LSZH)
Plug and PlayYes
Converter typeActive video converter
Weight & dimensions
Weight38 g
Width44 mm
Depth200 mm
Height20 mm
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width495 mm
Master (outer) case length339 mm
Master (outer) case height220 mm
Products per master (outer) case90 pc(s)
Packaging data
Package width200 mm
Package depth220 mm
Package height19 mm
Package weight47 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 70 °C
Certificates
Compliance certificatesCE, RoHS
Packaging content
Quantity per pack1 pc(s)
*
*
*
Products specifications
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Cable length0.12 m
Connector 1Mini DisplayPort
Connector 2DVI-D
Connector 1 genderMale
Connector 2 genderFemale
HDCPYes
HDCP version1.3
DisplayPort version1.2
Dual Link DVINo
Maximum resolution1920 x 1200 pixels
Maximum refresh rate60 Hz
Product colourBlack
Jacket materialLow smoke zero halogen (LSZH)
Plug and PlayYes
Converter typeActive video converter
Weight & dimensions
Weight38 g
Width44 mm
Depth200 mm
Height20 mm
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width495 mm
Master (outer) case length339 mm
Master (outer) case height220 mm
Products per master (outer) case90 pc(s)
Packaging data
Package width200 mm
Package depth220 mm
Package height19 mm
Package weight47 g
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)0 - 70 °C
Certificates
Compliance certificatesCE, RoHS
Packaging content
Quantity per pack1 pc(s)
