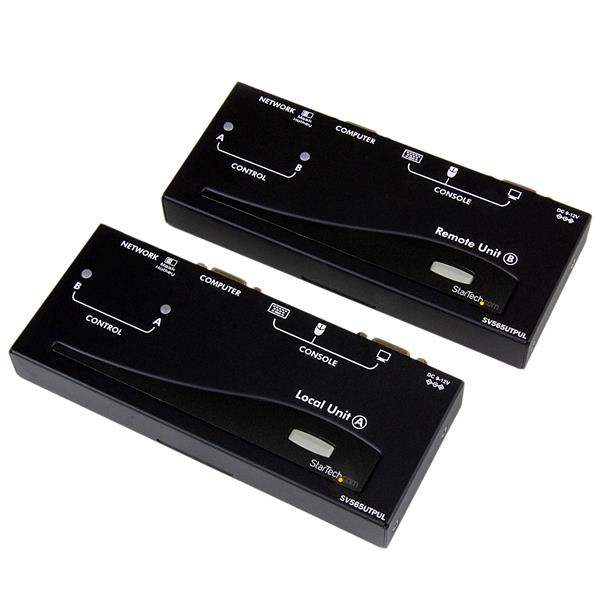

The SV565UTPUL Long Range USB VGA KVM Console Extender over Cat5 UTP (1000 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 1000ft (300m) away.
You can use your existing USB keyboard, USB mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Great for high definition resolutions, with support of UXGA (1600 x 1200) and WUXGA (1920 x 1200)
- Remote to local switching means that the computer or console being extended can still be accessed locally without the need to unplug/replug any connections
- Backed by a StarTech.com 3 year hardware warranty and lifetime technical support
Products specifications
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Rack mounting | No |
| Maximum analog resolution | 1920 x 1200 pixels |
| KVM port selection | Hotkeys, Push-buttons |
| Product colour | Black |
| Plug and Play | Yes |
| Transmitter width | 15.7 cm |
| Transmitter depth | 7 cm |
| Transmitter height | 2 cm |
| Transmitter weight | 1.5 kg |
| Receiver width | 15.7 cm |
| Receiver depth | 7 cm |
| Receiver height | 2 cm |
| Receiver weight | 1.5 kg |
| Harmonized System (HS) code | 84733080 |
| Package width | 197 mm |
| Package depth | 294 mm |
| Package height | 72 mm |
| Package weight | 1.37 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| AC input voltage | 110-240 V |
| AC adapter output voltage | 12 V |
| AC adapter output current | 1.5 A |
| Maximum resolution | 1920 x 1200 pixels |
| Power requirements | 230 AC |
| Weight | 1.5 kg |
| Cables included | KVM, USB, VGA |
| Manual | Yes |
| Transmitter video port type | VGA |
| Transmitter local keyboard/mouse port type | USB |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
