Sorry - this product is no longer available

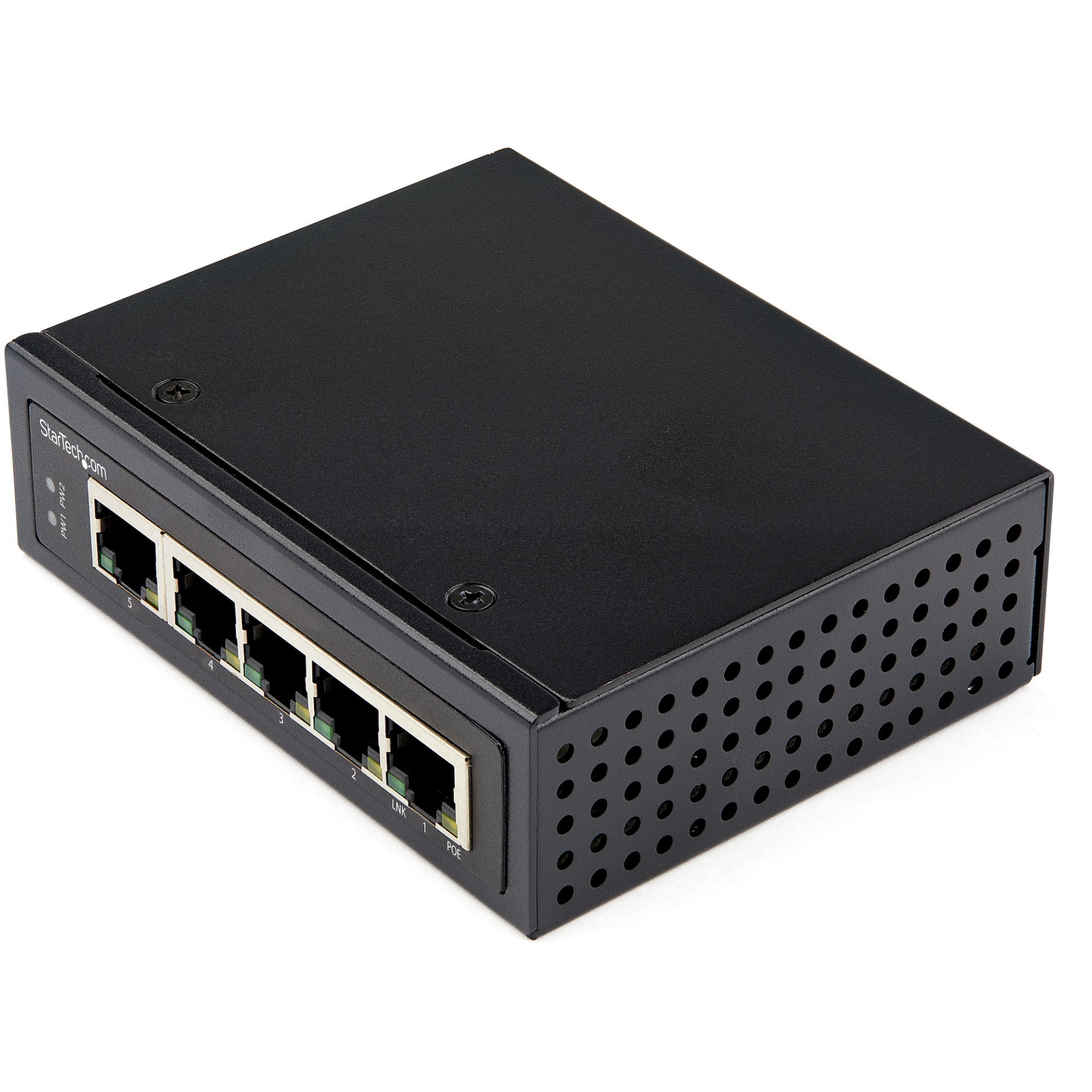

StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C

Be the first to review this product
StarTech.com Industrial 5 Port Gigabit PoE Switch - 30W - Power Over Ethernet Switch - Hardened GbE PoE+ Unmanaged Switch - Rugged High Power Gigabit Network Switch IP-30/-40 C to 75 C. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex, Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
Manufacturer: StarTech
SKU: IESC1G50UP
Vendor: Aspects
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

Cameras

Sensors

Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

Operating Temperature Range: -40 C to 75 C

IP-30 rated housing

Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

The StarTech.com Advantage

- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€251.15 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Rugged PoE Switch | 30 Watts | IP-30 Aluminum Housing | Unmanaged | 5 Port

This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

Cameras

Sensors

Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

Operating Temperature Range: -40 C to 75 C

IP-30 rated housing

Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability.

A Flexible & Easy-to-Deploy Solution

Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution.

The StarTech.com Advantage

- POWER OVER ETHERNET: Gigabit PoE Switch provides up to 30W of PSE power per PoE port to IEEE 802.3af (PoE) & IEEE 802.3at (PoE+)
- Use with devices like cameras & access points using Cat 5e/6
- FLEXIBLE POWER INPUT: Power over Ethernet network switch can be hardwired using terminal block (48-56VDC) power or powered using a standard (48-56VDC) Type-N barrel wall adapter (not included)
Products specifications
Weight & dimensions
Width81.5 mm
Depth104 mm
Height32 mm
Weight150.6 g
Other features
Terminal block portYes
Logistics data
Master (outer) case width355 mm
Master (outer) case length345 mm
Master (outer) case height225 mm
Harmonized System (HS) code85176990
Products per master (outer) case10 pc(s)
Packaging data
Terminal block includedYes
Package width211 mm
Package depth162 mm
Package height64 mm
Package weight392.6 g
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Power
DC input voltage48 - 56 V
Surge protectionYes
Surge protection voltage2 kV
Power plug typeType N
Certificates
CertificationCE, FCC, RoHS, UL
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
Jumbo frames supportYes
Jumbo frames9000
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
SafetyEN60950-1
Performance
Maximum cable length100 m
Mean time between failures (MTBF)538451 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity5
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget120 W
Packaging content
Quick start guideYes
Protocols
Supported network protocolsCSMA/CD
*
*
*
Products specifications
Weight & dimensions
Width81.5 mm
Depth104 mm
Height32 mm
Weight150.6 g
Other features
Terminal block portYes
Logistics data
Master (outer) case width355 mm
Master (outer) case length345 mm
Master (outer) case height225 mm
Harmonized System (HS) code85176990
Products per master (outer) case10 pc(s)
Packaging data
Terminal block includedYes
Package width211 mm
Package depth162 mm
Package height64 mm
Package weight392.6 g
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Power
DC input voltage48 - 56 V
Surge protectionYes
Surge protection voltage2 kV
Power plug typeType N
Certificates
CertificationCE, FCC, RoHS, UL
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Network
Networking standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G supportNo
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
Jumbo frames supportYes
Jumbo frames9000
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
SafetyEN60950-1
Performance
Maximum cable length100 m
Mean time between failures (MTBF)538451 h
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity5
Power over Ethernet (PoE) power per port30 W
Total Power over Ethernet (PoE) budget120 W
Packaging content
Quick start guideYes
Protocols
Supported network protocolsCSMA/CD
