Connect fiber network devices for high-speed transfers with LSZH rated cable

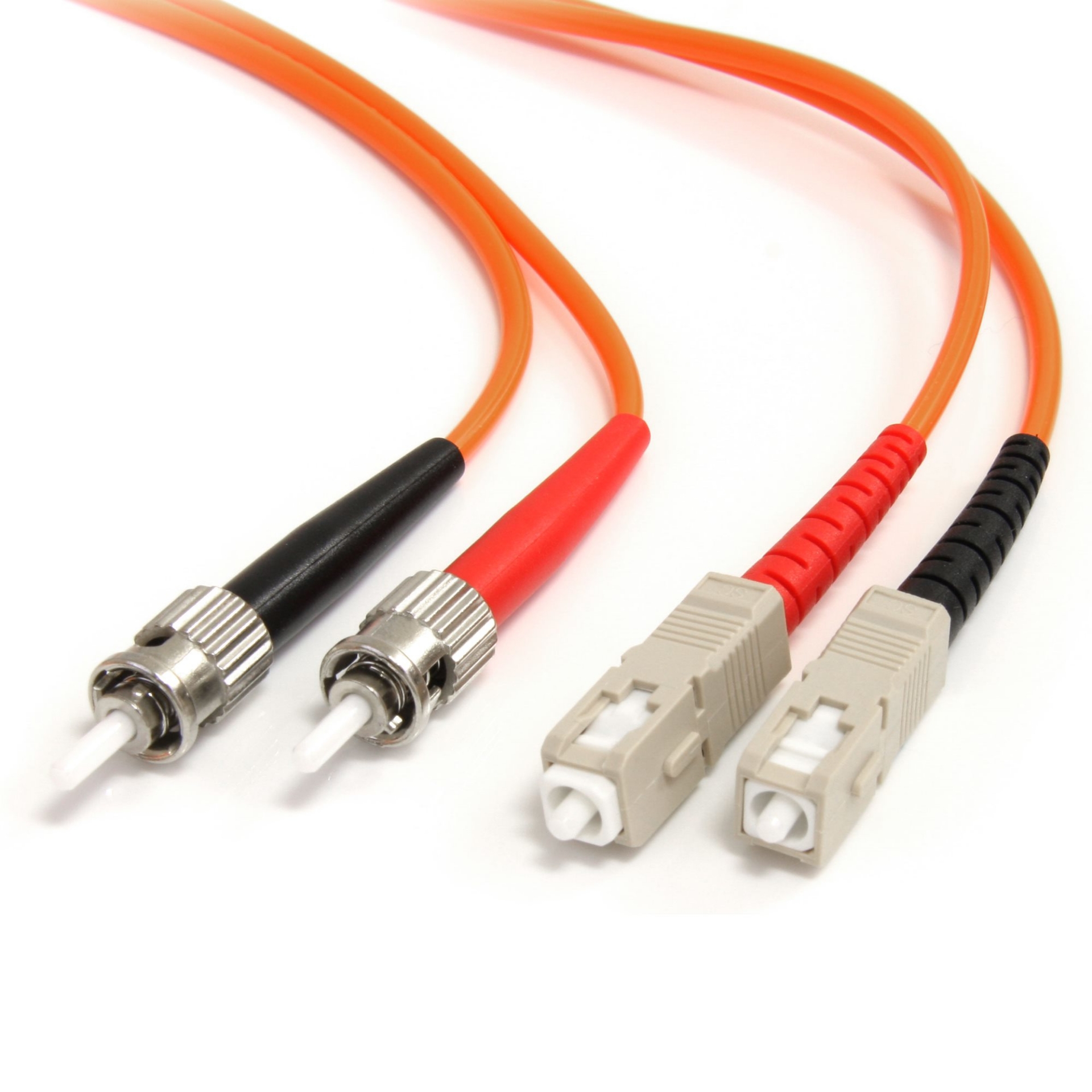

The FIBSTSC2 2-meter (6.6ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one ST (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This ST-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our ST-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
The StarTech.com Advantage
Products specifications
| Cable length | 2 m |
| Fibre optic type | OM1 |
| Connector 1 | ST |
| Connector 2 | SC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Orange |
| Full duplex | Yes |
| Core diameter | 62.5 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 10 Gbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Weight | 42 g |
| Master (outer) case width | 353 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 480 mm |
| Master (outer) case height | 310 mm |
| Products per master (outer) case | 240 pc(s) |
| Package width | 11 mm |
| Package depth | 199 mm |
| Package height | 211 mm |
| Package weight | 50 g |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | RoHS, CE |
