Copy or emulate Extended Display Identification (EDID) data for optimal display settings

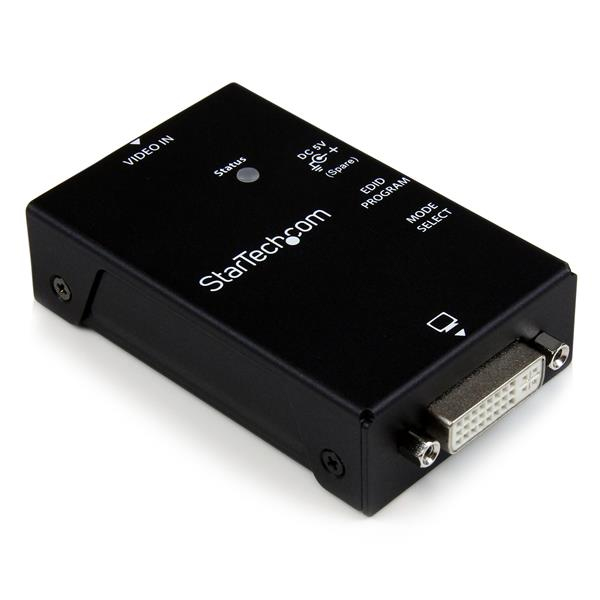

The VSEDIDDVI DVI EDID Emulator enables you to capture and retain Extended Display Identification Data from a monitor, which can then be connected to the video signal source (Video Extender, KVM Switch, etc.) to pass the EDID information and ensure the proper video settings are maintained.
EDID information contains important display settings such as maximum image size, color characteristics, factory pre-set timings, frequency range limits, etc., and since most video extender systems don't offer EDID communication between the source and remote display, the DVI EDID Emulator is a perfect workaround for ensuring the optimum signal is provided to the display to help prolong the life of your displays.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
The StarTech.com Advantage
Products specifications
| Maximum video resolution | 2560 x 1600 pixels |
| Width | 52 mm |
| Depth | 80 mm |
| Height | 22 mm |
| Weight | 123 g |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case length | 432 mm |
| Master (outer) case width | 174 mm |
| Master (outer) case height | 170 mm |
| Package width | 102 mm |
| Package depth | 157 mm |
| Package height | 46 mm |
| Package weight | 243 g |
| Video port type | DVI-I |
| Number of video inputs | 1 |
| Number of video outputs | 1 |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Error, Power |
| Certification | CE, RoHS |
| Cables included | USB |
