Enable improved access to HDMI ports and reduce connector strain from bending

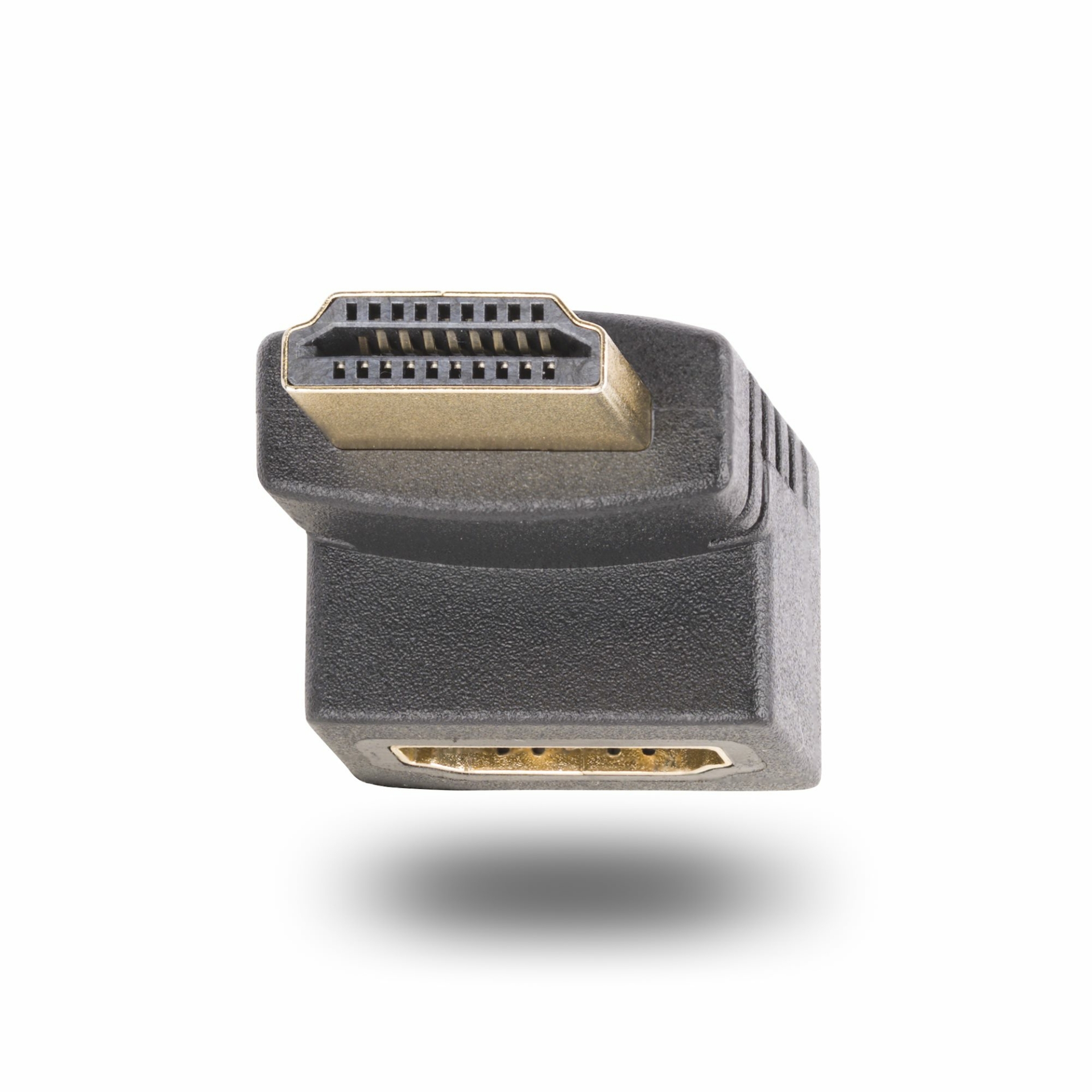

This compact Up-Angled HDMI Adapter acts as a port saver, mitigating strain on HDMI ports and connectors. Ideal for installations with limited depth, it enables access to concealed or rear-facing HDMI ports, and reduces wear and tear resulting from frequent connections.
Full HDMI Capability
This Up Angle HDMI adapter supports all HDMI 2.0 specifications:
• Resolutions up to 4K 60Hz
• High speeds with a bandwidth of up to 18Gbps
• High Dynamic Range (HDR) for higher contrast ratio and vibrant colors
• Crystal clear sound with up to 32 channels of digital audio
• Supports 21:9 cinema aspect ratio and 3D video
• Backward compatible with previous versions of HDMI
• Supports Consumer Electronics Control (CEC)
Enjoy Optimal Picture Quality
Fully compatible with HDMI 2.0 equipment, this HDMI 2.0 Port Saver maintains optimal picture quality at resolutions up to 4K 60Hz and bandwidths up to 18Gbps. Backward compatibility ensures seamless integration with existing HDMI devices.
The StarTech.com Advantage
Products specifications
| Products per master (outer) case | 1000 pc(s) |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 280 mm |
| Master (outer) case height | 220 mm |
| Package width | 90 mm |
| Package depth | 125 mm |
| Package height | 15 mm |
| Package weight | 11 g |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Relative humidity | 10 - 90% |
| Compliance certificates | CE |
| Connector 1 | HDMI |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Angled |
| Connector 2 form factor | Angled |
| Connector contacts plating | Gold |
| Product colour | Black |
| Housing material | Polyvinyl chloride (PVC) |
| Data transfer rate | 18 Gbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum refresh rate | 60 Hz |
| HDCP | Yes |
| Sustainability compliance | Yes |
