Copper QSFP+ Cable | 40 Gbps | Passive DAC | Lifetime Warranty

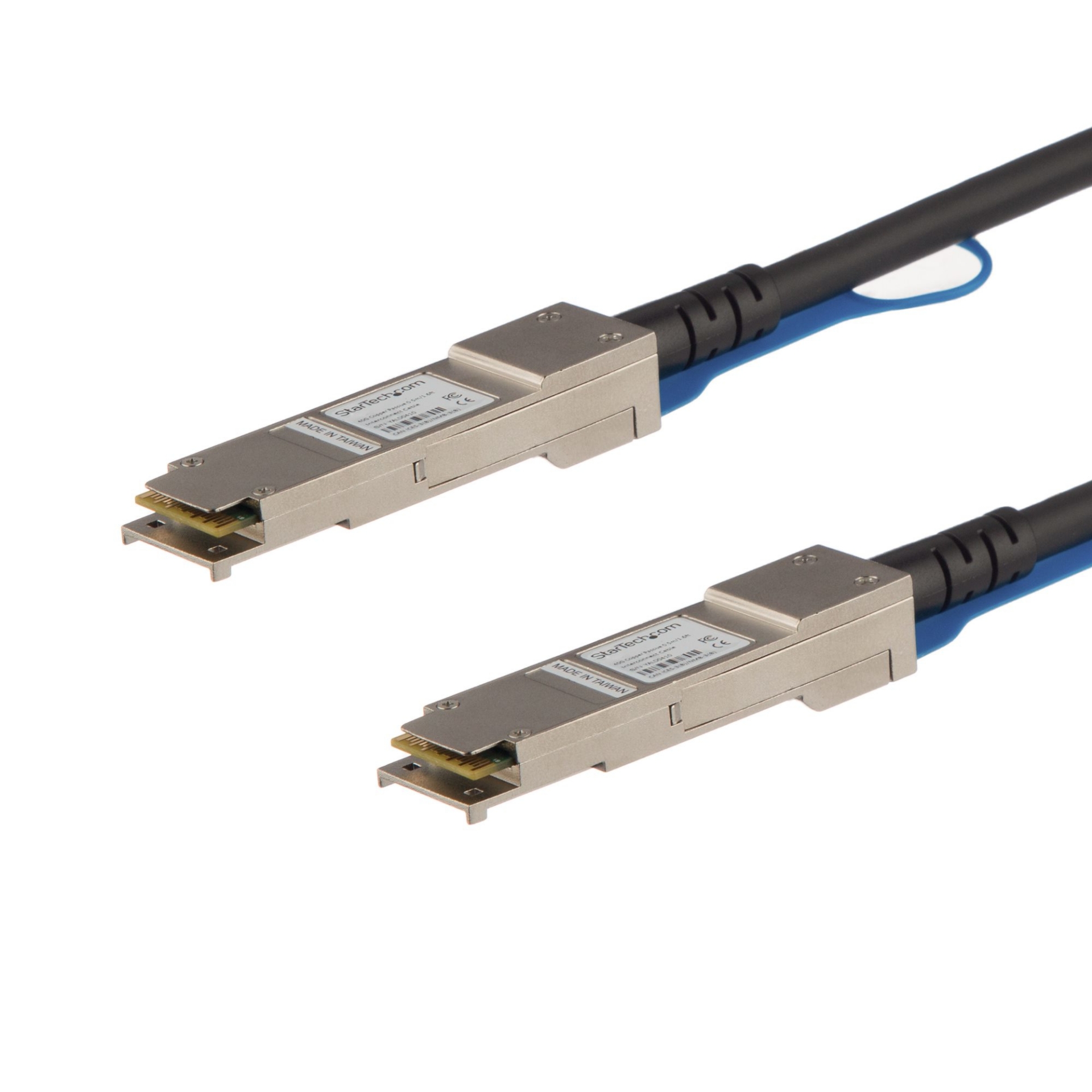

The QSFPH40GCU05 is a Cisco QSFP-H40G-CU0-5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Products specifications
| Cable length | 0.5 m |
| InfiniBand protocol | Yes |
| Connector 1 | QSFP+ |
| Connector 2 | QSFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 40000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
| Weight | 99 g |
| Master (outer) case width | 255 mm |
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 10 pc(s) |
| Package width | 207 mm |
| Package depth | 230 mm |
| Package height | 15 mm |
| Package weight | 101 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Compliance certificates | RoHS |
| Certification | CE, FCC, RoHS |
| Quantity per pack | 1 pc(s) |
